Mô tả sản phẩm

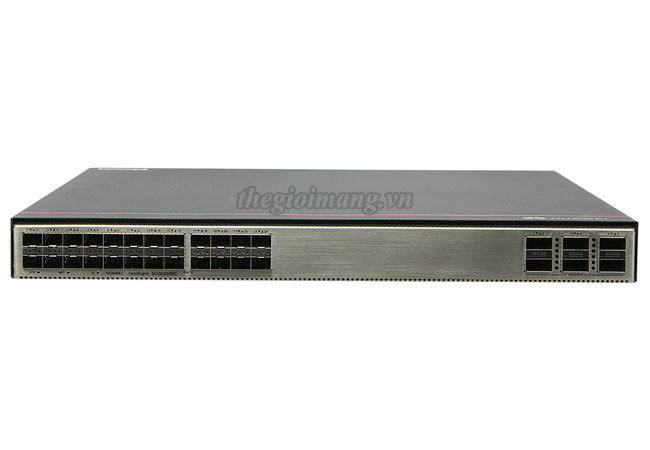

Thiết bị chuyển mạch Switch Huawei CloudEngine S6730-H24X6C-V2

Model	CloudEngine S6730-H24X6C-V2
Fixed port
GE port	• 24
10GE port	• 24
25GE port	-
40GE port	• 6 (40GE and 100GE auto-sensing)
100GE port	• 6
Management port
ETH management port	• Supported
Console port (RJ45)	• Supported
USB port	• USB 2.0
CPU
Frequency	• 1.4 GHz
Cores	• 4
Memory
Memory (RAM)	• 4GB
Flash	• Hardware: 2 GB
Power supply system
Power supply type	• 600 W AC (pluggable) • 1000 W DC (pluggable)
Rated voltage range	• AC input: 100 V AC to 240 V AC, 50/60 Hz • High-Voltage DC input: 240 V DC • DC input: -48 V DC to -60 V DC
Maximum voltage range	• AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz • High-Voltage DC input: 190 V DC to 290 V DC • DC input: -38.4 V DC to -72 V DC
Maximum input current	• AC 600W： 8A • DC 1000W： 30A
Typical power consumption (30% of traffic load, tested according to ATIS standard)	• 149 W
Maximum power consumption (100% throughput, full speed of fans)	• 254 W
Heat dissipation system
Heat dissipation mode	• Air-cooled heat dissipation and intelligent fan speed adjustment
Number of fan modules	• 4, Fan modules are pluggable
Airflow	• Air flows in from the front side and exhausts from the rear panel
Environment parameters
Long-term operating temperature	• 0-1800 m: -5°C to 45°C • 1800-5000 m: The operating temperature decreases 1°C for every 220 m increase in altitude.
Storage temperature	• -40°C to +70°C
Relative humidity	• 5% to 95%, noncondensing
Operating altitude	• 0-5000 m
Noise under normal temperature (sound power)	• < 65 dB(A)
Noise under high temperature (sound power)	• < 88 dB(A)
Noise under normal temperature (sound pressure)	• < 52 dB(A)
Surge protection specification (power port)	• Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode • Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode
Reliability
MTBF (year)	• 62.27
MTTR (hour)	• 2
Availability	• > 0.99999
Physical specifications
Dimensions (H x W x D)	• 43.6 mm x 442.0 mm x 420.0 mm
Chassis height	• 1 U
Chassis weight (full configuration weight, including weight of packaging materials)	• 8.9 kg
