Name: Huawei USG6510F-D-AC
Brand: Huawei
SKU: USG6510F-D-AC
Rating: 5 (12 reviews)

Hỗ trợ trực tuyến

Tư vấn

Hỗ trợ Tư Vấn

0909648899

Kinh doanh

Kinh Doanh 01

0917684899

Kinh Doanh 02

0917993131

Kinh Doanh 03

0915793030

Kinh Doanh 04

0906641689

Kỹ thuật

Hỗ trợ Kỹ Thuật 1

02862578356

Hỗ trợ Kỹ Thuật 2

02862578355

Mô tả sản phẩm

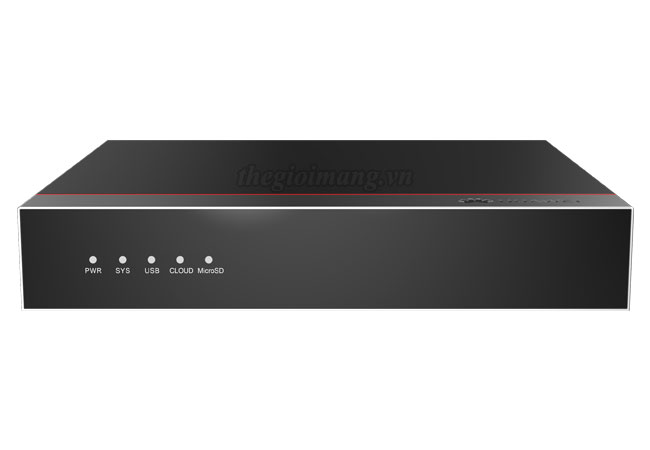

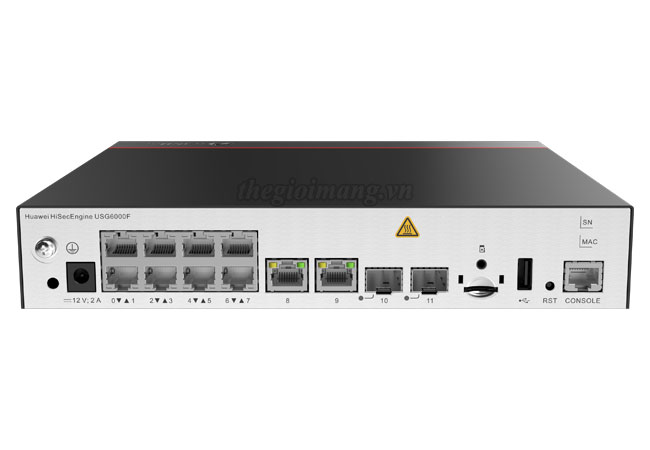

Thiết bị tường lửa Firewall Huawei HiSecEngine USG6510F-D-AC

Model	USG6510F-D
Hardware Specifications
Dimensions (W x D x H) mm	• 250 x 210 x 43.6
Form Factor/Height	• Desktop
Fixed Interface	• 10GE RJ45 + 2GE SFP
USB Port	• 1 x USB 2.0
Weight	• 1.55 kg
External Storage	• Optional, 64 GB microSD card available for purchase
Power Supply	• 100 V to 240 V, 50 Hz/60 Hz
Maximum power consumption of the machine	• 36 W
Power Supplies	• Single power supply
Operating Environment (Temperature/Humidity)	• Temperature: 0°C to 45°C • Humidity: 5% to 95%, non-condensing
Non-operating Environment	• Temperature: –40°C to +70°C • Humidity: 5% to 95%, non-condensing
System Performance and Capacity
IPv4 Firewall Throughput (1518/512/64-byte, UDP)	• 2.5/2.5/2.5 Gbps
IPv6 Firewall Throughput (1518/512/84-byte, UDP)	• 2.5/2.5/2.5 Gbps
Firewall Throughput (Packets Per Second)	• 3.75 Mpps
Firewall Latency (64-byte, UDP)	• 18 us
FW + SA* Throughput	• 1.8 Gbps
NGFW Throughput (HTTP 100K)	• 1.6 Gbps
NGFW Throughput (Enterprise Mix)	• 800 Mbps
Threat Protection Throughput (HTTP 100K)	• 1.3 Gbps
Threat Protection Throughput (Enterprise Mix)	• 700 Mbps
Concurrent Sessions	• 300000
IPv6 Concurrent Sessions	• 200000
New Sessions/Second (HTTP1.1)	• 20000
IPv6 New Sessions/Second (HTTP1.1)	• 8000
IPsec VPN Throughput (AES-256 + SHA256, 1420-byte)	• 2 Gbps
Maximum IPSec VPN Tunnels (GW to GW)	• 1000
Maximum IPsec VPN Tunnels (Client to GW)	• 1000
SSL Inspection Throughput	• 200 Mbps
SSL VPN Throughput	• 200 Mbps
Concurrent SSL VPN Users (Default/Maximum)	• 100/100
Security Policies (Maximum)	• 3000
Virtual Firewalls	• 10
URL Filtering: Categories	• More than 130
URL Filtering: URLs	• A database of over 500 million URLs in the cloud
Automated IPS Signature Updates	• Yes, an industry-leading security center from Huawei
Third-Party and OpenSource Ecosystem	• Open API for integration with third-party products, providing NETCONF interfaces • Other third-party management software based on SNMP, SSH, and Syslog
VLANs (Maximum)	• 4094
VLANIF Interfaces (Maximum)	• 4094
