Firewall Huawei HiSecEngine USG6555F-AC :

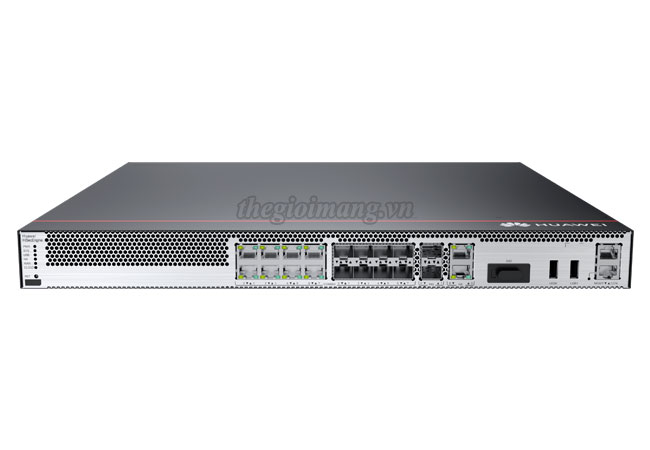

Thiết bị tường lửa Firewall Huawei HiSecEngine USG6555F-AC
| Model | USG6555F |
| Hardware Specifications | |
| Dimensions (W x D x H) mm | • 442 × 420 × 43.6 |
| Form Factor/Height | • 1 U |
| Fixed Interface | • 2*GE RJ45 + 8*GE COMBO + 2*10GE SFP+ |
| USB Port | • 2 x USB 2.0 |
| Weight | • 5.46 kg |
| External Storage | • Optional, M.2 SSD (64 GB/240 GB), hot-swappable |
| Power Supply | • 100 V to 240 V, 50 Hz/60 Hz |
| Maximum power consumption of the machine | • 49.5 W |
| Power Supplies | • Optional dual power modules for 1+1 redundancy |
| Operating Environment (Temperature/Humidity) | • Temperature: 0°C to 45°C • Humidity: 5% to 95%, non-condensing |
| Non-operating Environment | • Temperature: –40°C to +70°C • Humidity: 5% to 95%, non-condensing |
| System Performance and Capacity | |
| IPv4 Firewall Throughput (1518/512/64-byte, UDP) | • 5/5/3.6 Gbps |
| IPv6 Firewall Throughput (1518/512/84-byte, UDP) | • 5/5/3.6 Gbps |
| Firewall Throughput (Packets Per Second) | • 5.4 Mpps |
| Firewall Latency (64-byte, UDP) | • 18 us |
| FW + SA* Throughput2 | • 2.5 Gbps |
| NGFW Throughput (HTTP 100K) | • 2.1 Gbps |
| NGFW Throughput (Enterprise Mix) | • 1.1 Gbps |
| Threat Protection Throughput (HTTP 100K) | • 1.8 Gbps |
| Threat Protection Throughput (Enterprise Mix) | • 1 Gbps |
| Concurrent Sessions | • 4000000 |
| IPv6 Concurrent Sessions | • 3000000 |
| New Sessions/Second (HTTP1.1) | • 80000 |
| IPv6 New Sessions/Second (HTTP1.1) | • 80000 |
| IPsec VPN Throughput1 (AES-256 + SHA256, 1420-byte) | • 3.7 Gbps |
| Maximum IPSec VPN Tunnels (GW to GW) | • 4000 |
| Maximum IPsec VPN Tunnels (Client to GW) | • 4000 |
| SSL Inspection Throughput | • 450 Mbps |
| SSL VPN Throughput | • 500 Mbps |
| Concurrent SSL VPN Users (Default/Maximum) | • 100/2,000 |
| Security Policies (Maximum) | • 15000 |
| Virtual Firewalls | • 100 |
| URL Filtering: Categories | • More than 130 |
| URL Filtering: URLs | • A database of over 500 million URLs in the cloud |
| Automated IPS Signature Updates | • Yes, an industry-leading security center from Huawei |
| Third-Party and Open-Source Ecosystem | • Open API for integration with third-party products, providing NETCONF interfaces • Other third-party management software based on SNMP, SSH, and Syslog |
| VLANs (Maximum) | • 4094 |
| VLANIF Interfaces (Maximum) | • 4094 |
USG6555F-AC : USG6555F AC host (2*GE RJ45 + 8*GE COMBO + 2*10GE SFP+,1 AC power)
