Firewall Huawei HiSecEngine USG6615F-AC :

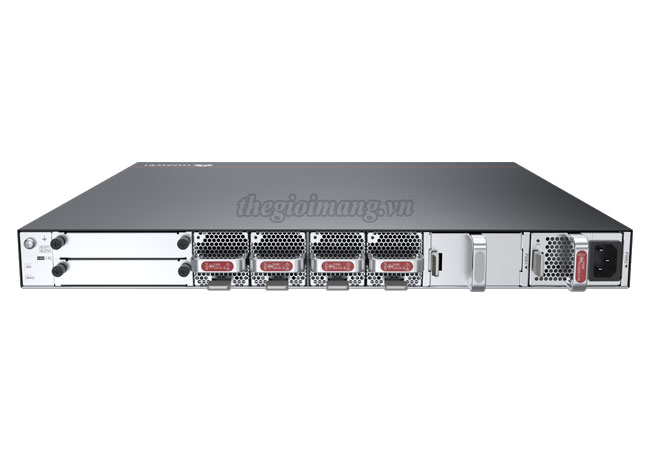

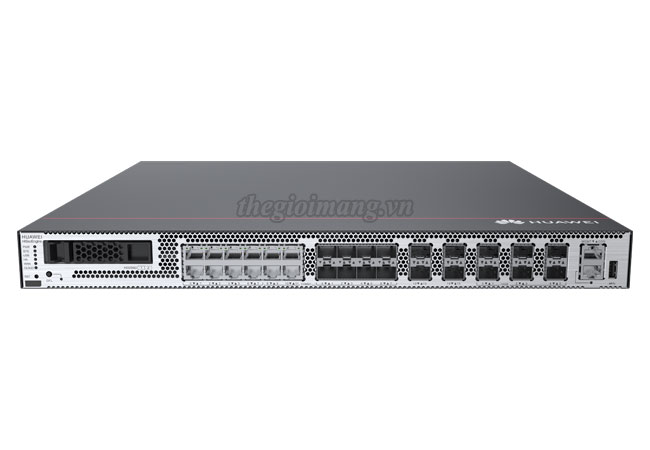

Thiết bị tường lửa Firewall Huawei HiSecEngine USG6615F-AC
Model | USG6615F |
Hardware Specifications | |
Dimensions (H x W x D) mm | • 43.6 x 442 x 420 |
Form Factor/Height | • 1 U |
Fixed Interface | • 8*GE COMBO + 4*GE RJ45 + 4*GE SFP + 6*10GE SFP+ |
USB Port | • 1 x USB 3.0 |
Weight | • 6.3 kg |
External Storage | • Optional, SATA (1 x 2.5 inch) supported, 240GB/480GB/1920GB/960GB/1000GB |
Power Supply | • 100 V to 240 V |
Maximum power consumption of the machine | • 222 W |
Power Supplies | • Optional dual AC power supplies |
Operating Environment (Temperature/Humidity) | • Temperature: 0°C to 45°C • Humidity: 5% to 95%, non-condensing |
Non-operating Environment | • Temperature: –40°C to +70°C • Humidity: 5% to 95%, non-condensing |
System Performance and Capacity | |
IPv4Firewall Throughput (1518/512/64-byte, UDP) | • 15/15/15 Gbps |
IPv6 Firewall Throughput (1518/512/84-byte, UDP) | • 15/15/15 Gbps |
Firewall Latency (64-byte, UDP) | • 18µs |
Concurrent Sessions (HTTP1.1) | • 10,000,000 |
New Sessions/Second (HTTP1.1) | • 250,000 |
FW + SA* Throughput | • 12Gbps |
NGFW Throughput (HTTP 100K) | • 10Gbps |
NGFW Throughput (Enterprise Mix) | • 4.6Gbps |
Threat Protection Throughput (Enterprise Mix) | • 4Gbps |
IPsec VPN Throughput1 (AES-256 + SHA256, 1420-byte) | • 15Gbps |
Maximum IPsec VPN Tunnels | • 15000 |
SSL Inspection Throughput | • 2.5 Gbps |
SSL VPN Throughput | • 1 Gbps |
Concurrent SSL VPN Users *(Default/Maximum) | • 100/4000 |
Security Policies (Maximum) | • 50,000 |
Virtual Firewalls | • 1,000 |
URL Filtering: Categories | • More than 130 |
URL Filtering: URLs | • A database of over 500 million URLs in the cloud |
Automated IPS Signature Updates | • Yes, an industry-leading security center from Huawei |
Third-Party and Open-Source Ecosystem | • Open API for integration with third-party products, providing NETCONF interfaces • Other third-party management software based on SNMP, SSH, and Syslog |
VLANs (Maximum) | • 4094 |
VLANIF Interfaces (Maximum) | • 4094 |
USG6615F-AC : 8*GE COMBO + 4*GE RJ45 + 4*GE SFP + 6*10GE SFP+, 1 AC power supply
Data sheet Huawei HiSecEngine USG6600F&USG6700F Series Firewalls
