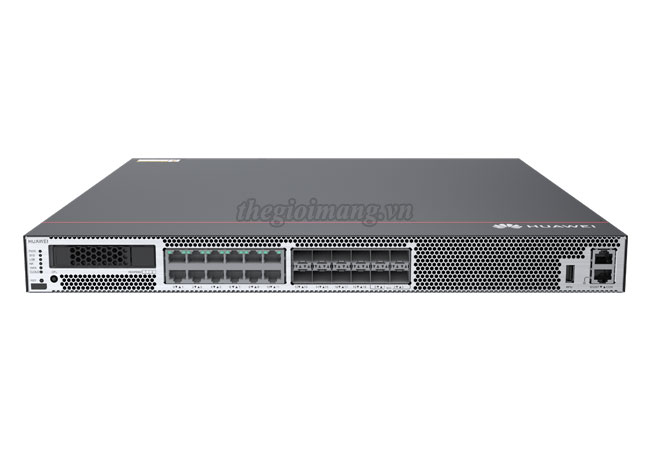

Firewall Huawei HiSecEngine USG6620E-AC : 12×GE (RJ45) + 8GE (SFP) + 4×10GE (SFP+) + 1*USB3.0, AC Power
Thiết bị bảo mật Firewall Huawei HiSecEngine USG6620E-AC
| Model | USG6620E |
| System Performance and Capacity | |
| IPv4 Firewall Throughput (1518/512/64-byte, UDP) | • 20/20/20 Gbit/s |
| IPv6 Firewall Throughput (1518/512/84-byte, UDP) | • 20/20/8 Gbit/s |
| Firewall Throughput (Packet per Second) | • 30 Mpps |
| Firewall Latency (64-byte, UDP) | • 15 µs |
| FW+SA Throughput | • 12 Gbit/s |
| FW+SA+IPS Throughput | • 10 Gbit/s |
| FW+SA+IPS+Antivirus Throughput | • 10 Gbit/s |
| Full protection Throughput | • 7.2 Gbit/s |
| Full protection Throughput (Realworld) | • 4.8 Gbit/s |
| Concurrent Sessions (TCP) | • 8000000 |
| New Sessions/Second (TCP) | • 200000 |
| IPSec VPN Throughput (AES-256+SHA256, 1420-byte) | • 20 Gbit/s |
| Max IPSec VPN Tunnels (GW to GW) | • 15000 |
| Max IPSec VPN Tunnels (Client to GW) | • 15000 |
| SSL Inspection Throughput | • 3 Gbit/s |
| SSL VPN Throughput | • 2 Gbit/s |
| Concurrent SSL VPN Users (Default/Max) | • 100/2000 |
| Firewall Policies (Max) | • 40000 |
| Virtual Firewalls (Max) | • 500 |
| URL Filtering: Categories | • More than 130 |
| URL Filtering: URLs | • Can access a database of over 120 million URLs in the cloud |
| Automated Threat Feed and IPS Signature Updates | • Yes, an industry-leading security center from Huawei (http://sec.huawei.com/sec/web/index.do) |
| Third-Party and Open-Source Ecosystem | • Open API for integration with third-party products, providing RESTful and NetConf interface • Other third-part management software based on SNMP, SSH, Syslog • Co-operation with third-party tools, such as Tufin, Algosec and Firemon • Collaboration with Anti-APT solution |
| Centralized Management | • Centralized configuration, logging, monitoring, and reporting is performed by Huawei eSight |
| High Availability Configurations | • Active/Active, Active/Standby |
| Hardware Specifications | |
| Dimensions (H x W x D) mm | • 44×442×420 |
| Form Factor/Height | • 1U |
| Fixed Interface | • 12×GE (RJ45) + 8GE (SFP) + 4×10GE (SFP+) |
| USB Port | • 1×USB 3.0 Ports |
| Weight (Full Configuration) | • 7.6 kg |
| Local Storage | • Optional, SSD(1*2.5inch) supported, 240G/HDD(1*2.5inch) supported, 1TB |
| Power Supply | • 100V to 240V, 50/60Hz |
| Power Supplies | • Optional dual AC power supplies |
| Operating Environment (Temperature/Humidity) | • Temperature: 0°C to 45°C (without optional HDD); 5°C to 40°C (with optional HDD) • Humidity: 5% to 95% (without optional HDD), non-condensing; 5% to 95% (with optional HDD), non-condensing |
| Non-operating Environment | • Temperature: -40°C to +70°C • Humidity: 5% to 95% (without optional HDD), non-condensing; 5% to 95% (with optional HDD), non-condensing |
| Operating Altitude (maximum) | • 5,000 meters (without optional HDD); 3,000 meters (with optional HDD) |
| Non-operating Altitude (maximum) | • 5,000 meters (without optional HDD); 3,000 meters (with optional HDD) |
| Noise | • Maximum value < 72 dBA |
USG6620E-AC : USG6620E AC Host 12×GE (RJ45) + 8GE (SFP) + 4×10GE (SFP+) + 1*USB3.0, AC Power)
