Firewall Huawei HiSecEngine USG6685F-AC :
Thiết bị tường lửa Firewall Huawei HiSecEngine USG6685F-AC
| Model | USG6685F |
| Hardware Specifications | |
| Dimensions (H x W x D) mm | • 43.6 x 442 x 420 |
| Form Factor/Height | • 1 U |
| Fixed Interface | • 8*GE COMBO + 4*GE(RJ45) + 10*10GE(SFP+) |
| USB Port | • 1 x USB 3.0 |
| Weight | • 7.3 kg |
| External Storage | • Optional, SATA (1 x 2.5 inch) supported, 240GB/480GB/1920GB/960GB/1000GB |
| Power Supply | • 100 V to 240 V |
| Maximum power consumption of the machine | • 222 W |
| Power Supplies | • Dual AC power supplies |
| Operating Environment (Temperature/Humidity) | • Temperature: 0°C to 45°C • Humidity: 5% to 95%, non-condensing |
| Non-operating Environment | • Temperature: –40°C to +70°C • Humidity: 5% to 95%, non-condensing |
| System Performance and Capacity | |
| IPv4Firewall Throughput (1518/512/64-byte, UDP) | • 80/80/40 Gbps |
| IPv6 Firewall Throughput (1518/512/84-byte, UDP) | • 80/80/25 Gbps |
| Firewall Latency (64-byte, UDP) | • 18 µs |
| Concurrent Sessions (HTTP1.1) | • 25,000,000 |
| New Sessions/Second (HTTP1.1) | • 750,000 |
| FW + SA* Throughput | • 25Gbps |
| NGFW Throughput (HTTP 100K) | • 18Gbps |
| NGFW Throughput (Enterprise Mix) | • 8Gbps |
| Threat Protection Throughput (Enterprise Mix) | • 7Gbps |
| IPsec VPN Throughput (AES-256 + SHA256, 1420-byte) | • 30 Gbps |
| Maximum IPsec VPN Tunnels | • 20,000 |
| SSL Inspection Throughput | • 4 Gbps |
| SSL VPN Throughput | • 5 Gbps |
| Concurrent SSL VPN Users *(Default/Maximum) | • 100/10000 |
| Security Policies (Maximum) | • 100,000 |
| Virtual Firewalls | • 1000 |
| URL Filtering: Categories | • More than 130 |
| URL Filtering: URLs | • A database of over 500 million URLs in the cloud |
| Automated IPS Signature Updates | • Yes, an industry-leading security center from Huawei |
| Third-Party and Open-Source Ecosystem | • Open API for integration with third-party products, providing NETCONF interfaces • Other third-party management software based on SNMP, SSH, and Syslog |
| VLANs (Maximum) | • 4094 |
| VLANIF Interfaces (Maximum) | • 4094 |

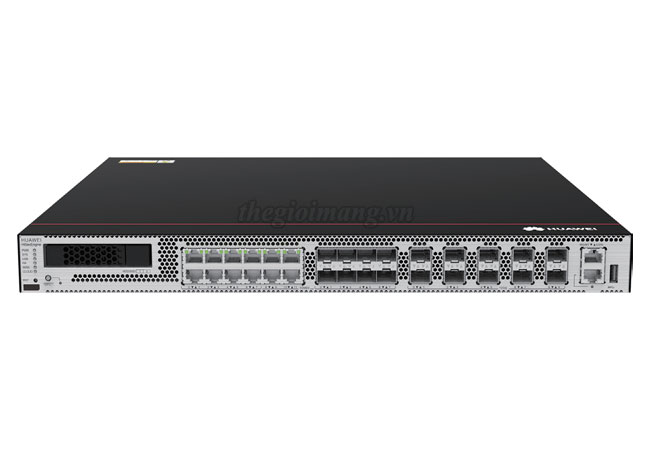

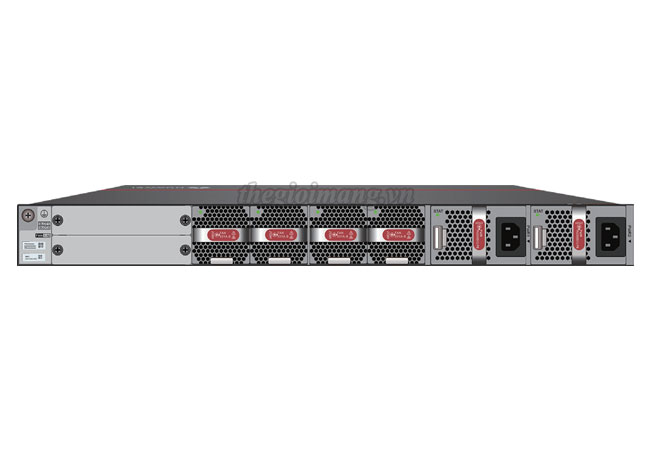

USG6685F-AC : 8*GE COMBO + 4*GE RJ45 + 10*10GE SFP+, 2 AC power supplies
Data sheet Huawei HiSecEngine USG6600F&USG6700F Series Firewalls
