Mô tả sản phẩm

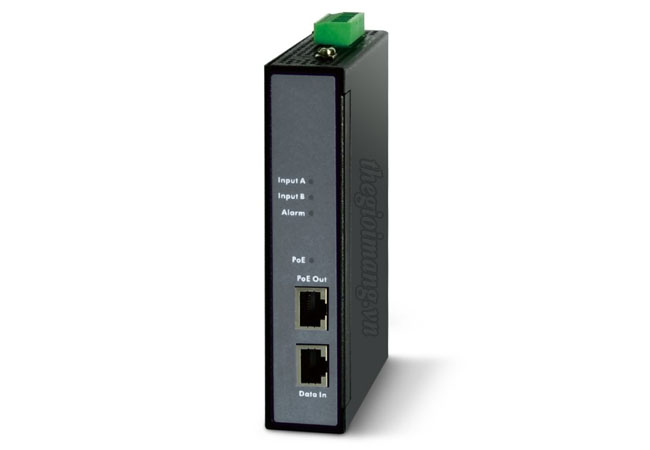

Bộ cấp nguồn Công nghiệp EnGenius PIR075-24-GP-B

Product SKU#	PIR075-24-GP-B
Output
DC Voltage	54V
Rated Current	1.4A
Operation Current	0~1.4A
Rated Power	75W max
Ripple & Noise	100mV
4-Pair Powering	1/2 (–) and 3/6 (+) Spare Pairs 4/5 (+), 7/8 (-)
Gigabit LAN Port	✔
LAN Transformer	✔
IEEE 802.3af/at Compliant	X
Output Voltage Tolerance	±5%
Line Regulation	±1%
Load Regulation	±.3%
Turn On Time & Rise Time	<1s,100ms @24Vdc / 54Vdc at full load
Input
Voltage Range	24Vdc~54Vdc
Operation Voltage	20Vdc~60Vdc
Efficiency(Typ.)	85%@24Vdc / 54Vdc at full load
DC Current (Full Load)	4A / 24Vdc
Protection
Over Power Protection, Short Circuit Protection	Protection Type: Auto-Recovery
Over Voltage	<60V@24Vdc / 54Vdc at full load Protection Type: Latch(Re-Start)
Over Temperature	90°C± 5°C Protection Type: Auto-Recovery
Environment
Operation Temp.	-40°C~75°C
Working Humidity	5%~90% RH Non-Condensing
Temp. Coefficient	±0.03%/°C (0°C~50°C)
Hi-Pot
Dielectric Withstanding Voltage	I/P-O/P: 1.5KVac, I/P-FG: 1.5KVac
Others
MTBF	400,000 hrs min SR332 (25°C)
Dimensions	100mm x 31mm x 140mm (Lx Wx H)
Weight	560g
DC Connector	6-Contact Terminal Block
Data In / PoE Out	RJ45 Shielded Socket
Safety	UL, CB, FCC, CE

Xem thêm

Thông số kỹ thuật

Data sheet Industrial PoE Injector PIR075-24-GP-B

PIR075-24-GP-B is a single port passive PoE injector which provides maximum 75W power over CAT5 or 5e UTP/STP Ethernet cable by four pairs. It also supports two redundant DC inputs from 20Vdc~60- Vdc for industrial backup. The device can be connected to Ethernet powered devices, such as wireless LAN high power devices, pan-tilt- zoom (PTZ), speed dome cameras, IP videophones, and other high power Ethernet end terminals that allow delivering and operating both data and power with a proprietary 54V-compatible device over an Ethernet cable in industrial environment from -40 to 75°C under any severe condition.

54V, 75 Watts of High Power-over-Ethernet
IEEE802.3af/at compliant (Only for PIR030-24-GS-B)
Support 10/100/1000Mbps for PoE OUT and DATA IN
Two DC Input for power redundancy with range from 20Vdc~60Vdc
Industrial rated IP30
-40 to 75°C operating temperature range
Din-rail and Wall mount

Xem thêm thông số kỹ thuật
