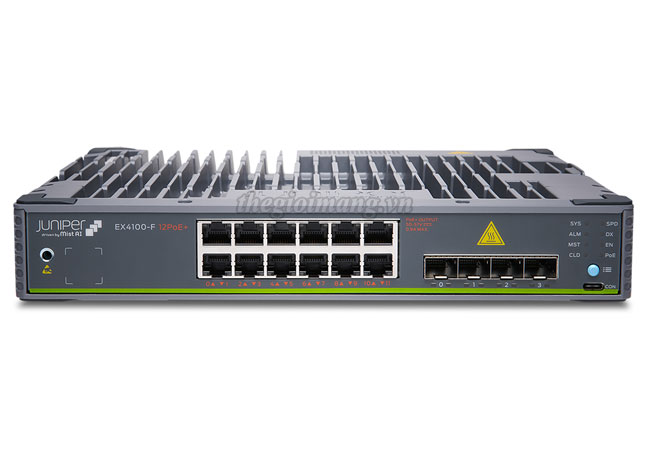

Juniper EX4100-F-12T Ethernet access switch :
Thiết bị chuyển mạch Switch Juniper EX4100-F-12T
Model | EX4100-F-12T |
Switching Engine Mode | • Store and forward |
Memory | • DRAM: 4 GB with Error Correcting Code (ECC) • Storage: 8 GB |
CPU | • 1.7 GHz ARM CPU |
Port Density per System | • 12 host ports + 2 port RJ45 1GbE/2GbE/5GbE/10GbE uplinks + 4 port 10GbE SFP+ Virtual Chassis/uplinks |
Packet Switching Capacities (Maximum with 64 Byte Packets) |
• 72 Gbps (unidirectional)/144 Gbps (bidirectional) |
Layer 2/Layer 3 Throughput (Mpps) (Maximum with 64 Byte Packets) |
• 107 Mpps |
Backplane | • 80 Gbps Virtual Chassis interconnect to combine up to 10 units as a single logical device |
Dimensions (W x H x D) | • 26.9 x 4.45 x 23.83 cm • Height: 1 U |
System Weight | • 2.7 kg |
Environmental Ranges | • Operating temperature: 32° to 113° F (0° to 45°C) • Storage temperature: -40° to 158° F (-40° to 70° C) • Operating altitude: Up to 5000 ft at 40° C (1828.8 m) • Nonoperating altitude: Up to 16,000 ft (4,877 m) • Relative humidity operating: 5% to 90% (noncondensing) • Relative humidity non-operating: 0% to 90% (noncondensing) |
EX4100-F-12T : 12-port 10/100/1000BASE-T switch, 2x100Mb/1GbE/2.5GbE/5GbE/10GbE uplinks, 4x10GbE stacking/uplink ports, with Standard SW, Optics sold separately.
