Juniper MX204-IR

Router Juniper MX204-IR : MX204 chassis with 3 fan trays and 2 power supplies, IR mode
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Thiết bị định tuyến Router Juniper MX204-IR

Model MX204-IR
Layout
System capacity 400 Gbps
Slot orientation NA
Mounting Front or center
Physical Specification
Dimensions (W x H x D) 17.6 x 1.75 x 18.7 in (44.7 x 4.45 x 47.5 cm)
Weight fully loaded 23.15 lb/10.5 kg
Weight unloaded 17 lb/7.71 kg
Routing Engine
Default memory 32GB DDR4; 2x100 GB SSD
Number of cores 8 core
Redundancy Power supplies and fans
Environmental
Air flow Front to back
Operating temperature 32° to 115° F (0° to 46° C)
Operating humidity 5% to 90%
Operating altitude 6,000 ft (1900 m)
Certifications - GR-1089-Core EMC and Electrical Safety
- Common Bonding Network (CBN)
- National Electrical Code (NEC)
- GR-63-Core Physical Protection

MX204 Power Supply

JPSU-650W-AC-AO MX204 AC power supply, spare
JPSU-650W-DC-AFO MX204 DC power supply, spare

MX204 Fan Trays

JNP-FAN-1RU  MX204 fan tray

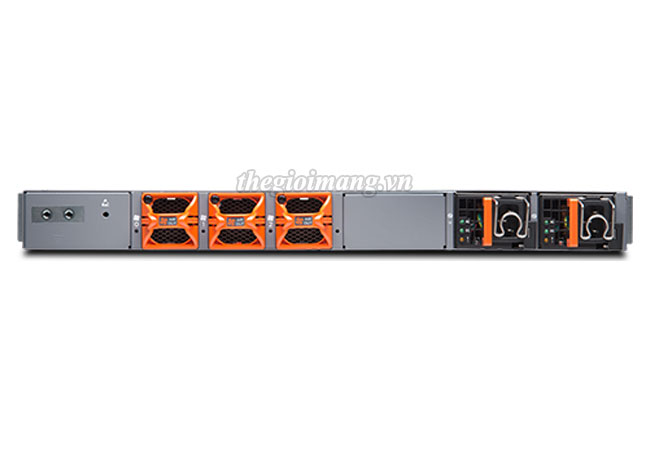

MX204-IR : MX204 chassis with 3 fan trays and 2 power supplies, IR mode

Data sheet MX Series Universal Routing Platforms
