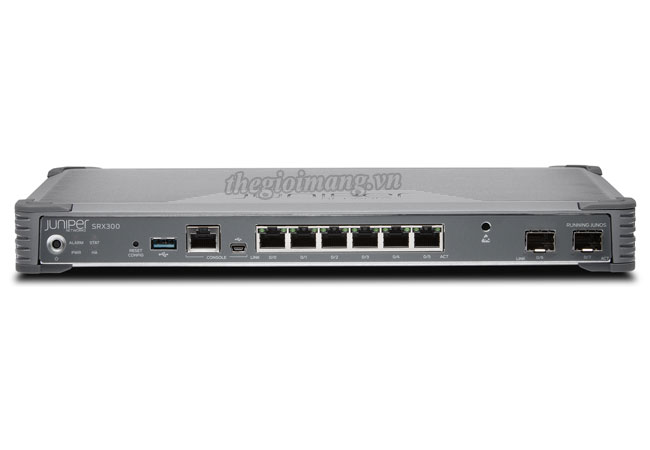

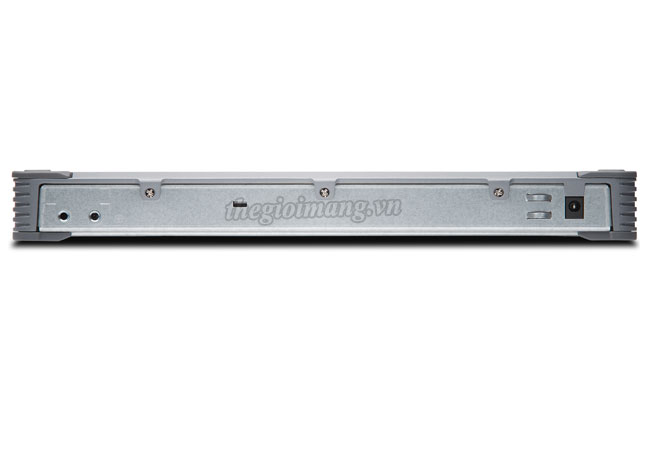

Juniper SRX300-SYS-JB

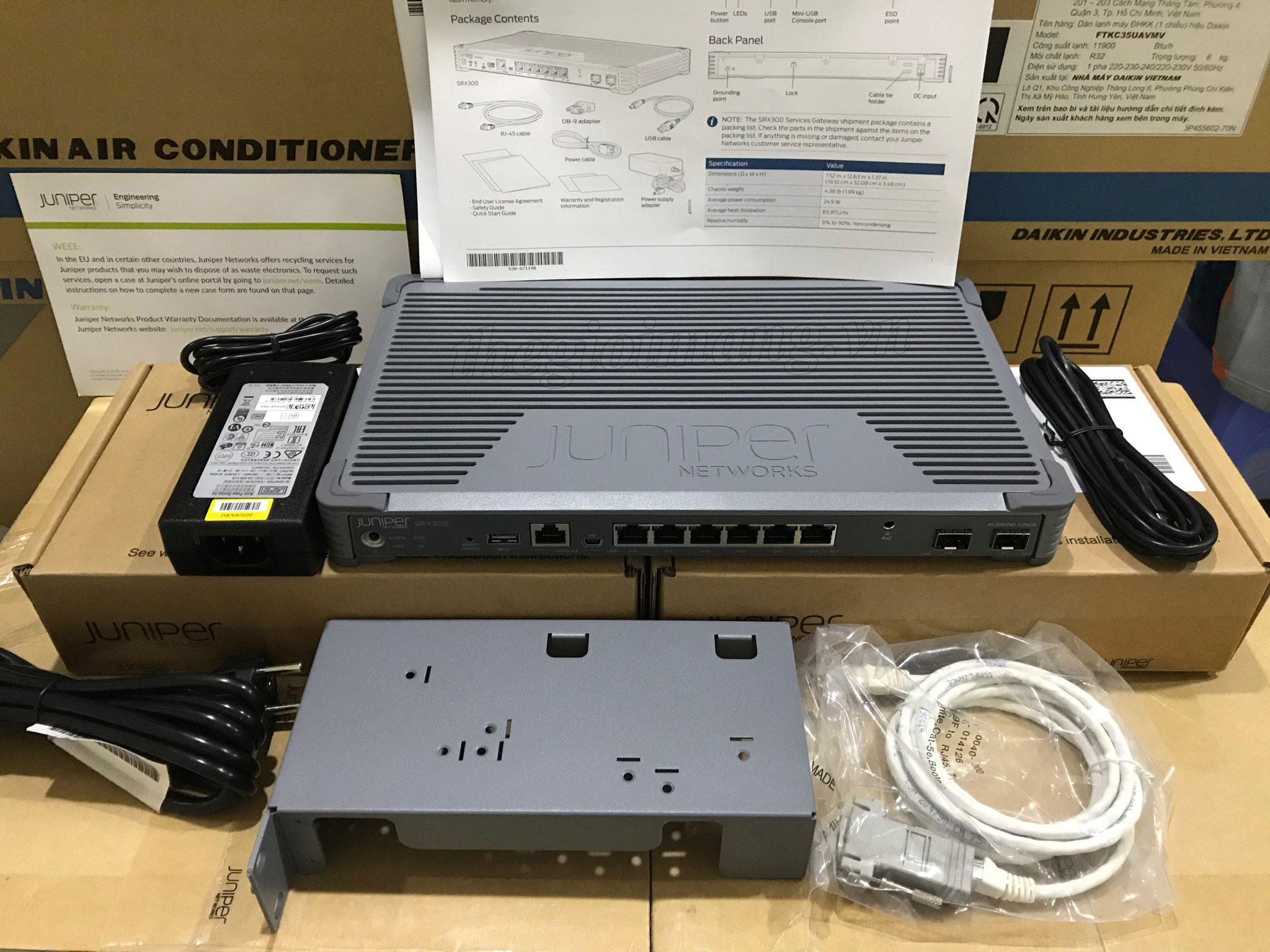

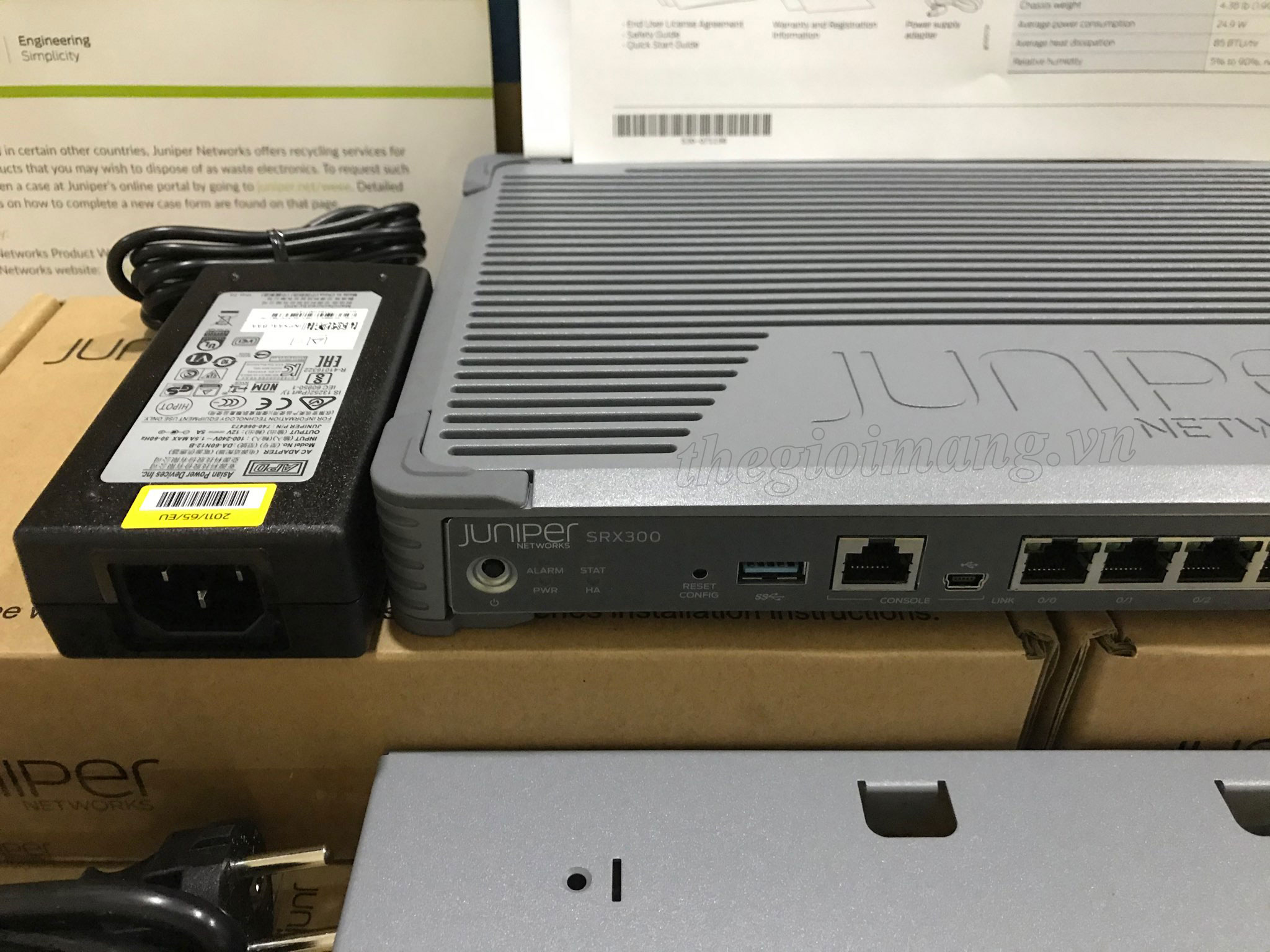

Firewall Juniper SRX300-SYS-JB : SRX300 Services Gateway includes hardware (8GbE, 4G RAM, 8G Flash, power adapter and cable) and Junos Software Base (firewall, NAT, IPSec, routing, MPLS and switching). RMK not included.
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Thiết bị tường lửa Firewall Juniper SRX300-SYS-JB

Model SRX300-SYS-JB
Connectivity
Total onboard ports 8x1GbE
Onboard RJ-45 ports 6x1GbE
Onboard small form-factor pluggable (SFP) transceiver ports 2x1GbE
MACsec-capable ports 2x1GbE
Out-of-band (OOB) management ports 0
Mini PIM (WAN) slots 0
Console (RJ-45 + miniUSB) 1
USB 3.0 ports (type A) 1
PoE+ ports N/A
Memory and Storage
System memory (RAM) 4 GB
Storage 8 GB
SSD slots 0
Performance and Scale
Routing with packet mode (64 B packet size) in Kpps 300
Routing with packet mode (IMIX packet size) in Mbps 800
Routing with packet mode (1,518 B packet size in Mbps 1,500
Stateful firewall (64 B packet size) in Kpps 200
Stateful firewall (IMIX packet size) in Mbps 500
Stateful firewall (1,518 B packet size) in Mbps 1,000
IPsec VPN (IMIX packet size) in Mbps 100
IPsec VPN (1,400 B packet size) in Mbps 300
Application visibility and control in Mbps 500
Recommended IPS in Mbps 200
Next-generation firewall in Mbps 100
Route table size (RIB/FIB) (IPv4 or IPv6) 256,000/256,000
Maximum concurrent sessions (IPv4 or IPv6) 64,000
Maximum security policies 1,000
Connections per second 5,000
NAT rules 1,000
MAC table size 15,000
IPsec VPN tunnels 256
Number of remote access/SSL VPN (concurrent) users 25
GRE tunnels 256
Maximum number of security zones 16
Maximum number of virtual routers 32
Maximum number of VLANs 1,000
AppID sessions 16,000
IPS sessions 16,000
URLF sessions 16,000
Dimensions and Power
Form factor Desktop
Size (WxHxD) 12.63 x 1.37 x 7.52 in. (32.08 x 3.47 x 19.10 cm)
Weight (device and PSU) 4.38 lb (1.98 kg)
Redundant PSU No
Power supply AC (external)
DC Input N/A
Maximum PoE power N/A
Average power consumption 24.9 W
Average heat dissipation 85 BTU/h
Maximum current consumption 0.346 A
Acoustic noise level 0dB (fanless)
Airflow/cooling Fanless
Environmental, Compliance, and Safety Certification
Operational temperature -4° to 140° F (-20° to 60° C)
Nonoperational temperature -4° to 158° F (-20° to 70° C)
Operating humidity 10% to 90% noncondensing
Nonoperating humidity 5% to 95% noncondensing
Meantime between failures (MTBF) 44.5 years
FCC classification Class A
RoHS compliance RoHS 2
FIPS 140-2 Level 2 (Junos 15.1X49-D60)
Common Criteria certification NDPP, VPNEP, FWEP, IPSEP (based on Junos 15.1X49-D60)

SRX300-SYS-JB : SRX300 Services Gateway includes hardware (8GbE, 4G RAM, 8G Flash, power adapter and cable) and Junos Software Base (firewall, NAT, IPSec, routing, MPLS and switching). RMK not included.

Data sheet Juniper SRX300 Line Of Services Gateways For The Branch
