Juniper SRX300-SYS-JE

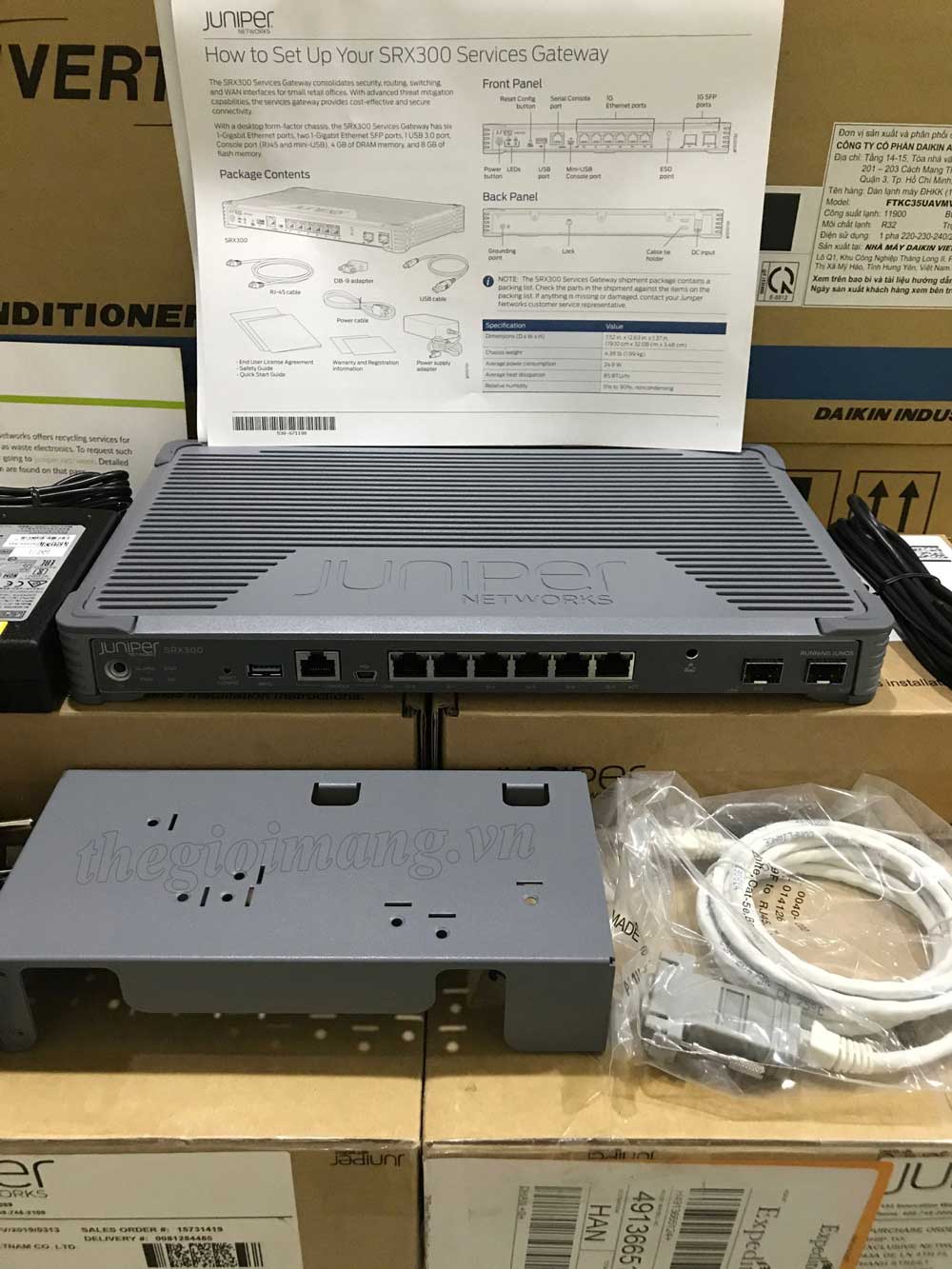

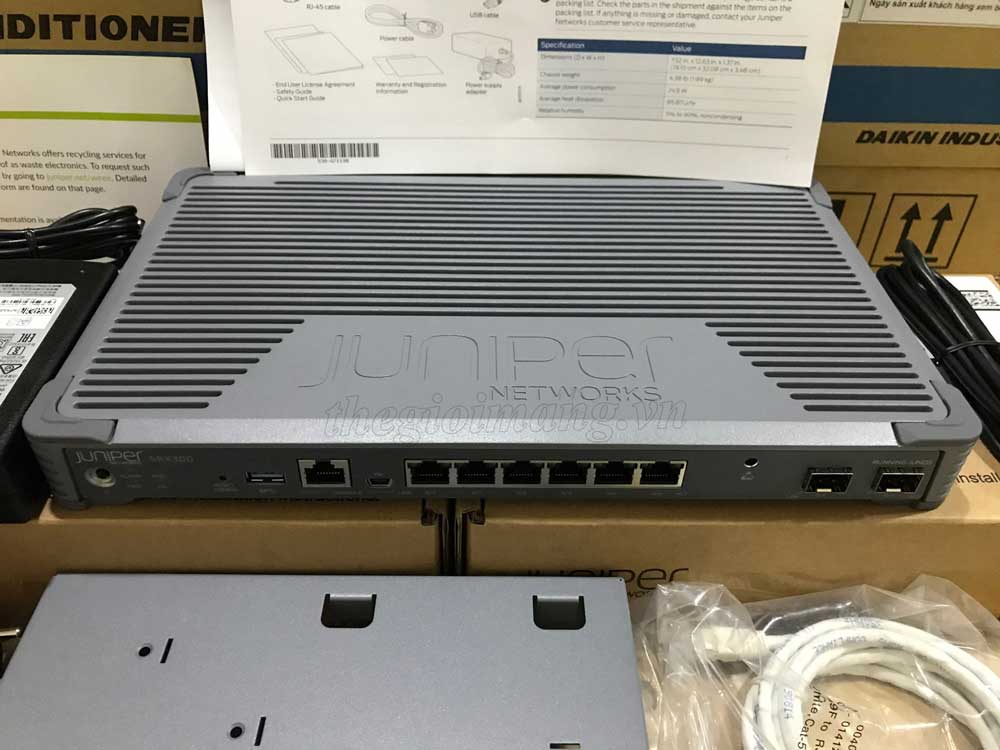

Firewall Juniper SRX300-SYS-JE: SRX300 Services Gateway includes hardware (8GbE, 4G RAM, 8G Flash, power adapter and cable) and Junos Sofware Enhanced (firewall, NAT, IPSec, routing, MPLS, switching and applicaton security). RMK not included

  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Thiết bị Firewall Juniper SRX300-SYS-JE

Product Name SRX300-SYS-JE
Connectivity
Total onboard ports 8x1GbE
Onboard RJ-45 ports 6x1GbE
Onboard small form-factor pluggable (SFP) transceiver ports 2x1GbE
MACsec-capable ports 2x1GbE
Out-of-Band (OOB) management ports 0
Mini PIM (WAN) slots 0
Console (RJ-45 + miniUSB) 1
USB 3.0 ports (type A) 1
Optional PoE+ ports N/A
Memory and Storage
System memory (RAM) 4 GB
Storage (flash) 8 GB
SSD slots 0
Dimensions and Power
Form factor Desktop
Size (WxHxD) 12.63 x 1.37 x 7.52 in.
(32.08 x 3.47 x 19.10 cm)
Weight (device and PSU) 4.38 lb (1.98 kg)
Redundant PSU No
Power supply AC (external)
Maximum PoE power N/A
Average power consumption 15.4 W
Average heat dissipation 85 BTU/h
Maximum current consumption 0.254 A
Acoustic noise level 0dB (fanless)
Airflow/cooling Fanless
Environmental, Compliance, and Safety Certification
Operating temperature 32° to 104° F (0° to 40° C)
Nonoperating temperature 4° to 158° F (-20° to 70° C)
Operating humidity 10% to 90% noncondensing
Nonoperating humidity 5% to 95% noncondensing
Meantime between failures (MTBF) 44.5 years
FCC classification Class A
RoHS compliance RoHS 2
Common Criteria certification NDPP, VPNEP, FWEP, IPSEP (based on Junos 15.1X49-D60)
Performance and Scale
Routing with packet mode (64 B packet size) in Kpps5 300
Routing with packet mode (IMIX packet size) in Mbps5 800
Routing with packet mode (1,518 B packet size in Mbps5 1,500
Stateful firewall (64 B packet size) in Kpps5 200
Stateful firewall (IMIX packet size) in Mbps5 500
Stateful firewall (1,518 B packet size) in Mbps5 1,000
IPsec VPN (IMIX packet size) in Mbps5 100
IPsec VPN (1,400 B packet size) in Mbps5 300
Application visibility and control in Mbps6 500
Recommended IPS in Mbps6 200
Next-generation firewall in Mbps6 100
Route table size (RIB/FIB) (IPv4 or IPv6) 256,000/256,000
Maximum concurrent sessions (IPv4 or IPv6) 64,000
Maximum security policies 1,000
Connections per second 5,000
NAT rules 1,000
MAC table size 15,000
IPsec VPN tunnels 256
Number of remote access uses 25
GRE tunnels 256
Maximum number of security zones 16
Maximum number of virtual routers 32
Maximum number of VLANs 1,000
AppID sessions 16,000
IPS sessions 16,000
URLF sessions 16,000
WAN Interface
1 port T1/E1 MPIM (SRX-MP-1T1E1-R) No
1 port VDSL2 Annex A/M MPIM (SRX-MP-1VDSL2-R) No
1 port serial MPIM (SRX-MP-1SERIAL-R) No
4G / LTE MPIM (SRX-MP-LTE-AA & SRX-MP-LTE-AE) No



Data Sheet Firewall Juniper SRX300-SYS-JE

Junos Infomation SRXnnn-SYS-JE
(Junos Software Enhanced)
Hardware Included
Management (CLI, JWEB, SNMP, Telnet, SSH)
Ethernet switching (L2 Forwarding, IRB, LACP etc)
L2 Transparent, Secure Wire
Routing (RIP, OSPF, BGP, Virtual router)
Multicast (IGMP, PIM, SSDP, DMVRP)
Packet Mode
Overlay (GRE, IP-IP)
Network Services (J-Flow, DHCP, QOS, BFD)
Stateful Firewall, Screens, ALGs
NAT (static, SNAT, DNAT)
IPSec VPN (Site-Site VPN, Auto VPN, Group VPN)
Firewall policy enforcement (UAC, Aruba CPPM)
Remote Access VPN L = Per-user license-based
(2 free licenses included)
Chassis Cluster, VRRP, ISSU / ICU
Automation (Junos scripting, auto-installation)
MPLS, LDP, RSVP, L3 VPN, pseudo-wires, VPLS
Application Security (AppID, AppFW, AppQOS, AppRoute)
