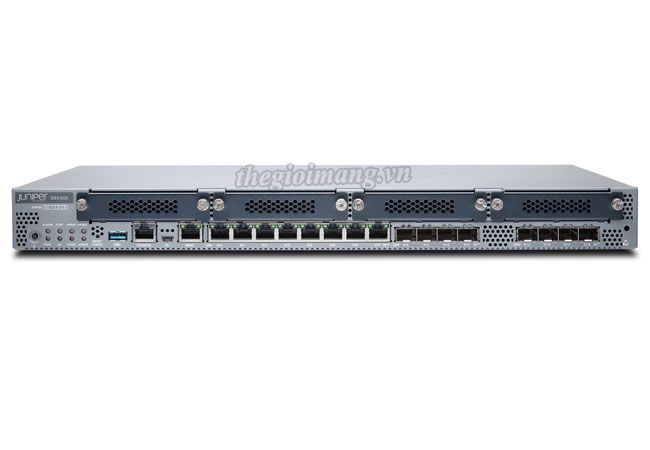

Juniper SRX345-SYS-JE-DC

Firewall Juniper SRX345-SYS-JE-DC: SRX345 Services Gateway includes hardware (16GbE, 4x MPIM slots, 4G RAM, 8G Flash, single DC power supply, cable and RMK) and Junos Sofware Enhanced (firewall, NAT, IPSec, routing, MPLS, switching and applicaton security)
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Thiết bị Firewall Juniper SRX345-SYS-JE-DC

Product Name SRX345-SYS-JE-DC
Connectivity
Total onboard ports 16x1GbE
Onboard RJ-45 ports 8x1GbE
Onboard small form-factor pluggable (SFP) transceiver ports 8x1GbE
MACsec-capable ports 16x1GbE
Out-of-Band (OOB) management ports 1x1GbE
Mini PIM (WAN) slots 4
Console (RJ-45 + miniUSB) 1
USB 3.0 ports (type A) 1
Optional PoE+ ports 0
Memory and Storage
System memory (RAM) 4 GB
Storage (flash) 8 GB
SSD slots 1
Dimensions and Power
Form factor 1U
Size (WxHxD) 17.36 x 1.72 x 14.57 in.
(44.09 x 4.36 x 37.01 cm) /
17.36 x 1.72 x 18.7 in.
(44.09 x 4.36 x 47.5 cm)2
Weight (device and PSU) 10.80 lb (4.90 kg)
Redundant PSU Yes
Power supply AC (external)
Maximum PoE power N/A
Average power consumption 122 W
Average heat dissipation 420 BTU/h
Maximum current consumption 1.364 A
Acoustic noise level 45.5 dBA
Airflow/cooling Front to back
Environmental, Compliance, and Safety Certification
Operating temperature 32° to 104° F (0° to 40° C)
Nonoperating temperature 4° to 158° F (-20° to 70° C)
Operating humidity 10% to 90% noncondensing
Nonoperating humidity 5% to 95% noncondensing
Meantime between failures (MTBF) 27.4 years
FCC classification Class A
RoHS compliance RoHS 2
Common Criteria certification NDPP, VPNEP, FWEP, IPSEP (based on Junos 15.1X49-D60)
Performance and Scale
Routing with packet mode (64 B packet size) in Kpps5 750
Routing with packet mode (IMIX packet size) in Mbps5 2,300
Routing with packet mode (1,518 B packet size in Mbps5 5,500
Stateful firewall (64 B packet size) in Kpps5 550
Stateful firewall (IMIX packet size) in Mbps5 1,700
Stateful firewall (1,518 B packet size) in Mbps5 5,000
IPsec VPN (IMIX packet size) in Mbps5 300
IPsec VPN (1,400 B packet size) in Mbps5 800
Application visibility and control in Mbps6 1,700
Recommended IPS in Mbps6 600
Next-generation firewall in Mbps6 300
Route table size (RIB/FIB) (IPv4 or IPv6) 1 million/600,0007
Maximum concurrent sessions (IPv4 or IPv6) 375,000
Maximum security policies 4,000
Connections per second 15,000
NAT rules 2,000
MAC table size 15,000
IPsec VPN tunnels 2,048
Number of remote access uses 250
GRE tunnels 1,024
Maximum number of security zones 64
Maximum number of virtual routers 128
Maximum number of VLANs 3,000
AppID sessions 64,000
IPS sessions 64,000
URLF sessions 64,000
WAN Interface
1 port T1/E1 MPIM (SRX-MP-1T1E1-R) Yes
1 port VDSL2 Annex A/M MPIM (SRX-MP-1VDSL2-R) Yes
1 port serial MPIM (SRX-MP-1SERIAL-R) Yes
4G / LTE MPIM (SRX-MP-LTE-AA & SRX-MP-LTE-AE) Yes



Data Sheet Firewall Juniper SRX345-SYS-JE-DC

Junos Infomation SRXnnn-SYS-JE
(Junos Software Enhanced)
Hardware Included
Management (CLI, JWEB, SNMP, Telnet, SSH)
Ethernet switching (L2 Forwarding, IRB, LACP etc)
L2 Transparent, Secure Wire
Routing (RIP, OSPF, BGP, Virtual router)
Multicast (IGMP, PIM, SSDP, DMVRP)
Packet Mode
Overlay (GRE, IP-IP)
Network Services (J-Flow, DHCP, QOS, BFD)
Stateful Firewall, Screens, ALGs
NAT (static, SNAT, DNAT)
IPSec VPN (Site-Site VPN, Auto VPN, Group VPN)
Firewall policy enforcement (UAC, Aruba CPPM)
Remote Access VPN L = Per-user license-based
(2 free licenses included)
Chassis Cluster, VRRP, ISSU / ICU
Automation (Junos scripting, auto-installation)
MPLS, LDP, RSVP, L3 VPN, pseudo-wires, VPLS
Application Security (AppID, AppFW, AppQOS, AppRoute)
