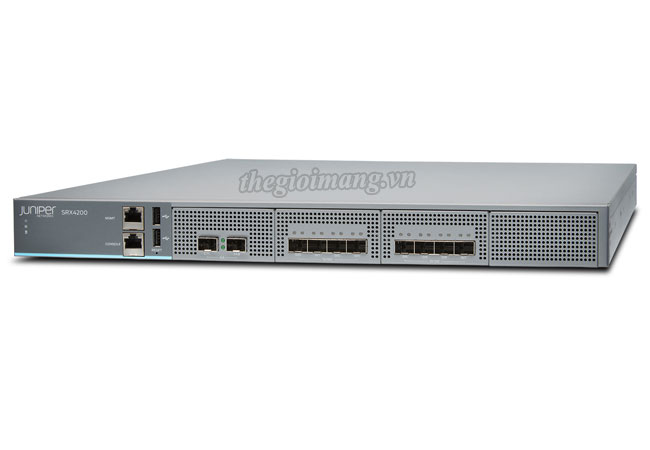

Thiết bị Firewall Juniper SRX4200-SYS-JE-AC
| Product Name | SRX4200-SYS-JE-AC |
|---|---|
| Connectivity | |
| Total onboard ports | 8x1GbE/10GbE |
| Onboard small form-factor pluggable plus (SFP+) transceiver ports | 8x1GbE/10GbE |
| Out-of-Band (OOB) management ports | 1x1GbE |
| Dedicated high availability (HA) ports | 2x1GbE/10GbE (SFP/SFP+) |
| Console (RJ-45) | 1 |
| USB 2.0 ports (type A) | 2 |
| Memory and Storage | |
| System memory (RAM) | 64 GB |
| Secondary storage (SSD) | 240 GB with 1+1 RAID |
| Dimensions and Power | |
| Form factor | 1 U |
| Size (WxHxD) | 17.48 x 1.7.x.25 in |
| (44.39 x 4.31 x 63.5 cm) | |
| Weight (device and PSU) | Chassis with two AC power supplies: 29 lb (13.15 kg) |
| Chassis with two DC power supplies: 28.9 lb (13.06 kg) | |
| Chassis with package for shipping: 47.5 lb (21.54 kg) | |
| Redundant PSU | 1+1 |
| Power supply | 2x 650 W redundant AC-DC/DC-DC PSU |
| Average power consumption | 200 W |
| Average heat dissipation | 685 BTU / hour |
| Maximum current consumption | 4A (for 110 V AC power) |
| 2A (for 220 V AC power) | |
| 9A (for -48 V DC power) | |
| Maximum inrush current | 50 A by 1 AC cycle |
| Acoustic noise level | 70 dBA |
| Airflow/cooling | Front to back |
| Environmental, Compliance, and Safety Certification | |
| Operating temperature | 32° to 104° F (0° to 40° C) |
| Operating humidity | 5% to 90% noncondensing |
| Meantime between failures (MTBF) | 12 years (105,120 hours) |
| FCC classification | Class A |
| RoHS compliance | RoHS 2 |
| Performance and Scale | |
| Routing/firewall (64 B packet size) throughput Gbps1 | 10 |
| Routing/firewall (IMIX packet size) throughput Gbps1 | 40 |
| Routing/firewall (1,518 B packet size) throughput Gbps1 | 80 |
| IPsec VPN (IMIX packet size) Gbps1 | 9.6 |
| IPsec VPN (1,400 B packet size) Gbps1 | 20 |
| Application visibility and control in Gbps2 | 35 |
| Recommended IPS in Gbps2 | 20 |
| Next-generation firewall in Gbps2 | 15 |
| Connections per second (CPS) | 300,000 |
| Maximum security policies | 60,000 |
| Maximum concurrent sessions (IPv4 or IPv6) | 10 million |
| Route table size (RIB/FIB) (IPv4 or IPv6) | 2 million / 2 million |
Data sheet SRX4100 and SRX4200 Firewall Juniper Networks Services Gateway
| Junos Infomation | SRXnnn-SYS-JE (Junos Software Enhanced) |
| Hardware | Included |
| Management (CLI, JWEB, SNMP, Telnet, SSH) | ✓ |
| Ethernet switching (L2 Forwarding, IRB, LACP etc) | ✓ |
| L2 Transparent, Secure Wire | ✓ |
| Routing (RIP, OSPF, BGP, Virtual router) | ✓ |
| Multicast (IGMP, PIM, SSDP, DMVRP) | ✓ |
| Packet Mode | ✓ |
| Overlay (GRE, IP-IP) | ✓ |
| Network Services (J-Flow, DHCP, QOS, BFD) | ✓ |
| Stateful Firewall, Screens, ALGs | ✓ |
| NAT (static, SNAT, DNAT) | ✓ |
| IPSec VPN (Site-Site VPN, Auto VPN, Group VPN) | ✓ |
| Firewall policy enforcement (UAC, Aruba CPPM) | ✓ |
| Remote Access VPN | L = Per-user license-based (2 free licenses included) |
| Chassis Cluster, VRRP, ISSU / ICU | ✓ |
| Automation (Junos scripting, auto-installation) | ✓ |
| MPLS, LDP, RSVP, L3 VPN, pseudo-wires, VPLS | ✓ |
| Application Security (AppID, AppFW, AppQOS, AppRoute) | ✓ |
