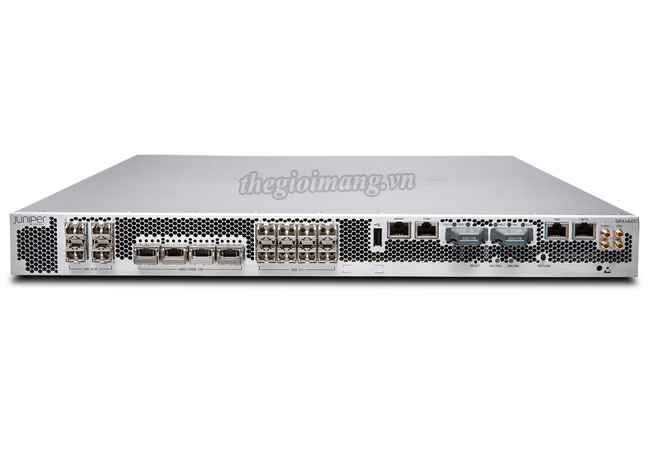

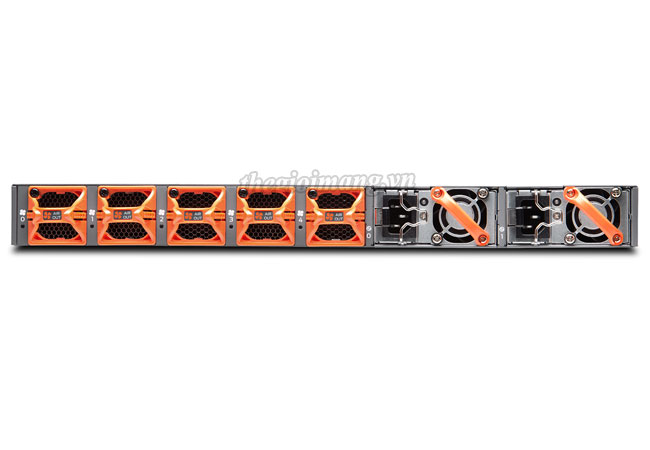

Thiết bị Firewall Juniper SRX4600-SYS-JE-AC
| Product Name | SRX4600-SYS-JE-AC |
|---|---|
| Total onboard I/O ports | 8 10GbE (SFP+) 4x40GbE/100GbE (QSFP28) |
| Out-of-Band (OOB) management ports | RJ-45 (1 Gbps) |
| Dedicated high availability (HA) ports | 2x10GbE (SFP+) Control 2x10GbE (SFP+) Data |
| Console | RJ-45 (RS232) |
| USB 2.0 ports (Type A) | 1 |
| Memory and Storage | |
| System memory (RAM) | 256 GB |
| Secondary storage (SSD) | 2x 1 TB M.2 SSD Formatted as 960 GB |
| Dimensions and Power | |
| Form factor | 1 U |
| Size (WxHxD) | 17.4 x 1.7 x 26.5 in (44.19 x 4.32 x 67.31 cm) With AC PEMs: 17.4 x 1.7 x 27.29 in (44.19 x 4.32 x 69.32 cm) With DC PEMs: 17.4 x 1.7 x 29.20 in (44.19 x 4.32 x 74.17 cm) |
| Weight (system and 2 power entry modules) | With AC PEMs: 38 lb (17.24 kg) Shipping weight: 45.47 lb (20.62 kg) With DC PEMs: 40 lb (18.14 kg) Shipping weight: 47.47 lb (21.53 kg) |
| Redundant PSU | 1+1 |
| Power supply | 2x 1600 W AC-DC PSU redundant 2x 1100 W DC-DC PSU redundant |
| Average power consumption | 650 W |
| Average heat dissipation | 2218 BTU/hour |
| Maximum current consumption | 12 A (for 110 V AC power) 6 A (for 220 V AC power) 24 A (for -48 V DC power) |
| Precision Time Protocol Timing Ports | |
| Time of day - RS-232 (EIA-23) | 1xRJ-45 |
| BITS clock | 1xRJ-48 |
| 10-MHz timing connector (GNSS) | 1xInput (COAX) 1xOutput (COAX) |
| Pulse per second connection (1-PPS) | 1xInput (COAX) 1xOutput (COAX) |
| Environmental and Regulatory Compliance | |
| Acoustic noise level | 69 dBA at normal fan speed, 87 dBA at full fan speed |
| Airflow/cooling | Front to back |
| Operating temperature | 32° to 104° F (0° to 40° C) |
| Operating humidity | 5% to 90% noncondensing |
| Meantime between failures (MTBF) | 112,000 hours |
| FCC classification | Class A |
| RoHS compliance | RoHS 2 |
| NEBS compliance | Designed for NEBS Level 3 |
| Performance | |
| Routing/firewall (64 B packet size) throughput Gbps3 | 17 Gbps |
| Routing/firewall (IMIX packet size) throughput Gbps3 | 75 Gbps |
| Routing/firewall (1518 B packet size) throughput Gbps3 | 95 Gbps |
| IPsec VPN (IMIX packet size) Gbps3 | 16 Gbps |
| IPsec VPN (1400 B packet size) Gbps3 | 38 Gbps |
| Application security performance in Gbps3 | 80 Gbps |
| Recommended IPS in Gbps4 | 20 Gbps |
| Next-generation firewall in Gbps4 | 20 Gbps |
| Connections per second (CPS) | 500,000 |
| Maximum security policies | 80,000 |
| Maximum concurrent sessions (IPv4 or IPv6) | 60 million |
| Route table size (RIB/FIB) (IPv4 or IPv6) | 4 million/2 million |
Data sheet Firewall Juniper SRX4600 Services Gateway
| Junos Infomation | SRXnnn-SYS-JE (Junos Software Enhanced) |
| Hardware | Included |
| Management (CLI, JWEB, SNMP, Telnet, SSH) | ✓ |
| Ethernet switching (L2 Forwarding, IRB, LACP etc) | ✓ |
| L2 Transparent, Secure Wire | ✓ |
| Routing (RIP, OSPF, BGP, Virtual router) | ✓ |
| Multicast (IGMP, PIM, SSDP, DMVRP) | ✓ |
| Packet Mode | ✓ |
| Overlay (GRE, IP-IP) | ✓ |
| Network Services (J-Flow, DHCP, QOS, BFD) | ✓ |
| Stateful Firewall, Screens, ALGs | ✓ |
| NAT (static, SNAT, DNAT) | ✓ |
| IPSec VPN (Site-Site VPN, Auto VPN, Group VPN) | ✓ |
| Firewall policy enforcement (UAC, Aruba CPPM) | ✓ |
| Remote Access VPN | L = Per-user license-based (2 free licenses included) |
| Chassis Cluster, VRRP, ISSU / ICU | ✓ |
| Automation (Junos scripting, auto-installation) | ✓ |
| MPLS, LDP, RSVP, L3 VPN, pseudo-wires, VPLS | ✓ |
| Application Security (AppID, AppFW, AppQoS, AppQoE, AppRoute)) | ✓ |
