Trang chủ > Sản phẩm > Thiết bị mạng Juniper > Firewall Juniper > Juniper SRX550-645DP-M

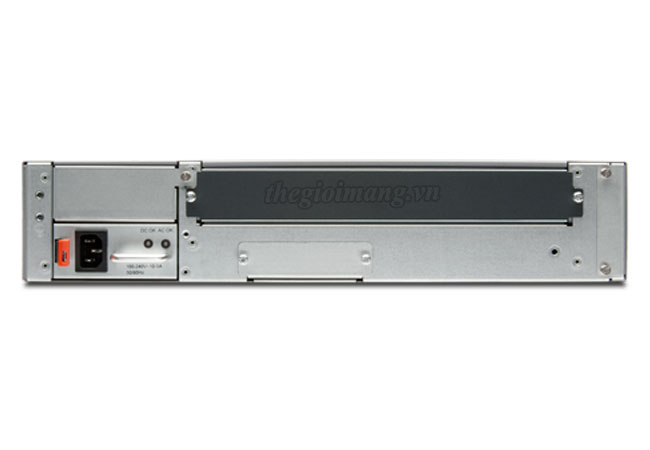

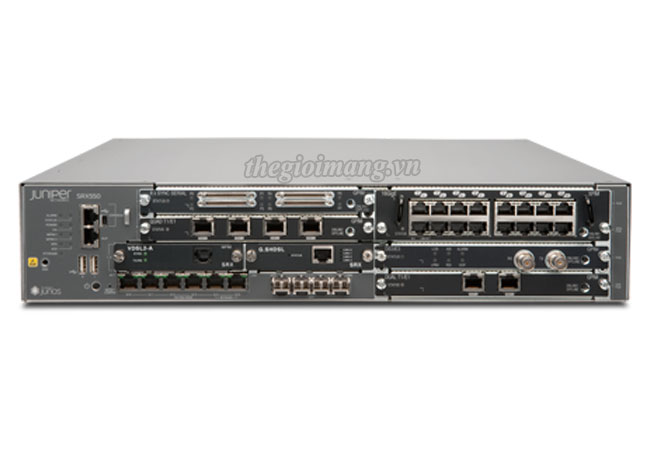

Juniper SRX550-645DP-M

Firewall Juniper SRX550-645DP-M : SRX550M Services Gateway with 4 GB DRAM and 8 GB CF, 2 U height, 6 GPIM slots, 2 Mini-PIM slots, 6 10/100/1000BASET ports, 4GbE SFP ports, dual PS slots, and fans; ships with one 645 W DC power supply with 247 W PoE power (no power cord or rack-mount kit included)
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Thiết bị tường lửa Firewall Juniper SRX550-645DP-M

Model SRX550-645DP-M
Network Connectivity • Fixed I/O: 6 x 10/100/1000 BASE-T + 4 small form-factor pluggable transceivers (SFP transceivers)
• I/O slots: 2 x SRX Series Mini-PIM, 6 x Gigabit-Backplane Physical Interface Module (GPIM) or multiple GPIM and XPIM combinations
• Services and Routing Engine slots: No
• WAN/LAN interface options: See ordering information
• Maximum number of PoE ports (PoE optional on some SRX Series models): Up to 40 ports of 802.3af/at with maximum 247 W
• USB: 2
Flash and Memory • Memory (DRAM): 4 GB
• Memory slots: 2 DIMM
• Flash memory: 8 GB, CF internal
• USB port for external storage: Yes
Dimensions and Power • Dimensions (W x H x D): 17.5 x 3.5 x 18.2 in (44.4 x 8.8 x 46.2 cm)
• Weight (device and power supply): 21.96 lb (9.96 kg) (no interface modules, 1 power supply)
• Rack-mountable: Yes, 2 U
• Power supply (AC): 100-240 VAC, single 645 W or dual 645 W
• Maximum PoE power: 247 W redundant, or 494 W nonredundant
• Average power consumption: 85 W
• Input frequency: 50-60 Hz
• Maximum current consumption: 7.5 A @ 100 VAC with single PSU with PoE, 10.5 A @ 100 VAC with dual PSU with PoE
• Maximum inrush current: 45 A for half-cycle
• Average heat dissipation: 238 BTU/hr
• Maximum heat dissipation: 1449 BTU/hr
• Redundant power supply (hot swappable): Yes (up to maximum capacity of single PSU)
• Acoustic noise level (per ISO 7779 Standard): 51.8 dB
Environmental, Compliance, and Safety Certification • Operational temperature: 32° to 104° F (0° to 40° C)
• Nonoperational temperature: 4° to 158° F, (-20° to 70° C)
• Humidity (operating): 10% to 90% noncondensing
• Humidity (nonoperating): 5% to 95% noncondensing
• Mean time between failures (Telcordia model): 9.6 years with redundant power
• FCC classification: Class A
• RoHS compliance: Yes
Performance and Scale • Firewall performance (large packets) : 7 Gbps
• Firewall performance (IMIX) : 2 Gbps
• Firewall + routing pps (64 Byte) : 700 Kpps
• Firewall performance (HTTP) : 2 Gbps
• IPsec VPN throughput (large packets) : 1.0 Gbps
• IPsec VPN tunnels : 2000
• Application firewall : 2.0 Gbps
• Intrusion prevention system (IPS) : 800 Mbps
• Antivirus: 300 Mbps (Sophos antivirus)
• Connections per second: 27,000
• Maximum concurrent sessions: 375,000
• Maximum security policies: 8000
• Maximum users supported: Unrestricted
• Route table size (RIB/FIB) (IPv4 or IPv6): 1.5 million/750,000
• NAT rules: 6144
• MAC table size: 15,000
• Number of remote access/SSL VPN (concurrent) users: 500
• GRE tunnels: 1500
• Maximum number of security zones: 96
• Maximum number of virtual routers: 128
• Maximum number of VLANs: 3967
• AppID sessions: 65,000
• IPS sessions: 64,000
• URL filtering (URLF) sessions: 64,000

Interface Modules

SRX-GP-16GE-POE 16-port 10/100/1000BASE-T PoE XPIM
SRX-GP-8SFP 8-port GbE copper, fiber SFP XPIM
SRX-GP-DUAL-T1-E1 Dual T1/E1 GPIM
SRX-GP-QUAD-T1-E1 Quad T1/E1 GPIM
SRX-GP-1DS3-E3 1-port clear channel DS3/E3 GPIM single GPIM slot
SRX-MP-1T1E1-R 1 port T1E1, MPIM form factor supported on SRX320, SRX340, SRX345, SRX380, and SRX550M Services Gateways; ROHS compliant
SRX-MP-1VDSL2-R 1 port VDSL2 (backward compatible with ADSL/ADSL2+), MPIM form factor supported on SRX320, SRX340, SRX345, SRX380, and SRX550M Services Gateways; ROHS compliant
SRX-MP-1SERIAL-R 1 port Synchronous Serial, MPIM form factor supported on SRX320, SRX340, SRX345, SRX380, and SRX550M Services Gateways; ROHS compliant
SRX-MP-LTE-AA 4G/LTE MPIM support for 1, 3, 5, 7-8, 18-19, 21, 28, 38-41 LTE bands (for Asia and Australia); supported on SRX320, SRX340, SRX345, SRX380, and SRX550M Services Gateways
SRX-MP-WLAN-WW Wireless access point (Wi-Fi) MPIM for SRX320, SRX340, SRX345, SRX380, and SRX550M Services Gateways; supported for worldwide regulatory bands
SRX-MP-ANT-EXT Antenna extension cable for WLAN MPIM on SRX Series platforms

SRX550-645DP-M : SRX550M Services Gateway with 4 GB DRAM and 8 GB CF, 2 U height, 6 GPIM slots, 2 Mini-PIM slots, 6 10/100/1000BASET ports, 4GbE SFP ports, dual PS slots, and fans; ships with one 645 W DC power supply with 247 W PoE power (no power cord or rack-mount kit included)

Data sheet Juniper SRX550M Services Gateway
