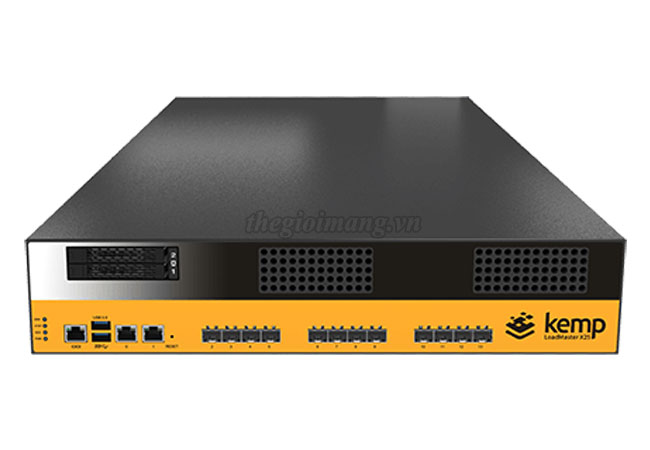

The LoadMaster X25 load balancer provides the most complete high-performance application delivery platform with dual power supplies and RAID storage for enhanced resilience. Max Balancer L4 Throughput Up To 26.2 Gbps, Max Balancer L7 Throughput Up To 25 Gbps, 1,000,000 L7 (http) requests per second, 525,000 L7 concurrent connections, 75,800,000 L4 concurrent connections, SSL Acceleration 2K Keys up to 20,000 TPS.
Thiết bị cân bằng tải Kemp LM-X25
Model | LM-X25 |
Support Subscription Tiers | All |
Performance | |
Application throughput (Layer 4) | 26.2 Gbps |
Application throughput (Layer 7) | 25 Gbps |
Bulk Encryption | 20 Gbps |
SSL TPS (2K Keys) | 20,000 |
Concurrent Layer 4 Connections | 75,800,000 |
Concurrent Layer 7 Connections | 525,000 |
Layer 7 HTTP requests/sec | 1,000,000 |
Layer 4 requests/sec | 2,000,000 |
Layer 4 connections/sec | 675,000 |
Hardware Platform | |
CPU | 2x Intel Xeon 4116 Silver @2.1GHz, 12C/ |
Memory (RAM Size) | 64GB |
Storage | 2 x 1TB HDD (RAID 1) |
Hardware SSL Acceleration | Yes |
Gigabit Ethernet Ports | 2 |
10 Gigabit Ports (SFP+) | 12 |
VGA Ports | 1 |
Console Ports | 1 RJ45 |
Rack Size | 2U |
Dimensions | 437 x 570 x 88mm (17.2 x 22.5 x 3.5 in) |
Weight | 35.2lbs / 16kg |
Storage Temperature | -4 to 167 °F (-20 to 75 °C) |
Operating Temperature | 32 to 104 °F (0 to 40 °C) |
Storage Humidity | 10% to 90% non-condensing |
Operating Relative Humidity | 10% to 90% non-condensing |
Max Altitude in Operational Mode | 16,404 feet (5,000 meters) |
Max Altitude in Non-Operational Mode | 30,000 feet (9,144 meters) |
Input Voltage and Frequency Ranges | 100-240VAC, 50-60Hz |
Hot-Swap, Redundant Power Supply | Yes |
Max power supply (W) | 2 x 700 |
Average Power Consumption (W) | 479,6 |
Total Amp Drawn (A) | 5.8 Max |
Heat Output (BTU) | 1635.5 Max |
Acoustic Noise (dB) | 71,4 |
