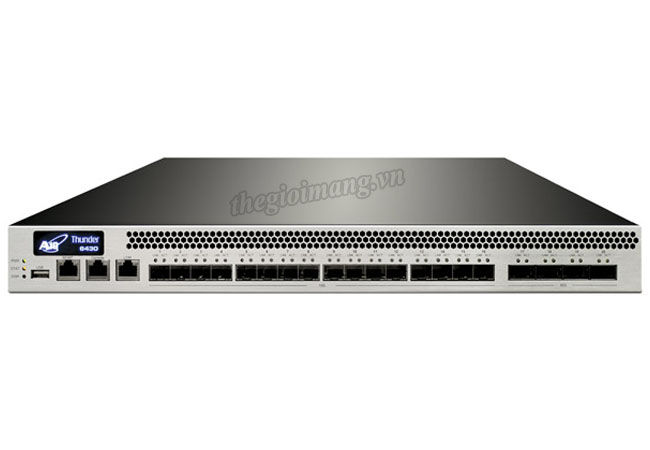

Thiết bị cân bằng tải Load Balancer A10 TH6430-010
| PERFORMANCE | |
| Application Throughput (L4/L7) | 150 Gbps / 145 Gbps |
| Layer 4 CPS | 5.3 Million |
| Layer 4 HTTP RPS | 31 Million |
| Layer 4 Concurrent Sessions | 256 Million |
| Layer 7 CPS (1:1) | 1.35 Million |
| SSL Bulk Throughput | 46 Gbps |
| SSL CPS | RSA (1K): 134K RSA (2K): 130K |
| DDoS Protection (SYN Flood) SYN/sec | 223 Million |
| Application Delivery Partitions (ADP) | 1,023 |
| NETWORK INTERFACE | |
| 1 GE Copper | 0 |
| 1 GE Fiber (SFP) | 0 |
| 1/10 GE Fiber (SFP+) | 16 |
| 40 GE Fiber (QSFP+) | 4 |
| Management Ports | 1 x Ethernet Mgmt port, 1 x RJ-45 console port, 1 x Lights Out Management |
| HARDWARE SPECIFICATIONS | |
| Processor | 2 x Intel Xeon 8-core |
| Memory (ECC RAM) | 128 GB |
| Storage | SSD |
| Hardware Acceleration | 4 x FTA-3 |
| SSL Security Processor ('S' Models) | Yes |
| Dimensions (inches) | 1.75 (H) x 17.5 (W) x 30 (D) |
| Rack Units (Mountable) | 1U |
| Unit Weight | 39 lbs |
| Power Supply (DC option available) | Dual 1100W RPS 80 Plus Platinum efficiency, 100 - 240 VAC, 50 – 60 Hz |
| Power Consumption (Typical/Max) | 590W / 680W |
| Heat in BTU/hour (Typical/Max) | 2,013 / 2,320 |
| Cooling Fan | Hot Swap Smart Fans |
| Operating Ranges | Temperature 0° - 40° C | Humidity 5% - 95% |
| Regulatory Certifications | FCC Class A, UL, CE, TUV, CB, VCCI, CCC, KCC, BSMI, RCM, EAC, FAC, NEBS | RoHS, CC EAL2+ |
Mã đặt hàng
| Part Number | Mô tả |
| TH6430-010 | Thunder 6430 ADC, 1U, 2x CPU, 4x 40 GF, 16x 10GF, 128 GB, SSD, LOM, 4x FTA/FPGA, S+R ASIC, (No H/W SSL) |
| TH6430-010-SSL | Thunder 6430S ADC, 1U, 2x CPU, 4x 40 GF, 16x 10GF, 128 GB, SSD, LOM, 4x FTA/FPGA, S+R ASIC, Quad Chip H/W SSL |
| TH6430-D10 | Thunder 6430 ADC, 1U, 2x CPU, 4x 40 GF, 16x 10GF, 128 GB, SSD, LOM, 4x FTA/FPGA, S+R ASIC, (No H/W SSL), DC Power |
| TH6430-D10-SSL | Thunder 6430S ADC, 1U, 2x CPU, 4x 40 GF, 16x 10GF, 128 GB, SSD, LOM, 4x FTA/FPGA, S+R ASIC, Quad Chip H/W SSL, DC Power |
