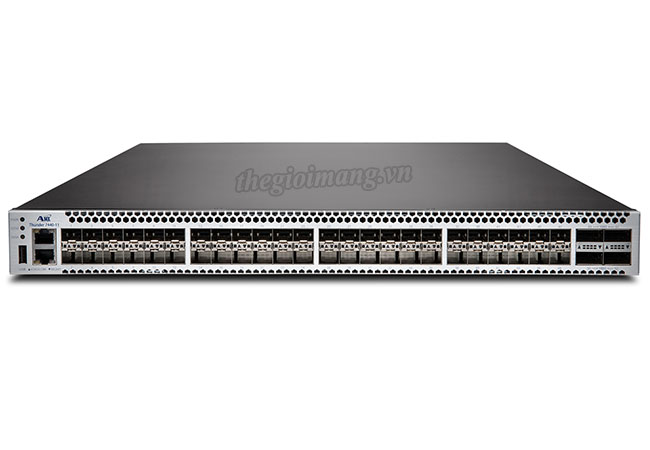

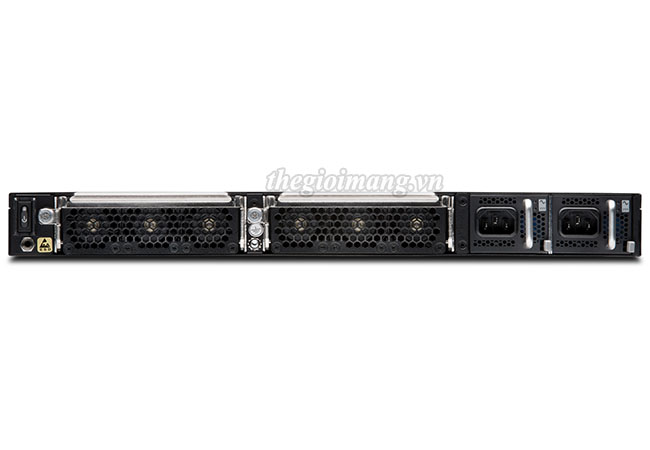

Thiết bị cân bằng tải Load Balancer A10 TH7440-011
| PERFORMANCE | |
| Application Throughput (L4/L7) | 220 Gbps / 200 Gbps |
| Layer 4 CPS | 10.5 Million |
| Layer 4 HTTP RPS | 44 Million |
| Layer 4 Concurrent Sessions | 256 Million |
| Layer 7 CPS (1:1) | 2.8 Million |
| SSL Bulk Throughput | 75 Gbps |
| SSL CPS | RSA (1K): 200K RSA (2K): 200K |
| DDoS Protection (SYN Flood) SYN/sec | 332 Million |
| Application Delivery Partitions (ADP) | 1,023 |
| NETWORK INTERFACE | |
| 1 GE Copper | 0 |
| 1 GE Fiber (SFP) | 0 |
| 1/10 GE Fiber (SFP+) | 48 |
| 40 GE Fiber (QSFP+) | 0 |
| 100 GE Fiber | 4 (QSFP28) |
| Management Ports | 1 x Ethernet Mgmt port, 1 x RJ-45 console port, 1 x Lights Out Management |
| HARDWARE SPECIFICATIONS | |
| Processor | 2 x Intel Xeon 18-core |
| Memory (ECC RAM) | 128 GB |
| Storage | SSD |
| Hardware Acceleration | 3 x FTA-4 |
| SSL Security Processor ('S' Models) | Yes |
| Dimensions (inches) | 1.75 (H) x 17.5 (W) x 30 (D) |
| Rack Units (Mountable) | 1U |
| Unit Weight | 37 lbs |
| Power Supply (DC option available) | Dual 1500W RPS 80 Plus Platinum efficiency, 100 - 240 VAC, 50 – 60 Hz |
| Power Consumption (Typical/Max) | 820W / 950W |
| Heat in BTU/hour (Typical/Max) | 2,798 / 3,242 |
| Cooling Fan | Hot Swap Smart Fans |
| Operating Ranges | Temperature 0° - 40° C | Humidity 5% - 95% |
| Regulatory Certifications | FCC Class A, UL, CE, GS, CB, VCCI, CCC^ , KCC^ , BSMI, RCM | RoHS |
Mã đặt hàng
| Part Number | Mô tả |
| TH7440-011 | Thunder 7440-11 ADC, 1U, 2x CPU, 4x 100GF(QSFP28), 48x 10GF, 128GB, SSD, LOM, 3x FTA/FPGA, S+R ASIC, No H/W SSL |
| TH7440-D11 | Thunder 7440-11 ADC, 1U, 2x CPU, 4x 100GF(QSFP28), 48x 10GF, 128GB, SSD, LOM, 3x FTA/FPGA, S+R ASIC, No H/W SSL,DC Power |
