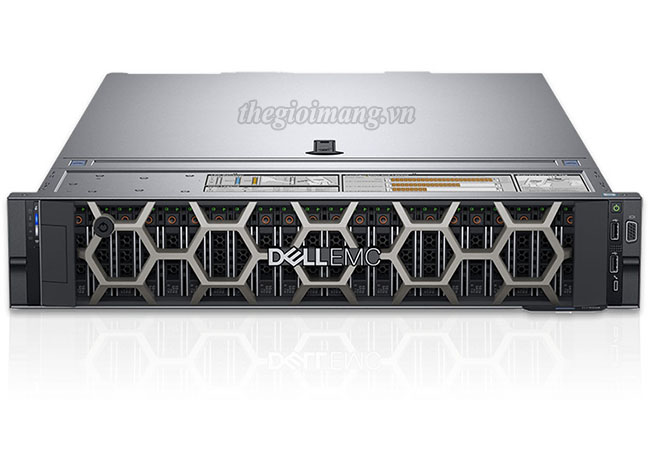

Máy chủ Dell PowerEdge R750xa – 8×2.5″ Hot Plug
Máy Chủ Dell PowerEdge R750xa – 8×2.5″ Hot Plug
Bảo hành 36 tháng
Data sheet Dell PowerEdge R750xa
Cấu hình kỹ thuật chung PowerEdge R750xa
| Server | PowerEdge R750xa | ||
|---|---|---|---|
| Idear for | • AI/ML/DL Training and Inferencing • High-Performance Computing • Virtualization |
||
| Processor | Up to two 3rd Generation Intel Xeon Scalable processors with up to 40 cores per processor | ||
| Memory | • 32 DDR4 DIMM slots, supports RDIMM 2 TB max or LRDIMM 4 TB max, speeds up to 3200 MT/s • Up to 16 Intel Persistent Memory 200 series (BPS) slots, 8 TB max • Supports registered ECC DDR4 DIMMs only |
||
| Storage controllers | • Internal controllers: PERC H745, HBA355I, S150, H345, H755, H755N • Boot Optimized Storage Subsystem (BOSS-S2): HW RAID 2 x M.2 SSDs 240 GB or 480 GB • External PERC (RAID): PERC H840, HBA355E |
||
| Drive bays | Front bays: • Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB • Up to 6 x 2.5-inch NVMe (SSD) direct-attach max 92.1 TB |
||
| Power supplies | • 1400W Platinum AC/240 mixed mode • 1800 W Titanium HLAC/240 mixed mode • 2400 W Platinum AC/240 mixed mode • 2800 W Titanium HLAC/240 mixed mode |
||
| Cooling options | Air cooling, optional processor liquid cooling | ||
| Fans | • High performance GOLD fan • Up to six hot plug fans |
||
| Dimension | • Height – 86.8 mm (3.41 inches) • Width – 482.0 mm (18.97 inches) • Depth – 894.8 mm (35.22 inches) - without bezel 908.64 mm (35.77 inches) - with bezel |
||
| Form Factor | 2U rack server | ||
| Embedded management | • iDRAC9 • iDRAC Service Module • iDRAC Direct • Quick Sync 2 wireless module |
||
| Bezel | Optional LCD bezel or security bezel | ||
| OpenManage Software | • OpenManage Enterprise • OpenManage Power Manager plugin • OpenManage SupportAssist plugin • OpenManage Update Manager plugin |
||
| Mobility | OpenManage Mobile | ||
| Integrations and Connections |
|
||
| Security | • Cryptographically signed firmware • Secure Boot • Secure Erase • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
||
| Embedded NIC | 2 x 1 GbE LOM | ||
| Network Options | 1 x OCP 3.0 (x8 PCIe lanes) | ||
| GPU Options | Up to four single-width 150 W or four double-width 300 W in the front and two single-width 75 W at the rear | ||
| Ports | Front Ports: • 1 x Dedicated iDRAC Direct micro-USB • 1 x USB 2.0 • 1 x VGA Rear Ports: • 1 x USB 2.0 • 1 x Serial (optional) • 1 x USB 3.0 • 2 x RJ-45 • 1 x VGA (optional for liquid cooling configuration) Internal Ports: • 1 x USB 3.0 |
||
| PCIe | Up to 8 x PCIe Gen4 slots (up to 6 x16 + 2 x8) | ||
| Operating System and Hypervisors | • Canonical Ubuntu Server LTS • Citrix Hypervisor • Microsoft Windows Server with Hyper-V • Red Hat Enterprise Linux • SUSE Linux Enterprise Server • VMware ESXi |
