Name: Cisco MS450-12-HW
Brand: Cisco
SKU: MS450-12-HW
Rating: 5 (23 reviews)

Mô tả sản phẩm

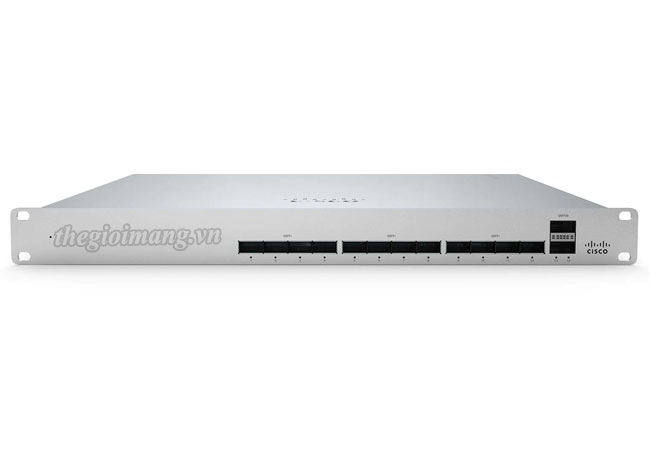

Thiết bị chuyển mạch Switch Meraki MS450-12-HW

Mã sản phẩm	MS450-12-HW
Interface	1x RJ45 Management port
	12x 40G QSPF+, 2 x 100G QSFP28 uplinks
	2x 100G QSFP28 stacking ports
Switching Capacity	1.36 Tbps
Stacking Bandwidth	400 Gbps
Forwarding rate	654 Mpps
Jumbo frame support	9578 bytes of MTU
Physical Dimensions (H x W x D)	1.72” x 19.08” x 18.85” (4.37cm x 48.46cm x 47.88cm)
Weight	13.80 lb (6.26 kg)
Idle / Full (with Combined Power)	57 / 138 W
Redundant / Combined Power	740 / 1440 W
Power Supply Configuration	Hot-swappable
Supported Power Supply	2 x 250W PSU*
Management	Email alerts for switch management
	Remote troubleshooting tools
	Manage ports from a GUI-based dashboard
	Zero-touch provisioning
	Per-port and per-client usage statistics
	Secure, user-scheduled firmware updates
Remote Diagnostics	Email, SMS and Mobile push notification alerts
	Ping, traceroute, cable testing, and link failure detection with alerting
	Remote packet capture
	Dynamic and interactive network discovery and topology
	Combined event and configuration change logs with instant search
Scalable Stacking	Physically stack up to 8 switches with 400 Gbps of stacking bandwidth on all models
Scalable Stacking	Virtual stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
Ethernet Switching Capabilities	Layer 3
	Warm spare redundancy (VRRP)
	OSPF Routing
	MAC forwarding entries, up to 32K
	DHCP Server, DHCP Relay
	802.1X Authentication
	DHCP Snooping
	STP Enhancements
	IPv4 and IPv6 ACLs
Security	Integrated multi-factor authentication for Dashboard management
	Role-based access control (RBAC) with granular device and configuration control
	Corporate wide password policy enforcement
	IEEE 802.1X RADIUS and MAB, hybrid authentication and RADIUS server testing
	Single-Host/Multi-Domain/Multi-Host/Multi Authentication
	Port security: Sticky MAC, MAC whitelisting
	DHCP snooping, detection and blocking, Dynamic ARP Inspection
	IPv4 and IPv6 ACLs
Performance	Non-blocking fabric
	2.5 microsecond latency
	Jumbo frame support (9600 byte Ethernet frame)
Layer 3	Static routing, OSFPv2 (with support for up to 16 ECMP Routes)
	Multicast routing [PIM-ASM]
	Warm Spare (VRRP)
	DHCP Server, DHCP Relay
Power	Power input: 100 - 240 VAC, 47-63 Hz
Power	Power consumption: 7-138 W
Mounting	1U rack-mountable
Mounting	4 post rack mount support
Environment	Operating temperature: 0°C to 45°C
	Humidity: 5 to 95% non-condensing
	Variable speed fans
MTBF Rating	436,776 hrs

Vui lòng liên hệ để có giá tốt nhất

Xem thêm

Thông số kỹ thuật

MS450-12-HW : Meraki MS450-L3 Stack Cld-Mngd 12x40GE Aggregation Switch

Data Sheet Switch Meraki MS450-12-HW

Thông số kỹ thuật:

Interfaces
- 12 × 40G QSFP+
- 2 × 100G QSFP28
- 2 × stacking interfaces
- 1 × RJ45 management port
- Auto-negotiation and crossover detection
Management
- Managed via the Web with the Meraki cloud management platform
- Integrated with Meraki Wireless and complete portfolio of IT products and solutions
- Zero-touch remote provisioning (no staging needed)
- Detailed historical per-port and per-client usage statistics
- Operating system, device, and hostname fingerprinting
- SNMP and SYSLOG support for integration with other network management solutions
- Automatic firmware upgrades with scheduling control
Remote Diagnostics
- Email, SMS, and Mobile push notification alerts
- Ping, traceroute, cable testing, and link failure detection with alerting
- Remote packet capture
- Dynamic and interactive network discovery and topology
- Combined event and configuration change logs with instant search
Stacking
- Physical stacking of up to 8 switches with 400 Gbps stacking bandwidth on all models
- Virtual Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
Ethernet Switching Capabilities
- 802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping)
- 802.1Q VLAN and trunking support for up to 4,094 VLANs
- 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP)
- STP Enhancements: BPDU guard, Root guard, Loop guard, UDLD
- Broadcast storm control
- 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP)
- 802.3ad Link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches
- Port mirroring
- IGMP snooping for multicast filtering
- MAC Forwarding: 80K
Security
- Integrated multi-factor authentication for Dashboard management
- Role-based access control (RBAC) with granular device and configuration control
- Corporate wide password policy enforcement
- IEEE 802.1X RADIUS and MAB, hybrid authentication and RADIUS server testing
- Single-Host/Multi-Domain/Multi-Host/Multi Authentication
- Port security: Sticky MAC, MAC whitelisting
- DHCP snooping, detection and blocking, Dynamic ARP Inspection
- IPv4 and IPv6 ACLs

Performance
- Non-blocking fabric
- Switching capacity: 1.36 Tbps
- 1.2 microsecond latency
- Jumbo frame support (9578 ethernet frame)
Layer 3
- Static routing, OSFPv2
- Multicast routing
- Warm spare (VRRP)
- DHCP Relay, DHCP Server
Power
- Power input: 100-240 VAC, 47-63Hz
- Power consumption: 57-138 W
Mounting
- Rack-mountable with included rack mount hardware
- Front-to-back airflow
Environment
- Operating temperature: 0°C to 45°C
- Humidity: 5 to 95% non-condensing
Regulatory
- CSA (US)
- IC (Canada)
- CE (Europe)
- C-Tick (Australia/New Zealand)
- RoHS
Warranty
- Full lifetime hardware warranty with advanced replacement included
MTBF Rating (at 25°C)
- MS450-12: 436,776 hrs
Physical Specifications (H × W × D)
- MS450-12
  - 1.72” × 19.08” × 18.85” (4.37 × 48.46 × 47.88cm)
  - 14.00 lbs (6.35 kg)

Licensing:

LIC-MS450-12-1YR
LIC-MS450-12-3YR
LIC-MS450-12-5YR

Xem thêm thông số kỹ thuật
