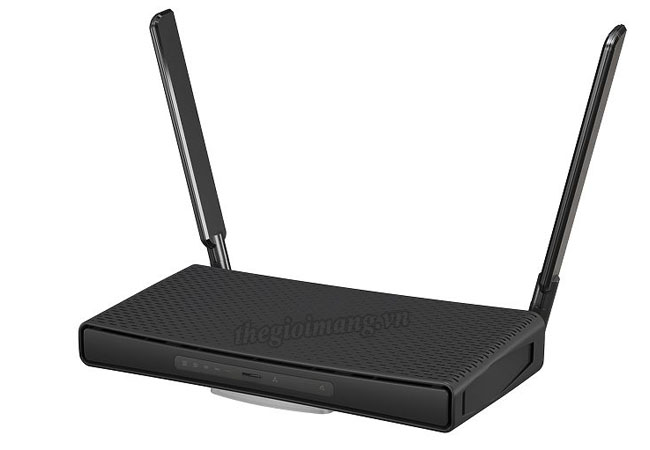

Mikrotik Wireless hAP ac3 (RBD53iG-5HacD2HnD): A wireless dual-band router with 5 Gigabit Ethernet ports and external high gain antennas for more coverage. Standard of home access points.
Thiết bị Mikrotik Wireless hAP ac3 (RBD53iG-5HacD2HnD)
| Specifications | |
| Product code | RBD53iG-5HacD2HnD |
| Architecture | ARM 32bit |
| CPU | IPQ-4019 |
| CPU core count | 4 |
| CPU nominal frequency | 716 MHz |
| Dimensions | 251 x 129 x 39 mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 256 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| Tested ambient temperature | -40°C to 70°C |
| MTBF | Approximately 100'000 hours at 25C |
| Wireless capabilities | |
|---|---|
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 3 |
| Wireless 2.4 GHz chip model | IPQ-4019 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| Wireless 5 GHz Max data rate | 867 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 5.5 |
| Wireless 5 GHz chip model | IPQ-4019 |
| Wireless 5 GHz generation | Wi-Fi 5 |
| AC speed | AC1200 |
| Ethernet | |
| 10/100/1000 Ethernet ports | 5 |
| Number of 1G Ethernet ports with PoE-out | 1 |
| Peripherals | |
| Number of USB ports | 1 |
| USB Power Reset | ✔ |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
| Powering | |
| PoE in | Passive PoE |
| PoE in input Voltage | 18-28 V |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-28 V |
| Max power consumption | 30 W |
| Max power consumption without attachments | 12 W |
| PoE-out | |
| PoE-out ports | Ether5 |
| PoE out | Passive PoE |
| Max out per port output (input < 30 V) | 0.5 A |
| Max total out (A) | 0.5 A |
| Certification & Approvals | |
| Certification | CE, FCC, IC, EAC, ROHS |
| Other | |
| Mode button | ✔ |
Data sheet Mikrotik wAP ac BE (RBwAPG-5HacT2HnD-BE)
Mikrotik hAP ac3 (RBD53iG-5HacD2HnD)
hAP ac3 with 4-core 716 MHz CPU, 256MB RAM, 5 x Gigabit LAN (PoE-out on port#5), two wireless interfaces (built-in 2.4Ghz 802.11b/g/n two chain, built-in 5Ghz 802.11ac two chain), 3dBi 2.4GHz external antenna, 5.5dBi 5GHz external antenna, tower/desktop case, USB, PSU, RouterOS L4
