1 x DB9 male for RS232
1 x 4-Pin Terminal block for RS422 / RS485
Asynchronous serial data rates up to 921600bps
Software Protocol supports: Modbus TCP, Modbus RTU, Modbus ASCII, IP, ARP, DHCP and DNS

Giá bán : Liên hệ để có giá tốt
Tình trạng : Còn hàng

Thông số kỹ thuật
Tài liệu liên quan

Thiết bị Cổng Modbus Planet IMG-2102T

Model

IMG-2102T

Serial Interface

Serial Ports

1 x DB9 male for RS232
1 x 4-Pin Terminal block for RS422 / RS485

Serial Standards

RS232 / 4-wire RS422 or RS485 / 2-wire RS485

Baud Rate (Data Rate)

50bps to 921Kbps

Data Bits

5, 6, 7, 8

Stop Bit

1, 1.5, 2

Parity Type

Odd, Even, None, Space, Mark

Flow Control

RTS/CTS and DTR/DSR (RS232 only)
XON/XOFF

Signals

RS232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS422: Tx+, Tx-, Rx+, Rx-, GND
4-wire RS485: Tx+, Tx-, Rx+, Rx-, GND
2-wire RS485: Data A (+), Data B (-), GND

Pin Assignment

Serial Port

Pin	RS232	RS422 RS485-4W	RS485-2W
1	DCD	TxD+	--
2	RxD	TxD-	--
3	TxD	RxD-	Data-
4	DTR	RxD+	Data+
5	GND	GND	GND
6	DSR	--	--
7	RTS	--	--
8	CTS	--	--
9	--	--	--

4-pin Terminal Block

Pin	RS422 RS485-4W	RS485-2W
1	TxD+(A)	--
2	TxD-(B)	--
3	RxD-(B)	Data-(B)
4	RxD+(A)	Data+(A)

Operation Mode

RTU Master/RTU Slave/ASCII Master/ASCII Slave
Master mode: Supports up to 32 TCP slave connection requests
Slave mode: Supports up to 32 TCP master connection requests

Ethernet Interface

Ethernet Port

1 x Duplex SC

Standard

100BASE-FX

Connector

Duplex SC

Fiber Mode

Multi-mode

Transmission Mode

Full duplex

Distance

2km

Cable

50/125μm or 62.5/125μm multi-mode fiber cable

ESD Protection

6KV

Surge Protection

2KV

Hardware

Installation

DIN-rail kit and wall-mount ear

Enclosure

IP 30 metal

Dimensions (W x D x H)

32 x 87.8 x 135 mm

Weight

386g

LED Indicators

System: Power 1, Power 2, Fault, SYS
SFP: Link/Active
Serial Port: Tx and Rx

Power Requirements

9~48V DC / 24V AC, redundant power with reverse polarity protection

Power Consumption

Full Loading
9VDC: 0.56A (5 watts)
12VDC: 0.42A (5 watts)
24VDC: 0.23A (5.5 watts)
48VDC: 0.13A (6 watts)

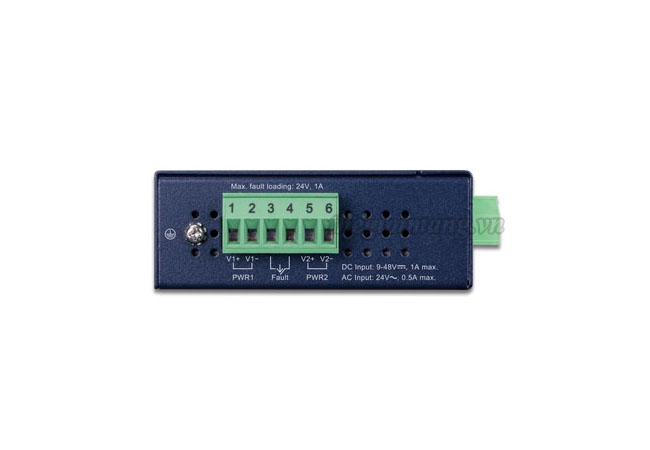

Connector

Removable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2

Alarm

Provides one relay output for power failure
Alarm relay current carry ability: 1A @ DC 24V

Reset Button

< 5 sec: System reboot
> 5 sec: Factory default

Environments & Standards

Operating Temperature

-40 ~ 75 degrees C

Storage Temperature

-40 ~ 85 degrees C

Humidity

5 ~ 95% (non-condensing)

Regulatory Compliance

FCC Part 15 Class A,
CE Certification Class A
RoHS

Stability Testing

IEC60068-2-32 (Free fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)

Data sheet Planet IMG-2105AT / IMG-2102T / IMG-2102TS

Software Specifications	Planet IMG-2102T Industrial 1-Port RS232/RS422/RS485 Modbus Gateway (1 x 100FX SC, MM/2km, -40~75 degrees C)
Management
Management Interfaces	Web management Telnet Console management Windows-based MB VCOM Utility management SNMPv1, v2c / SNMP Trap UNI-NMS monitoring PLANET Smart Discovery Utility
IP Version	IPv4 and IPv6
Operation Mode	RTU Master RTU Slave ASCII Master ASCII Slave
Virtual COM Utility Platform Supports	Windows-based only: Windows XP Windows Server 2003 Windows 7 Windows Server 2008 Windows 8 (Must install the latest version of WinPcap) Windows Server 2012 (Must install the latest version of WinPcap) Windows 10
Fault Alarm	Record: System log / SNMP trap
Time	NTP
Security	Allow maximum 4 accessible IP address hosts/ranges
SNMP MIBs	RFC1213 MIB-II RFC1317 RS232-like MIB
