Mô tả sản phẩm

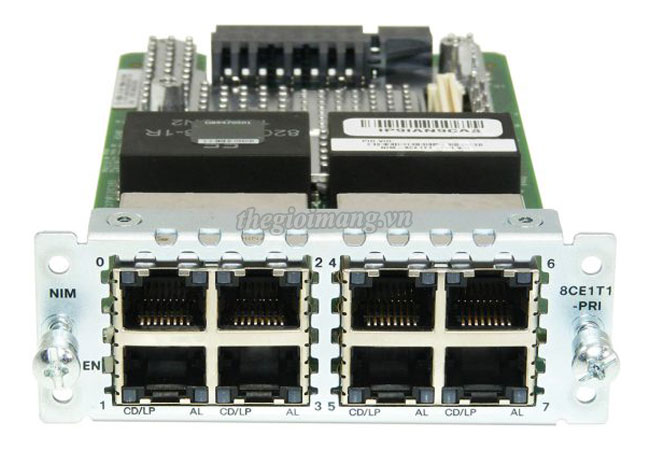

Module mở rộng cho Router Cisco NIM-8CE1T1-PRI

Model	NIM-8CE1T1-PRI
T1 Network Interface
Transmit bit rate	1.544 Mbps ±50 bps/32 ppm
Receive bit rate	1.544 Mbps ±50 bps/32 ppm
Line code	Alternate mark inversion (AMI) and binary 8-zero substitution (B8ZS)
AMI ones density	Enforced for n x 56-kbps channels
Framing format	D4 (Super Frame [SF]) and Extended Super Frame (ESF)
Output level (line build-out [LBO])	0, -7.5 or -15 dB
Input level	+1 dB0 down to -24 dB0
Data-terminal-equipment (DTE) interface (WIC mode)	Fractional service
DTE interface (VIC mode)	G.704 or structured
Data-communications-equipment (DCE) interface	G.704 or structured
E1 Network Interface
Transmit bit rate	2.048 Mbps ±100 bps/50 ppm
Receive bit rate	2.048 Mbps ±100 bps/50 ppm
Data rate	1.984 Mbps (framed mode) per E1 port
Clocking	Internal and loop (recovered from network)
E1 national bits	Fixed (nonconfigurable)
Encoding	High-density bipolar three (HDB3)
DTE interface (WIC mode)	Fractional service
DTE interface (VIC mode)	G.704 or structured
DCE interface	G.704 or structured
Dimensions (H x W x D)	1.25 x 3.50 x 7.24 in. (3.18 x 8.89 x 18.39 cm)
Environmental	● Operating temperature: 0 to 50°C (32 to 122°F) ● Storage temperature: -20 to +65°C (-4 to 148°F) ● Relative humidity: 10 to 85% noncondensing operating; 5 to 95% noncondensing, nonoperating
T1 Compliance (partial list)	● TIA-968-A ● CS-03 ● Jate ● ANSI T1.403
E1 Compliance (partial list)	● TBR4, TBR12, and TBR13 ● ITU-T G.703, G.704, G.823, and I.431 ● S016 (Australia)
Weight	0.40 lb (181g)
