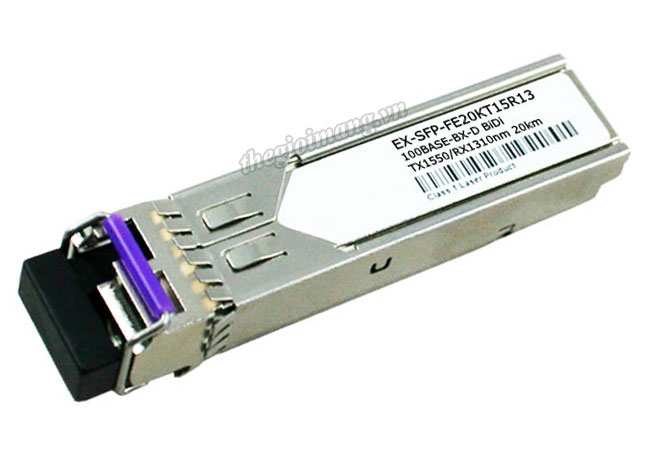

Juniper EX-SFP-FE20KT15R13 - SFP 100Base-BX Fast Ethernet Optics, Tx 1550nm/Rx 1310nm for 20km transmission.
Module quang Juniper EX-SFP-FE20KT15R13
| Model | EX-SFP-FE20KT15R13 |
| Part Number | 740-026193 |
| Speed | Fast Ethernet |
| Breakout Capable | No |
| Transceiver Type | SFP |
| Product Type | Optical Transceiver |
| Connector | Duplex LC |
| Monitoring Available | Yes |
| Digital Optical Monitoring | Yes |
| Signaling rate, each lane | 100 Mbps |
| Transmitter fibers | Single |
| Transmitter wavelengths (range) | 1550 nm |
| Receive lane wavelengths (range) | 1310 nm |
| Transmitter output power, each lane (minimum) | –14 dBm |
| Transmitter output power, each lane (maximum) | –8 dBm |
| Receiver input power, each lane (minimum) | –45 dBm |
| Receiver input power, each lane (maximum) | –8 dBm |
| Cable type | SMF |
| Core size/cladding | 9/125 µm |
| Effective modal bandwidth | — |
| Distance | 20 km |
| Operating Temperature (range) | 0° C to 70° C |
| Storage temperature | –40° C to 85° C |
