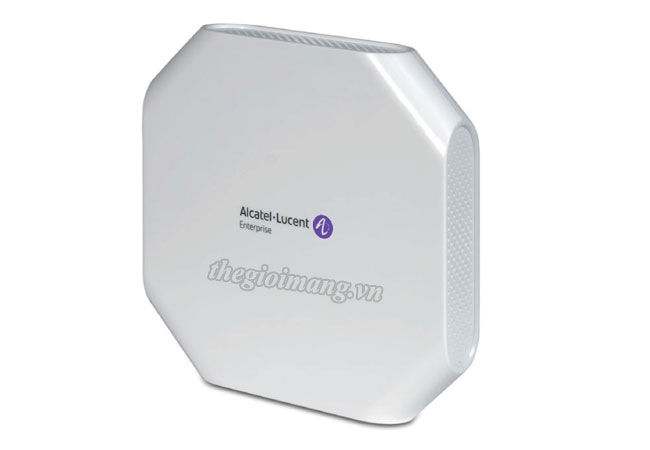

OmniAccess Stellar AP1101 (OAW-AP1101-RW)

Alcatel-Lucent OmniAccess Stellar AP1101 Dual radio 2x2 802.11a/b/g/n/ac wireless access point with support for 802.11 b/g/n and 802.11 a/n/ac operation ● dual-band integral antenna ● 1 x 10/100/1000Base-T (RJ-45) Ethernet interface (supports 802.3af Power over Ethernet) ● 1 x 48V DC power interface, console port.
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Thiết bị phát sóng Wifi OmniAccess Stellar AP1101

Model OAW-AP1101-RW
Interfaces • 1× 10/100/1000 Mb/s full/half-duplex Ethernet (RJ-45)
• PoE-PD: 48 V DC (nominal) 802.3af or 802.3at PoE
• Security lock slot
• Reset button: Factory reset
Antenna • Built-in 2×2:2, 3.4 dBi @ 2.4 GHz, 2.55 dBi @ 5 GHz
Power • Maximum (worst case) power consumption:
¬ 10 W (802.3at PoE or DC)
• Direct DC source:
¬ 48 V DC nominal, ± 5%
• Power over Ethernet (PoE):
¬ 48 V DC (nominal) 802.3af/802.3at compliant source
¬ When both power sources are available, DC power takes priority
Mounting Wall mount, ceiling tile and desktop
Environmental • Operating:
¬ Temperature: 0°C to 45°C  (+32°F to +113°F)
¬ Humidity: 5% to 95% non-condensing
• Storage and transportation:
¬ Temperature: -40°C to +70°C (-40°F to +158°F)
Dimensions/weight • Single AP excluding packing box and accessories:
¬ 155 mm (W) x 155 mm (D) x  28 mm (H)
¬ 6.10 in (W) x 6.10 in (D) x  1.10 in (H)
¬ 270 g (0.6 lb)
• Including AP, packing box and accessories:
¬ 185mm (W) x 172mm (D) x 57mm (H)
¬ 7.28” in (W) x6.77 in (D) x 2.24 in (H)
¬ 467 g (1.0 lb)

OAW-AP1101-RW : OmniAccess Stellar AP1101 wireless access point. Dual radio 2x2 802.11a/b/g/n/ac wireless access point with support for 802.11 b/g/n and 802.11 a/n/ac operation, dual-band integral antenna, 1 x 10/100/1000Base-T (RJ-45) Ethernet interface (supports 802.3af Power over Ethernet), 1 x 48V DC power interface, console port.

Data sheet Alcatel-Lucent OmniAccess Stellar AP1101 Indoor wireless access point
