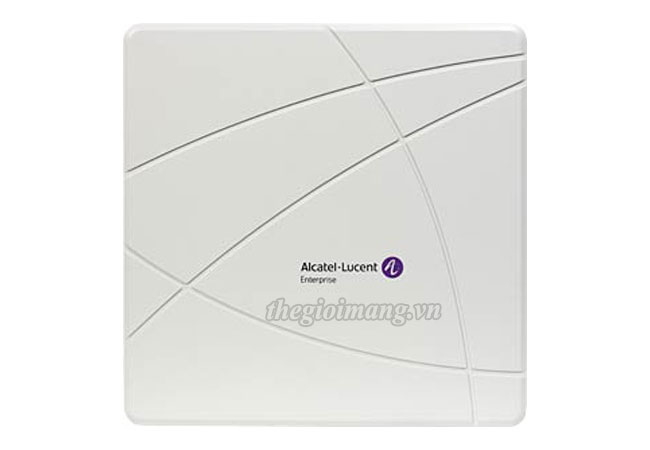

OmniAccess Stellar AP1251 (OAW-AP1251-RW)

OAW-AP1251-RW - Alcatel-Lucent AP1251 Outdoor 802.11ac Wave 2 Access Point :

  • Dual radio 802.11n 2x2:2 and 802.11ac 2x2:2
  • Integrated antenna
  • 1 x 10/100/1000Base-T port, PoE
  • 1 x 10/100/1000Base-T port
  • Operating Temperature: -40°C to 65°C
  • IP67
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Thiết bị Wi-Fi Alcatel-Lucent OmniAccess Stellar AP1251 Outdoor Access Point (OAW-AP1251-RW)

Model AP1251 (OAW-AP1251-RW)
Radio specification • AP type: Outdoor, dual radio,5 GHz 802.11ac 2x2:2 MU-MIMO and 2.4 GHz 802.11n 2x2:2 MIMO
• 5 GHz: 2*2 MIMO with two spatial stream, up to 867 Mb/s wireless data rate
• 2.4 GHz: 2*2 MIMO with two spatial stream, up to 400 Mb/s wireless data rate to individual 2x2 VHT40 client devices (300 Mb/s for HT40 802.11n client devices)
Interfaces • 1x 10/100/1000Base-T auto-sensing (RJ-45) port, Power over Ethernet (PoE)
• 1x 10/100/1000Base-T auto-sensing (RJ-45) port
• 1x management console port (Micro-USB)
• Reset button: Factory reset
Antenna • Built-in 2×2:2 @ 2.4GHz, 2x2:2 @ 5GHz
• Integrated dual-band omni-directional antennas for 2x2 MIMO with maximum antenna gain of 8.46 dBi in 2.4 GHz and 6.62 dBi in 5 GHz.
Power • Maximum (worst case) power consumption:
 ¬ <11.8W (802.3af PoE)
 ¬ Maximum power consumption in idle mode: 5.3 W
• Power over Ethernet (PoE): 48 V DC (nominal) 802.3af source
Mounting • Pole/wall mounting (mounting kit shipped by default with the AP)
Environmental • Operating:
 ¬ Temperature: -40°C to 65°C
 ¬ Humidity: 5% to 95% non-condensing
• Storage and transportation:
 ¬ Temperature: -40°C to +85°C
• Chassis rating: IP67
• Wind resistance:
 ¬ Up to 100 MPH sustained winds¬Up to 165 MPH wind gusts
Dimensions/weight • Single AP excluding packing box and accessories:
 ¬ 243 mm (W) x 243 mm (D) x 85 mm (H)
 ¬ 2230 g
• Single AP including packing box and accessories:
 ¬ 344 mm (W) x 341 mm (D) x 220 mm (H)
 ¬ 4025 g

OAW-AP1251-RW : OmniAccess Stellar AP1251 outdoor mid-end 802.11ac Wave 2 MU-MIMO access point. Dual radio 802.11n 2x2:2 and 802.11ac 2x2:2 integrated antenna. 2x 10/100/1000Base-T (RJ-45) Ethernet Interface, 1 x micro USB console port. Includes outdoor mounting kit for pole/wall mounting.

Data sheet Alcatel-Lucent OmniAccess Stellar AP1251 Outdoor 802.11ac Wave 2 wireless access point
