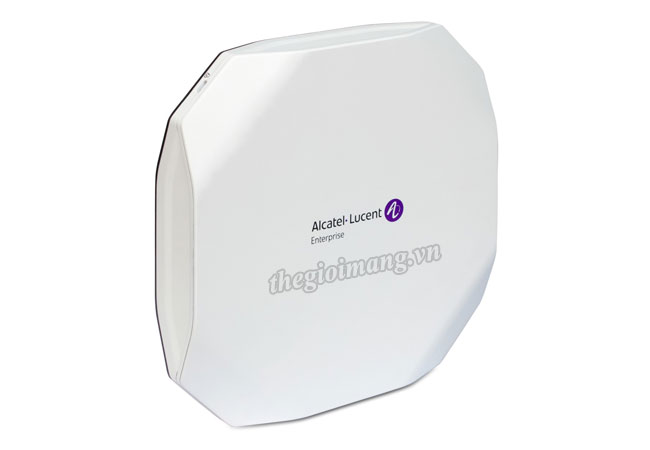

OmniAccess Stellar AP1321 (OAW-AP1321-RW)

Alcatel-Lucent OmniAccess Stellar AP1321 Wi-Fi 6 Indoor AP with four radios – Dual radio 5GHz 4x4:4 / 2.4GHz 2x2:2, dedicated scanning radio, and integrated BLE/Zigbee radio ● Integrated Omni Directional antenna ● Interfaces 2.5GbE RJ-45, 1GbE RJ-45, USB, 48V DC Power
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Thiết bị phát sóng Wifi OmniAccess Stellar AP1321

Model OAW-AP1321-RW
Radio Specification • AP type: Indoor, integrated four radios
• Dual Radio, 5 GHz 802.11ax 4x4:4 and 2.4 GHz 802.11ax 2x2:2
¬ 5 GHz: 4x4:4 up to 2.4Gbps wireless data rate to individual 4SS HE80 802.11ax client devices. 2.4 GHz: 2x2:2 up to 573Mbps wireless data rate to individual 2SS HE40 802.11ax client devices
Interfaces • 1x 10BASE-Te/100BASE-TX/1000BASE-T/2500BASE-T IEEE 802.3 compliant autosensing (RJ-45) port, ENET0, Power over Ethernet (PoE) 802.3at compliant
• 1x 10/100/1000 BASE-T IEEE 802.3 compliant auto-sensing (RJ-45) port, ENET1, Power over Ethernet (PoE) 802.3at compliant
• 1x USB 2.0 Type A (5V, 500mA)
• Reset button: Factory reset
Visual Indicators (Tri-color LED) • For system and radio status
¬ Red flashing: System abnormal, link down
¬ Red light: System startup
¬ Red and blue rotate flashing: System running, OS upgrading
¬ Blue light: System running, dual bands working
¬ Green flashing: System running, no SSID created
¬ Green light: System running, single band working
¬ Red, blue and green rotate flashing
¬ System running, use for location of an AP
Security • Integrated Trusted Platform Module (TPM 2.0) for secure storage of credentials and keys
• 802.11i, WPA2, WPA3, Enterprise with CNSA Option, Personal (SAE), Enhanced Open (OWE)
• 802.1X
• WEP, Advanced Encryption Standard (AES), Temporal Key Integrity Protocol (TKIP)
• Firewall: ACL, wIPS/wIDS and DPI application policy enforcement with OmniVista
• Portal page authentication
Antenna • AP1321: 2×2:2 @ 2.4GHz, 4x4:4 @ 5GHz
¬ Integrated omni-directional antennas with maximum antenna gain of 3.5dBi in 2.4 GHz and 3.7dBi in 5 GHz
Power • Supports direct DC power and Power over Ethernet (PoE)
• When both power sources are available, DC power takes priority over PoE
• Direct DC source:
¬ 48 V DC nominal, +/- 5%
• Power over Ethernet (PoE):
¬ IEEE 802.3af/at compliant source
• Maximum (worst case) power consumption:
¬ 24.8W (input IEEE 802.3at POE); Unrestricted functionality
¬ 11W (input IEEE 802.3af POE); The USB port is disabled, and both Wi-Fi radios will operate in 2x2:2 mode
• Maximum power consumption in idle mode:
¬ 9W
Mounting • Ceiling/wall mounting (Mount kit needs to be ordered separately)
Environmental • Operating:
¬ Temperature: 0°C to 50°C (-32°F to +122°F)
¬ Humidity: 5% to 95% non-condensing
• Storage and transportation: Temperature: -40°C to +70°C (-40°F to +158°F)
Dimensions/Weight • Single AP excluding packing box and accessories:
¬ 180mm (W) x 180mm (D) x 36mm (H) - 7.08” (W) x 7.08” (D) x 1.41” (H)
¬ 751g/1.66lb
• Single AP including packing box and accessories:
¬ 228mm (W) x 198mm (D) x 66mm (H) - 8.97” (W) x 7.79” (D) x 2.59” (H)
¬ 978g/2.16lb

OAW-AP1321-RW : OmniAccess Stellar AP1321. Wi-Fi 6 Indoor AP with four radios – Dual radio 5GHz 4x4:4 / 2.4GHz 2x2:2, dedicated scanning radio, and integrated BLE/Zigbee radio. Integrated Omni Directional antenna, interfaces 2.5GbE RJ-45, 1GbE RJ-45, USB, 48V DC Power. AP mount kit to be ordered separate-ly.

Data sheet Alcatel-Lucent OmniAccess Stellar AP1320 WLAN Access Points - Indoor 802.11 ax (Wi-Fi 6)
