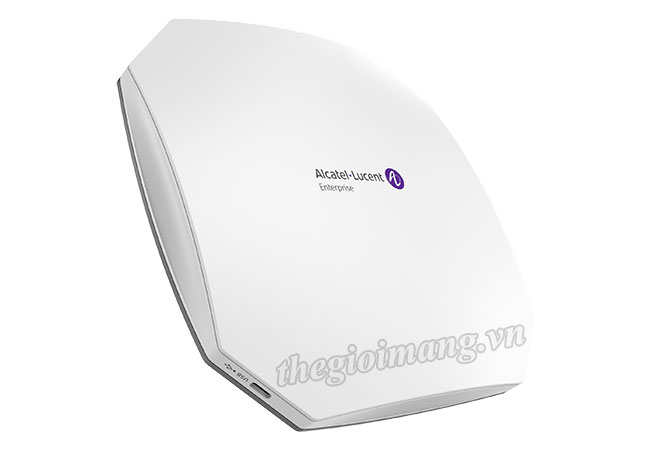

OAW-AP1511-RW - Bộ phát Wi-Fi 7 trong nhà Alcatel-Lucent AP1511
Alcatel-Lucent OmniAccess Stellar AP1511 là bộ truy cập Wi-Fi 7 802.11be cao cấp hiệu suất cao, hỗ trợ tốc độ không dây tổng hợp tối đa lên tới 9,328 Gbps (688 Mbps ở 2,4 GHz, 2,882 Gbps ở 5 GHz, 5,76 Gbps ở 6 GHz) và cổng Uplink 5GE. AP1511 hỗ trợ các tính năng 802.11be như Multi-Link Operation (MLO), Orthogonal Frequency Division Multiplexing (OFDMA), Downlink Multi-User Multiple Input, Multiple Output (DL MU-MIMO), Uplink Multi-User Multiple Input, Multiple Output (UL MU-MIMO), lý tưởng cho các doanh nghiệp ở mọi quy mô đòi hỏi giải pháp không dây đơn giản, an toàn và có khả năng mở rộng.
Đặc điểm nổi bật của Alcatel-Lucent OmniAccess Stellar AP1511
Thông số kỹ thuật
| Model | AP1511 (OAW-AP1511-RW) |
| Radio Specification | • AP type: Indoor Wi-Fi 7(802.11be) • Tri Radio, Tri Band: 2.4GHz 2x2 + 5GHz 2x2 + 6GHz 2x2 • 6GHz: 2x2:2 up to 5.76 Gbps wireless data rate to individual 2SS EHT320 802.11be client devices. • 5GHz: 2x2:2 up to 2.882 Gbps wireless data rate to individual 2SS EHT160 802.11be client devices. • 2.4GHz: 2x2:2 up to 688 Mbps wireless data rate to individual 2SS EHT40 802.11be client devices. |
| Interfaces | • 1 x multi-gigabit 1/2.5/5GE autosensing (RJ-45) uplink port Eth0. Power over Ethernet (PoE) 802.3at compliant. • 1 x USB 2.0 Type C (5V, 500mA) • 1 x USB Type C console • Reset button: Factory reset |
| Visual indicators (Tri-color LED) | For system and radio status • Red flashing: System abnormal, link down • Red light: System startup • Red and blue rotate flashing: System running, OS upgrading • Blue light: System running, dual or tri bands working • Green flashing: System running, no SSID created • Green light: System running, single band working • Red, blue and green rotate flashing: System running, use for location of an AP |
| Security | • 802.11i, WPA2, WPA3, Enterprise with CNSA option, Personal (SAE) • 802.1X • WEP, Advanced Encryption Standard (AES), Temporal Key Integrity Protocol (TKIP) • Firewall: ACL, wIPS/wIDS and DPI application policy enforcement with OmniVista • Portal page authentication |
| Antenna | • Integrated omni-directional antennas with maximum antenna gain of 5.6dBi in 2.4GHz and 5.9dBi in 5GHz and 6.4dBi in 6GHz |
| Power | • Supports direct DC power and Power over Ethernet (PoE) • When both power sources are available, DC power takes priority over PoE • Direct DC source: 40~57V; PoE: IEEE 802.3at/bt compliant source • Maximum (worst case) power consumption: 23.4W (single input IEEE 802.3at PoE) |
| Mounting | • Ceiling/wall mounting (Mount kit needs to be ordered separately) |
| Environmental | • Operating Temperature: 0°C to 50°C • Humidity: 5% to 95% non-condensing • Storage and transportation: Temperature: -40°C to +70°C |
| Dimensions/Weight | Single AP excluding packing box and accessories: • 190mm (W) x 190mm (D) x 38mm (H) • 764g Single AP including packing box and accessories: • 228mm (W) x 198mm (D) x 66mm (H) • 943g |
| Capacity | • Up to 16 SSID/Radio. Support for up to 256 associated client devices per radio |
| Software features | • Up to 4K APs when managed by OV2500. No limit on number of AP groups • Up to 255 APs per web managed (HTTP/ HTTPS) cluster • Auto channel selection • Auto transmit power control • Bandwidth control per SSID • L2 roaming • L3 roaming with OmniVista 2500 • Captive portal (Internal/External) • Guest self-registration optional SMS notification) with OmniVista 2500 • Internal user database • RADIUS client • Guest social-login with OmniVista 2500 • RADIUS proxy authentication with OmniVista 2500 • LDAP/AD proxy authentication with OmniVista 2500 • Wireless QoS • Band steering • Client smart load balance • Client sticky avoidance • User behavior tracking • White/Block list • Zero-Touch Provisioning (ZTP) • NTP Client • ACL • DHCP/DNS/NAT • Wireless MESH P2P/P2MP • Wireless Bridge • Rogue AP location and containment • Dedicated Scanning AP • System log report • SSHv2 • SNMPv2 • Wireless attack detection with OmniVista 2500 • Floor plan and heat map with OmniVista 2500 • Stanley Healthcare/Aeroscout RTLS support |
OAW-AP1511-RW : OmniAccess Stellar Indoor AP1511. Tri radio, Tri band 2.4/5/6GHz 2x2 Wi-Fi 7, integrated omni antenna. BLE/Zigbee radio. 1x 5GE (PoE), Console, USB, 48V DC. AP mount to be ordered separately.
