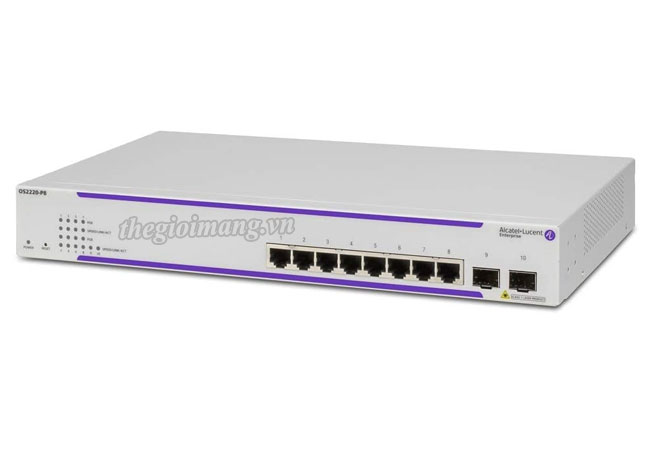

Thiết bị chuyển mạch Switch Alcatel-Lucent OmniSwitch OS2220-P8
| Model | OS2220-P8 |
| Ports | |
| RJ-45 10/100/1000 ports | 8 |
| 1G Combo/SFP uplink ports | 0/2 |
| PoE ports | 8 |
| 802.3af/at ports | 8 |
| Switching capacity | 20 Gb/s |
| Dimensions | |
| Width x Height x Depth | 27.94 cm x 4.4 cm x 17 cm |
| Weight | 1.5 kg |
| Operating conditions | |
| Operating temperature | 0°C to +45°C 32°F to +113°F |
| Storage temperature | -25°C to +70°C -13°F to +158F |
| Humidity (operating and storage) | 5% - 95% |
| Fan (variable speed)* | 1 Fan |
| Acoustic (dB) | <40db (A) |
| MTBF (hours) | 1,104,816 |
| System Power Consumption (full load) | 20.7 W |
| PoE power budget (watts) | 75 W |
Transceivers
| SFP-GIG-T | 1000Base-T Gigabit Ethernet Transceiver SFP |
| SFP-GIG-SX | 1000Base-SX Gigabit Ethernet optical transceiver SFP |
| SFP-GIG-LX | 1000Base-LX Gigabit Ethernet optical transceiver SFP |
OS2220-P8 : Gigabit Ethernet WebSmart chassis in a 1U form factor with 8 x 10/100/1000 PoE Base-T ports, 2 fixed SFP (1G) ports with internal power supply (75W power budget)
Data sheet Alcatel-Lucent OmniSwitch 2220 WebSmart Gigabit Ethernet LAN Switches
