Name: Alcatel OS2260-P48
Brand: Alcatel
SKU: OS2260-P48
Rating: 5 (26 reviews)

Hỗ trợ trực tuyến

Hỗ trợ Tư Vấn

0909648899

Kinh Doanh 01

0917684899

Kinh Doanh 02

0917993131

Kinh Doanh 03

0915793030

Kinh Doanh 04

0906641689

Hỗ trợ Kỹ Thuật 1

02862578356

Hỗ trợ Kỹ Thuật 2

02862578355

Mô tả sản phẩm

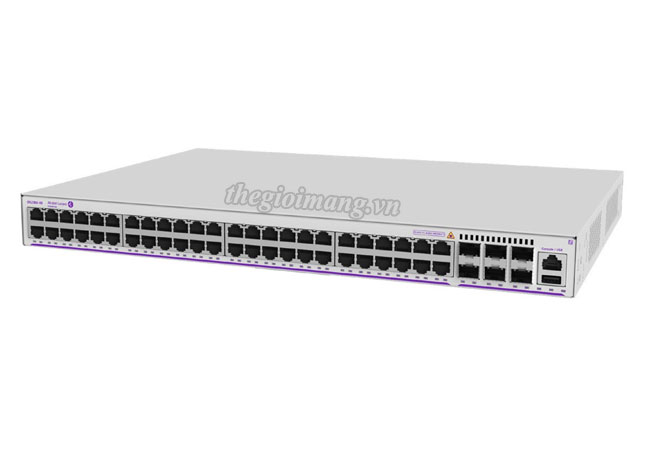

Thiết bị chuyển mạch Switch Alcatel-Lucent OmniSwitch OS2260-P48

Model	OS2260-P48
Gigabit RJ 45 ports	48 PoE+
Fixed 1G SFP uplink	6
Console port	1
USB/OoB management port	1
Primary power	Internal
Backup power	N/A
Fans	1
CPU	1 GHz MIPS dual core
File system flash	512 MB
RAM	512 MB
Packet Buffers	12 Mb/s
Performance aggregated
Max switching ASIC capacity	216 Gb/S
Switch capacity with all ports (full duplex)	108 Gb/s
Switch frame rate @ 64 byte packet	80.4 Mpps
System power consumption	• Idle : 35.2 W • 100% traffic all ports (max) : 63.2 W
System heat dissipation	216 (BTU/h)
Power consumption w/PoE	453.3W
Heat dissipation w/PoE	1547 (BTU/h)
Power supply efficiency (max load)	0.888
Acoustics (dB) @25C*	<40 db(A)
Number of fans	1
MTBF (hours) @ 25C	625 k
Height	4.4 cm (1.73 in)
Width	44 cm (17.32 in)
Depth	30 cm (11.81 in)
Weight	4.2 kg (9.3 lbs)
Operating temperature	0°C to 45°C (32°F to 113°F)
Storage temperature	-20°C to 60°C (-4°F to 140°F))
Humidity (operating)	5% to 95% non-condensing

Transceivers and cables

SFP-GIG-T	1000Base T Gigabit Ethernet Transceiver (SFP MSA). SFP works at 1000 Mb/s speed and full duplex mode
SFP-GIG-SX	1000Base SX Gigabit Ethernet optical transceiver (SFP MSA)
SFP-GIG-LX	1000Base LX Gigabit Ethernet optical transceiver (SFP MSA)
SFP-GIG-LH40	1000Base LH Gigabit Ethernet optical transceiver (SFP MSA). Typical reach of 40 km on 9/125 µm SMF.
SFP-GIG-LH70	1000Base LH Gigabit Ethernet optical transceiver (SFP MSA). Typical reach of 70 km on 9/125 µm SMF.
OS2x60-CBL-60CM	1/10G direct attached uplink copper cable (60 cm, SFP+)
OS2x60-CBL-1M	1/10G direct attached uplink copper cable (1 m, SFP+)
OS2x60-CBL-3M	1/10G direct attached uplink copper cable (3 m, SFP+)
