Model	OS6465-P28D
Operating temperature	-40°C to 75°C
Fans	0
File system flash	1 GB
RAM	1 GB
Max switching capacity	128 Gb/s
Forwarding capacity	95.3 Mpps
Weight (no PS attached)	5.71 Kg (12.6 lbs)
Height	4.4 cm (1.73 in)
Width	44 cm (17.4 in)
Depth (no PS attached)	27 cm (10.62 in)
1588v2 capable ports	26
MACsec capable ports	26
USB port	1
Console port	1
Alarm relay contacts	1 in, 1 out
PSU connectors	2
Max PoE budget	285 W
Altitude	13,000 ft
Storage temperature	-40°C to 85°C
Humidity (operating & storage)	5% to 95% non-condensing
Power consumption (idle)	29 W
Power consumption (full load)	32.19 W
Heat dissipation (BTU/hr)	98.95
Maximum surge protection	6 KV
MTBF (hours) (Switch only)	2,103,668
MTBF (hours) (switch+2 AC PSU)	1,136,119
Mounting options	19” rack

Power Supplies

OS6465-BPRD

OS6465 modular rack-mount DC backup power supply. Provides system and PoE power to one OS6465-P28 switch.

Transceivers

iSFP-100-MM	100Base-FX industrial transceiver with an LC type interface. This transceiver is designed for use over multimode fiber.
iSFP-100-SM15	100Base-FX industrial transceiver with an LC type interface. This transceiver is designed for use over single-mode fiber up to 15 km.
iSFP-100-SM40	100Base-FX Industrial SFP transceiver with an LC type interface. This transceiver is designed for use over single mode fiber optic cable up to 40 km.
iSFP-GIG-T	1000Base-T industrial Gigabit Ethernet Transceiver (SFP MSA). SFP works at 1000 Mb/s speed and full-duplex mode
iSFP-GIG-SX	1000Base-SX industrial Gigabit Ethernet industrial optical transceiver (SFP MSA)
iSFP-GIG-LX	1000Base-LX industrial Gigabit Ethernet optical transceiver (SFP MSA)
iSFP-GIG-LH40	1000Base-LH industrial Gigabit Ethernet optical transceiver (SFP MSA). Typical reach of 40 km on 9/125 µm SMF
iSFP-GIG-LH70	1000Base-LH industrial Gigabit Ethernet optical transceiver (SFP MSA). Typical reach of 70 km on 9/125 µm SMF
iSFP-GIG-BX-U	1000Base-BX SFP transceiver with an LC type of interface. This bi-directional transceiver is designed for use over single mode fiber optic on a single strand link up to 10 km. Transmits 1310 nm and receives 1490 nm optical signal
iSFP-GIG-BX-D	1000Base-BX SFP transceiver with an LC type of interface. This bi-directional transceiver is designed for use over single mode fiber optic on a single strand link up to 10 km. Transmits 1490 nm and receives 1310 nm optical signal
iSFP-10G-LR	10 Gigabit industrial optical transceiver (SFP+). Supports monomode fiber over 1310 nm wavelength (nominal) with an LC connector. Typical reach of 10 km
iSFP-10G-ER	10 Gigabit industrial optical transceiver (SFP+). Supports monomode fiber over 1550 nm wavelength (nominal) with an LC connector. Typical reach of 40 km
iSFP-10G-ZR	10 Gigabit industrial optical transceiver HPoE (SFP+). Supports data transmission at 1550nm over up to 80km single mode fiber. LC connector type
iSFP-10G-C1M	10 Gigabit industrial direct attached copper cable (1 m, SFP+)
iSFP-10G-C3M	10 Gigabit industrial direct attached copper cable (3 m, SFP+)
iSFP-10G-C7M	10 Gigabit industrial direct attached copper cable (7 m, SFP+)

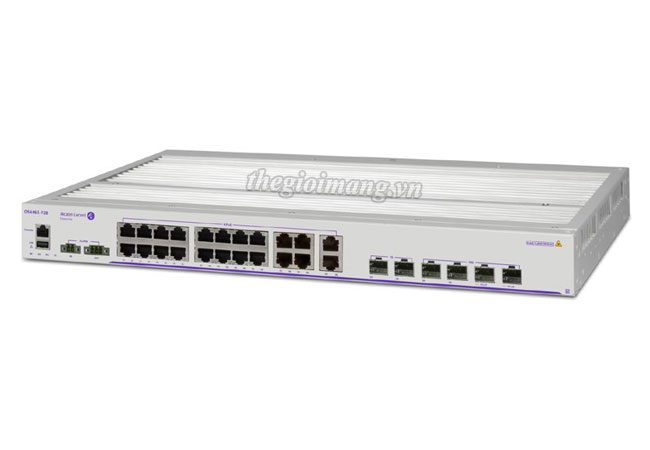

OS6465-P28D : Hardened Gigabit Ethernet L3 fixed configuration fan-less chassis in a 1U form factor with 22 10/100/1000 Base-T PoE+ ports out of which 8 ports are 60W PoE capable, two 100/1000 Base-X SFP ports, four (1G/10G) SFP+ ports, RS-232 Console (RJ45), 1 Alarm relay Input, 1 alarm relay output and one USB port. The bundle includes one DC power supply, power supply tray, user manuals, access card and hardware for mounting in a 19” rack.

Data sheet Alcatel-Lucent OmniSwitch 6465 Compact hardened ethernet switches
