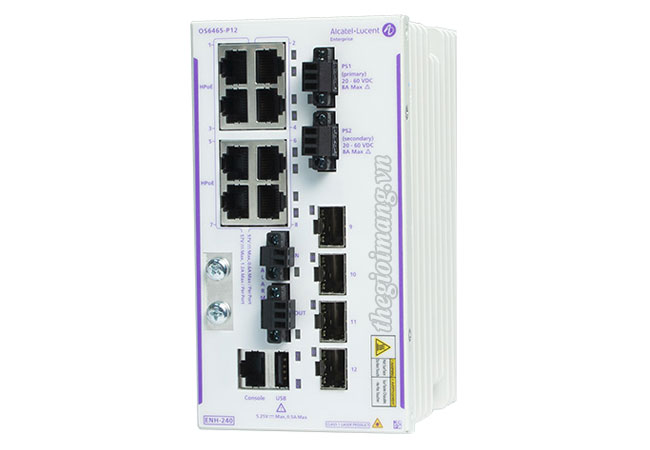

Alcatel-Lucent OmniSwitch OS6465H-P12 :
Thiết bị chuyển mạch Switch Alcatel-Lucent OmniSwitch OS6465H-P12
Model | OS6465H-P12 |
Operating temperature | -40°C to 75°C |
Fans | 0 |
File system flash | 1 GB |
RAM | 1 GB |
Max switching capacity | 24 Gb/s |
Forwarding capacity | 17.9 Mpps |
Weight (no PS attached) | 2.13 Kg (4.7 lbs) |
Height | 15 cm (5.9 in) |
Width | 8.0 cm (3.15 in) |
Depth (no PS attached) | 15 cm (5.9 in) |
1588v2 capable ports | 12 |
MACsec capable ports | 12 |
USB port | 1 |
Console port | 1 |
Alarm relay contacts | 1 in, 1 out |
PSU connectors | 2 |
Max PoE budget | 240 W |
Altitude | 13,000 ft |
Storage temperature | -40°C to 85°C |
Humidity (operating & storage) | 5% to 95% non-condensing |
Power consumption (idle) | 11.79 W |
Power consumption (full load) | 18.71 W |
Heat dissipation (BTU/hr) | 40.22 |
Maximum surge protection | 6 KV |
MTBF (hours) (Switch only) | 1,421,933 |
MTBF (hours) (switch+2 AC PSU) | 399,336 |
Mounting options | DIN/Wall/Panel |
Power Supplies
OS6465H-BPNX-xx | DIN-mount AC power supply. Provides system & 240W PoE power to one OS6465-P12 switch (ENH-240) orderable through references OS6465H-P12 and OS6465H-P12-xx. Ships with country specific power cord & DIN mounting hardware. |
Transceivers
iSFP-100-MM | 100Base-FX industrial transceiver with an LC type interface. This transceiver is designed for use over multimode fiber. |
iSFP-100-SM15 | 100Base-FX industrial transceiver with an LC type interface. This transceiver is designed for use over single-mode fiber up to 15 km. |
iSFP-100-SM40 | 100Base-FX Industrial SFP transceiver with an LC type interface. This transceiver is designed for use over single mode fiber optic cable up to 40 km. |
iSFP-GIG-T | 1000Base-T industrial Gigabit Ethernet Transceiver (SFP MSA). SFP works at 1000 Mb/s speed and full-duplex mode |
iSFP-GIG-SX | 1000Base-SX industrial Gigabit Ethernet industrial optical transceiver (SFP MSA) |
iSFP-GIG-LX | 1000Base-LX industrial Gigabit Ethernet optical transceiver (SFP MSA) |
iSFP-GIG-LH40 | 1000Base-LH industrial Gigabit Ethernet optical transceiver (SFP MSA). Typical reach of 40 km on 9/125 µm SMF |
iSFP-GIG-LH70 | 1000Base-LH industrial Gigabit Ethernet optical transceiver (SFP MSA). Typical reach of 70 km on 9/125 µm SMF |
iSFP-GIG-BX-U | 1000Base-BX SFP transceiver with an LC type of interface. This bi-directional transceiver is designed for use over single mode fiber optic on a single strand link up to 10 km. Transmits 1310 nm and receives 1490 nm optical signal |
iSFP-GIG-BX-D | 1000Base-BX SFP transceiver with an LC type of interface. This bi-directional transceiver is designed for use over single mode fiber optic on a single strand link up to 10 km. Transmits 1490 nm and receives 1310 nm optical signal |
OS6465H-P12 : OS6465-P12 (ENH-240) Hardened GigE fan-less switch capable of 240W PoE budget. 8x10/100/1000 BaseT RJ-45 802.3bt type-3 PoE, 4x100/1000 BaseX SFP,RS-232 Console, alarm relay & USB ports. Supports Fast PoE/Perpetual PoE. The bundle includes user manuals, access card and DIN rail mounting hardware. Power supply should be ordered separately.
OS6465H-P12-xx : OS6465-P12-xx (ENH-240) Hardened GigE fan-less switch capable of 240W PoE budget. 4x10/100/1000 BaseT 802.3bt type 3 PoE, 4x10/100/1000 BaseT 802.3at type-2 PoE+,, 4x100/1000 BaseX SFP ,RS-232 Console, 1 alarm relay input, 1 alarm relay output & 1 USB port. Supports fast PoE/Perpetual PoE. Shipping bundle includes one 75W AC power supply, country-specific power cord, user manuals & DIN rail mounting hardware.
Data sheet Alcatel-Lucent OmniSwitch 6465 Compact hardened ethernet switches
