Alcatel-Lucent OmniSwitch OS6860N-P24M :
Thiết bị chuyển mạch Switch Alcatel-Lucent OmniSwitch OS6860N-P24M
| Model | OS6860N-P24M |
| Gigabit copper and fiber ports | 24 x 100M/1G/2.5G/5G/10G 95W PoE, MACsec |
| Uplinks | Modular |
| USB port | 1 |
| Out-of-band EMP port | 1 |
| RS-232 port | 1 |
| Console port (micro-USB) | 1 |
| Fans | 3 |
| Altitude | 13,000 ft |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Storage temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity (operating and storage) | 5% to 95% non-condensing |
| Air flow | Front-to-back |
| Dimensions (H x W x D) | 4.4 cm x 44 cm x 35 cm |
| Performance specifications | |
| Max raw fabric capacity (Aggregated) | 1,120 Gb/s |
| Switching capacity (Aggregated) | 1,080 Gb/s |
| Throughput | 803.5 Mpps |
| File system flash | 16 GB |
| DRAM | 4 GB |
| VLANs | 4000 |
| MAC addresses | 64 K |
| Max IPv4 routes | 144 K |
| Max IPv6 routes | 72 K |
| Jumbo frames | 9216 bytes |
| VFL ports capacity | 200 Gb/s or 400 Gb/s aggregate |
| Maximum number of units in a virtual chassis | 8 |
Supported power supplies
| PS Model | OS6860N-BPPH | OS6860N-BPPX | OS6860N-BPXL |
| Dimensions (H x W x D) | 4.0 cm x 7.3 cm x 18.5 cm | 4.0 cm x 7.3 cm x 18.5 cm | 4.0 cm x 7.3 cm x 18.5 cm |
| Weight | 1.04 kg | 1.05 kg | 1.37 kg |
| Max PoE budget with 1 PSU | 450W | 750W | 1570W @200-240 VAC 665W @100-120 VAC |
| Max PoE Budget with 2 PSUs | 900W | 1500W of PoE | 3390W @200-240 VAC 1570W @100-120 VAC |
| Input voltage/Current | 90 V to 132 VAC/8.0 A 180 V to 264 VAC/4.0 A |
90 V to 132 VAC/12.0 A 180 V to 264 VAC/6.0 A |
100 V to 120 VAC/13.0 A 200 V to 240 VAC/13.0 A |
| Max output power/current | 600W/11A | 920W/16.88 A | 1000W/18.35 A 2000W/36.7 A |
| Fans | 1 | 1 | 1 |
Uplink modules
| OS68-XNI-U4 | 4 x 1G/10G SFP+, 256-bit MACsec capable ports |
| OS68-VNI-U4 | 4 x 10/25G SFP28, 256-bit MACsec capable ports |
| OS68-QNI-U2 | 2 x 10/40G QSFP+, 256-bit MACsec capable ports |
| OS68-CNI-U1 | 1 x 25/100G QSFP28 256-bit MACsec capable port |
DAC cables for virtual chassis
| OS6860-CBL-40 | OS6860 direct attached copper cable (40 cm, QSFP+) for Virtual Chassis |
| OS6860-CBL-100 | OS6860 direct attached copper cable (1m, QSFP+) for Virtual Chassis |
| OS6860-CBL-300 | OS6860 direct attached copper cable (3m, QSFP+) for Virtual Chassis |
| QSFP-100G-C1M | 100 Gigabit direct attached copper cable 1m, QSFP28 |
| QSFP-100G-C3M | 100 Gigabit direct attached copper cable 3m, QSFP28 |
| QSFP-100G-C5M | 100 Gigabit direct attached copper cable 5m, QSFP28 |

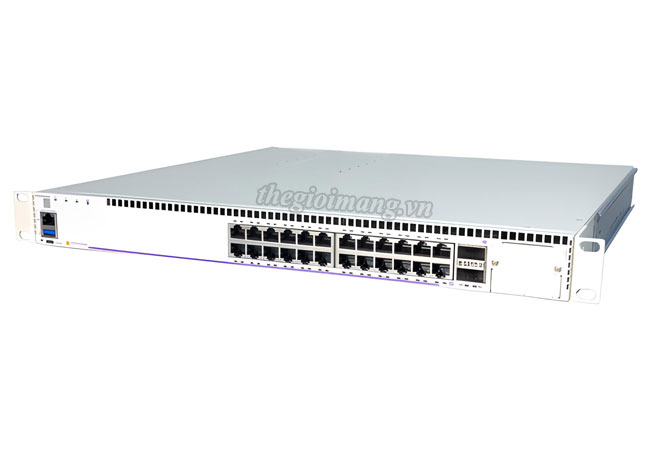

OS6860N-P24M : Fixed-configuration chassis in a 1U form factor with 24x100M/1G/2.5G/5G/10G multigigabit 95W PoE ports and 2x100G QSFP28 Virtual Chassis link ports with an uplink module expansion slot. All ports are IEEE 802.3bt compliant and support 256-bit MACsec. The bundle includes one 920W AC power supply, country-specific power cord, user manuals access card, hardware for mounting in a 19” rack and a micro-USB-to-USB console adapter.
Data sheet Alcatel-Lucent OmniSwitch 6860 Stackable LAN switches
