Thiết bị chuyển mạch Alcatel-Lucent OmniSwitch OS6900-C32-F
| Model | OS6900-C32-F |
| Port count | 32 (QSFP28) |
| Expansion slots | N/A |
| Out-of-band Ethernet port | 1 |
| USB port | 1 |
| Console port | 1 |
| Primary slide-in PSU slot | 1 |
| Backup slide-in PSU slot | 1 |
| Redundant fans | 5+1 |
| Flash | 16 GB |
| RAM | 16 GB |
| Data buffer | 16 MB |
| Max switching | 6.4 Tb/s |
| Capacity | Non-blocking |
| Throughput* | 2000 Mpps |
| Latency | <600 ns |
| Power consumption** | 360 W |
| Heat Dissipation | 1065 Btu/h |
| Mean time Between failures (MTBF) with AC power Supply | 195,000 h |
| Width | 43.3 cm |
| Depth | 55.9 cm |
| Height | 4.4 cm |
| Weight (chassis & fan) | 7.78 kg |
| Weight fully populated*** | 10.86 kg (23.95 lb) |
| Operating Temperature | 0°C to 45°C (32°F to113°F) 55°C shutdown |
| Storage Temperature | -10°C to 70°C (14°F to 158°F) |
| Humidity (operating) | 5% to 95% non-condensing |
| Humidity (storage) | 5% to 95% non-condensing |

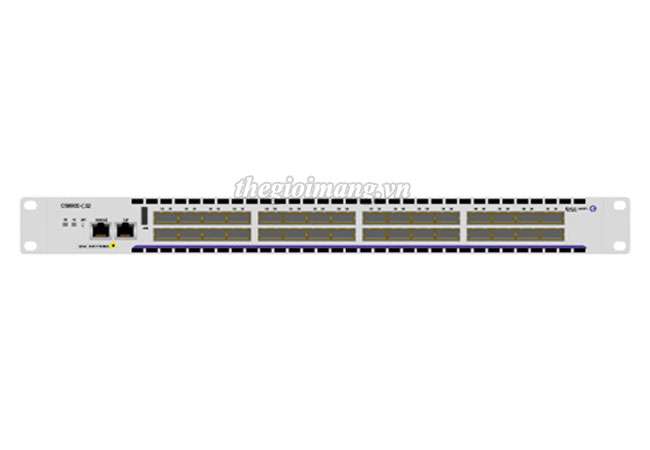

OS6900-C32-F : 100 Gb Ethernet L3 fixed configuration chassis in a 1RU form factor with 32 QSFP28 ports. Ports operate as single 40/100GigE port or Quad-10/25GigE. Front-to-back cooling. The chassis includes two 650W AC power supplies. The bundle ships with a country-specific power cord, user manuals access card, and rack mounts.
Data sheet Alcatel-Lucent OmniSwitch 6900 Stackable LAN Switches
