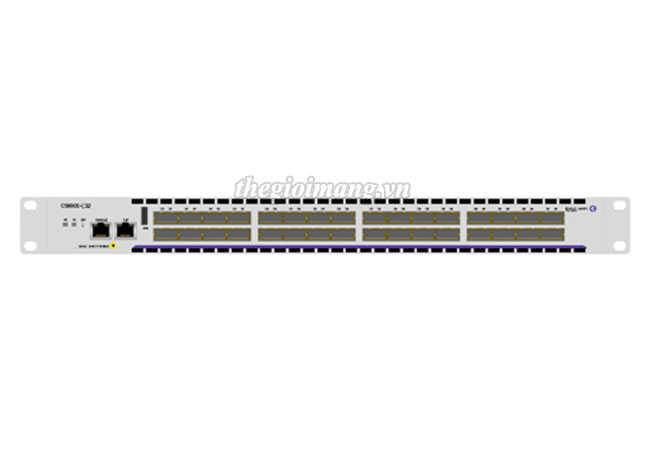

Thiết bị chuyển mạch Alcatel-Lucent OmniSwitch OS6900-C32-R
Model | OS6900-C32-R |
Port count | 32 (QSFP28) |
Expansion slots | N/A |
Out-of-band Ethernet port | 1 |
USB port | 1 |
Console port | 1 |
Primary slide-in PSU slot | 1 |
Backup slide-in PSU slot | 1 |
Redundant fans | 5+1 |
Flash | 16 GB |
RAM | 16 GB |
Data buffer | 16 MB |
Max switching | 6.4 Tb/s |
Capacity | Non-blocking |
Throughput* | 2000 Mpps |
Latency | <600 ns |
Power consumption** | 360 W |
Heat Dissipation | 1065 Btu/h |
Mean time Between failures (MTBF) with AC power Supply | 195,000 h |
Width | 43.3 cm |
Depth | 55.9 cm |
Height | 4.4 cm |
Weight (chassis & fan) | 7.78 kg |
Weight fully populated*** | 10.86 kg (23.95 lb) |
Operating Temperature | 0°C to 45°C (32°F to113°F) 55°C shutdown |
Storage Temperature | -10°C to 70°C (14°F to 158°F) |
Humidity (operating) | 5% to 95% non-condensing |
Humidity (storage) | 5% to 95% non-condensing |
OS6900-C32-R : 100 Gb Ethernet L3 fixed configuration chassis in a 1RU form factor with 32 QSFP28 ports. Ports operate as single 40/100GigE port or Quad-10/25GigE. Back-to-front cooling. The chassis includes two 650W AC power supplies. The bundle ships with a country-specific power cord, user manuals access card, and rack mounts.
Data sheet Alcatel-Lucent OmniSwitch 6900 Stackable LAN Switches
