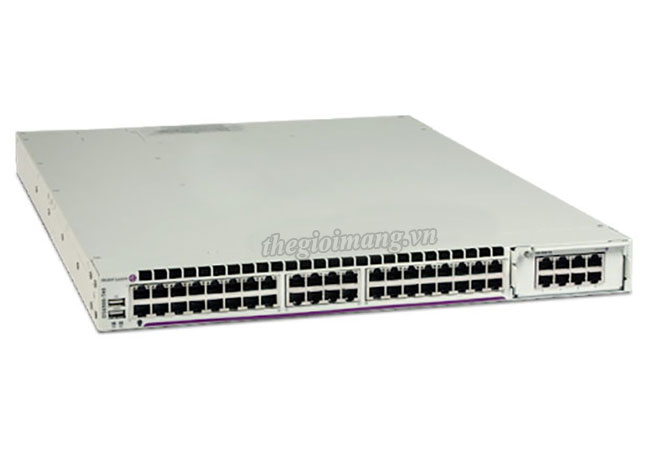

Thiết bị chuyển mạch Alcatel-Lucent OmniSwitch OS6900-T40-R
Model | OS6900-T40-R |
Port count | 40 (10GBase-T) |
Expansion slots | 2 |
Out-of-band Ethernet port | 1 |
USB port | 1 |
Console port | 1 |
Primary slide-in PSU slot | 1 |
Backup slide-in PSU slot | 1 |
Redundant fans | 3+1 |
Flash | 2 GB |
RAM | 4 GB |
Data buffer | 9 MB |
Max switching | 1.28Tb/s |
Capacity | Non-blocking |
Throughput* | 960 Mpps |
Latency | <3.3 μs |
Power consumption** | 329 W |
Heat Dissipation | 1123 Btu/h |
Mean time Between failures (MTBF) with AC power Supply | 139,840 h |
Width | 43.3 cm |
Depth | 55.9 cm |
Height | 4.4 cm |
Weight (chassis & fan) | 7.78 kg |
Weight fully populated*** | 10.86 kg |
Operating Temperature | 0°C to 45°C (32°F to113°F) 55°C shutdown |
Storage Temperature | -10°C to 70°C (14°F to 158°F) |
Humidity (operating) | 5% to 95% non-condensing |
Humidity (storage) | 5% to 95% non-condensing |
Expansion module
OS-XNI-U12E | 10 Gb Ethernet or 2/4/8 Gigabit Fibre Channel (FC) optional module for the OS6900 series of switches with 12 SFP+ ports that support 1Gig and 10 Gig Ethernet speeds or 2Gig/4Gig/8Gig FC speeds. Requires OS6900- SW-DC license to use the ports in FC mode. |
OS-XNI-U12 | 10 Gb Ethernet Optional Module for the OS6900 series of switches. Supports 12 SFP+ ports. |
OS-XNI-U4 | 10 Gb Ethernet Optional Module for the OS6900 series of switches. Supports 4 SFP+ ports. |
OS-HNI-U6 | Optional Module for the OS6900 series of switches. Supports 2 QSFP+ ports and 4 SFP+ ports. |
OS-QNI-U3 | 40 Gigabit Ethernet Optional Module for the OS6900 series of switches. Supports 3 QSFP+ ports. |
OS-XNI-T8 | 10 Gb Ethernet Optional Module for the OS6900 series of switches with 8 10GBase-T ports that support 100-BaseT, 1G and 10G speeds. |
OS6900-T40-R : 10 Gb Ethernet L2/L3 fixed configuration chassis in a 1RU form factor with 40 10GBase-T ports, auto-negotiable 100-BaseT, 1/10 GigE two optional module slots. Back-to-front cooling. The chassis includes a 450W AC power supply. A second power supply slot is supported for redundancy. Redundant power supply must be ordered separately.
Data sheet Alcatel-Lucent OmniSwitch 6900 Stackable LAN Switches
