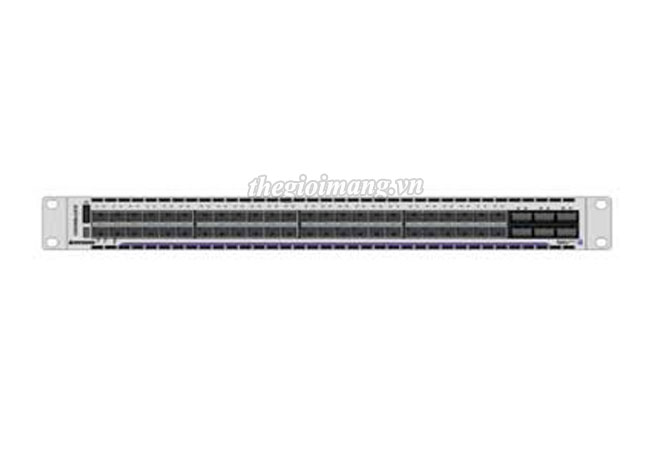

Thiết bị mạng Alcatel-Lucent OmniSwitch OS6900-V72
Model | OS6900-V72 |
Port count | 72 (48 SFP28 and 6 QSFP28) |
Expansion slots | N/A |
Out-of-band Ethernet port | 1 |
USB port | 1 |
Console port | 1 |
Primary slide-in PSU slot | 1 |
Backup slide-in PSU slot | 1 |
Redundant fans | 5+1 |
Flash | 16 GB |
RAM | 16 GB |
Data buffer | 16 MB |
Max switching capacity | 3.6 Tb/s Non-blocking |
Throughput* | 2000 Mpps |
Latency | <600 ns |
Power consumption** | 330 W |
Heat dissipation | 1065 Btu/h |
Mean time between failures (MTBF) with AC power supply | 195,000 h |
MTBF with DC power supply | 210,000 h |
Width | 43.3 cm (17.06 in) |
Depth | 55.9 cm (22.00 in.) |
Height | 4.4 cm (1.73 in.) |
Weight (chassis & fan) | 7.78 kg (17.15 lb) |
Weight (fully populated***) | 10.86 kg (23.95 lb) |
Operating temperature Front-to-rear airflow | 0°C to 45°C (32°F to 113°F) 55°C shutdown |
Operating temperature Rear-to-front airflow | 0°C to 45°C (32°F to 113°F) 55°C shutdown |
Storage temperature | 10°C to 70°C (14°F to 158°F) |
Humidity (operating) | 5% to 95% non-condensing |
Humidity (storage) | 5% to 95% non-condensing |
