Alcatel-Lucent OmniSwitch OS6900-X24D-R :
Thiết bị chuyển mạch Switch Alcatel-Lucent OmniSwitch OS6900-X24D-R
| Model | OS6900-X24D-R |
| Port count | 26 SFP+ and 2 QSFP28 |
| Out-of-band Ethernet port | 1 |
| USB port | 1 |
| Console port | 1 |
| Primary slide-in PSU | 1 |
| Backup slide-in PSU | 1 |
| Redundant fans | 4+1 |
| CPU Model | Intel Atom® C3558 |
| CPU Frequencies/Type | 2.2GHz/quad-core |
| Flash Storage | 32GB |
| SDRAM | 8 GB |
| Data buffer | 32 MB |
| Max switching | 1.12 Tb/s |
| Capacity | Non-blocking |
| Forwarding rates | 833 Mpps |
| Latency | <650 ns |
| Power consumption | 219 W |
| Heat Dissipation | 747 Btu/h |
| MTBF with DC power supply | 385,000 h |
| Width | 44.3 cm |
| Depth | 47.33 cm |
| Height | 4.4 cm |
| Weight (chassis & fan) | 6.663 kg |
| Shipping weight | 10.48 kg |
| Operating Temperature | 0°C to 45°C |
| Front-to-rear Airflow | 55°C shutdown |
| Rear-to-front Airflow | 55°C shutdown |
| Storage Temperature | -10°C to 70°C |
| Humidity (operating) | 5% to 95% non-condensing |
| Humidity (storage) | 5% to 95% non-condensing |

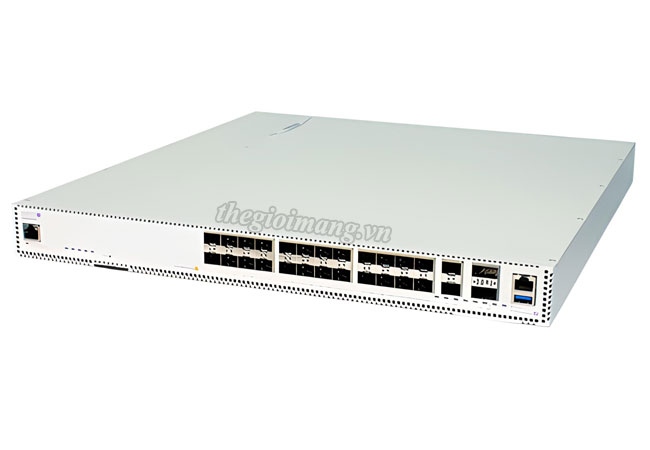

OS6900-X24D-R : OS6900-X24C2 10Gigabit/100Gigabit Ethernet L3 fixed, 1RU chassis with 26 SFP+ ports and 2 QSFP28 ports. SFP+ ports operate as 1/10GE. QSFP28 ports operate as 100/40GE. Back to front cooling. The bundle ships with dual DC power supplies, user manuals access card and rack mounts.
Data sheet Alcatel-Lucent OmniSwitch 6900 Core and Data Centre LAN Switches
