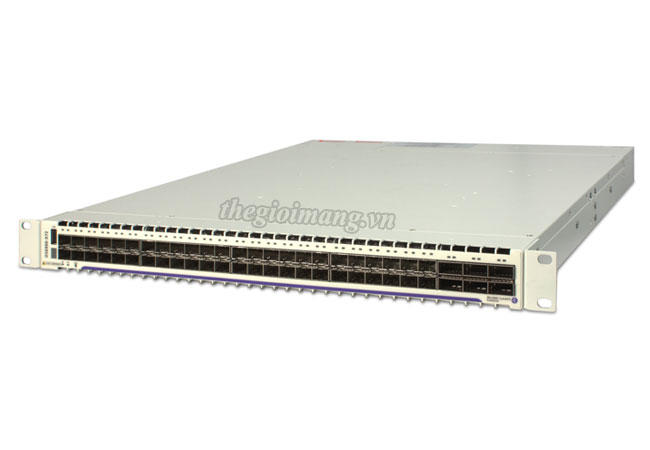

Thiết bị chuyển mạch Alcatel-Lucent OmniSwitch OS6900-X72D-F
| Model | OS6900-X72D-F |
| Port count | 72 (48 SFP+ and 6 QSFP) |
| Expansion slots | N/A |
| Out-of-band Ethernet port | 1 |
| USB port | 1 |
| Console port | 1 |
| Primary slide-in PSU slot | 1 |
| Backup slide-in PSU slot | 1 |
| Redundant fans | 3+1 |
| Flash | 4 GB |
| RAM | 8 GB |
| Data buffer | 12 MB |
| Max switching | 1.44 Tb/s |
| Capacity | Non-blocking |
| Throughput* | 1000 Mpps |
| Latency | <650ns |
| Power consumption** | 242 W |
| Heat Dissipation | 825 Btu/h |
| MTBF with DC power supply | 206,968 h |
| Width | 43.3 cm |
| Depth | 55.9 cm |
| Height | 4.4 cm |
| Weight (chassis & fan) | 7.78 kg |
| Weight fully populated*** | 10.86 kg (23.95 lb) |
| Operating Temperature | 0°C to 45°C (32°F to113°F) 55°C shutdown |
| Storage Temperature | -10°C to 70°C (14°F to 158°F) |
| Humidity (operating) | 5% to 95% non-condensing |
| Humidity (storage) | 5% to 95% non-condensing |
OS6900-X72D-F : 10Gigabit/40Gigabit Ethernet L3 fixed configuration chassis in a 1RU form factor with 48 1/10G SFP+ ports and 6 40G QSFP+ ports. QSFP+ ports operate as single 40GE port or Quad- 10GE. Console and Ether-net management ports are RJ45. Front to Rear cooling. The chassis includes a modular DC power supply. A second power supply slot is supported for redundancy. Redundant power supply shall be ordered separately. The bundle ships with user manuals access card and rack mounts.
Data sheet Alcatel-Lucent OmniSwitch 6900 Stackable LAN Switches
