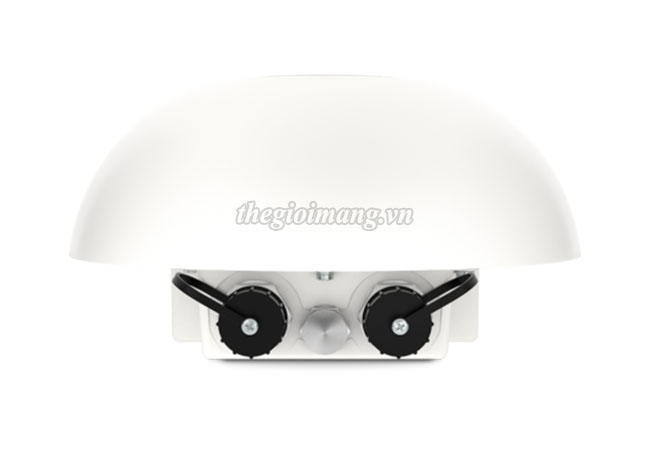

Thiết bị cân bằng tải Pepwave MAX HD1 Dome
| SKU | MAX-HD1-DOM-M-GLTE-G |
| WAN Interface | 1x Embedded LTE Modems with Redundant SIM Slot |
| LAN Interface | 1x 10/100/1000M Ethernet Ports |
| Downlink/Uplink Datarate | 1.2 Gbps/150 Mbps |
| Enclosure | Rugged outdoor IP67 |
| Recommended Users | 150 |
| Cellular Antenna | 4x4 Internal MIMO Antennas 1x Internal GPS Antenna |
| Included Antenna | Built-In Omni Antenna Antenna gain: 5dBi |
| PepVPN | ✔ |
| Power Input | 1x Power over Ethernet 802.3at |
| Power Consumption | 20W (max.) |
| Dimensions | 4.33in. (radius) x 8.4in. (height) 110mm (radius) x 124mm (height) |
| Weight | With Ethernet Splitter (1700 grams, 3.75 pounds) Without Ethernet Splitter (1200 grams, 2.65 pounds) |
| Operating Temperature | -40° – 149°F | -40° – 65°C |
| Humidity | 15% – 95% (non-condensing) |
| Certifications | FCC, CE, RoHS RF Port Lightning Immunity: ITU-T K.20 (+/- 1.5 kV) Shock and Vibration Resistance: EN 61373:1999 IEC 61373:1999 |
| Feature Add – On | |
| ACW-112 | Waterproof Ethernet Adaptor |
Tùy chọn khe cắm SIM Injector cho Pepwave MAX HD1 Dome
| Product Code | SIM-BK8-4E-56V |
|---|---|
| SIM Injector, 8x SIM cards capacity, 4x 10/100/1000 LAN ports, 56V DC | |
| Specification | Description |
| SIM Slots | 8x Active SIM Slots, Standard Size |
| LAN Interface | 4x GE, PoE 802.3at Support |
| Power Input | DC Jack/Terminal Block 12-56V |
| Dimensions | 1.6 x 5.8 inches | 40 x 147 x 128 mm |
| Weight | 430 grams | 0.94 pounds |
| Operating Temperature | -40° – 149°F | -40° – 65°C |
| Humidity | 15% – 95% (non-condensing) |
Datasheet Pepwave Max HD1 Dome
| NHỮNG TÍNH NĂNG CHUYÊN SÂU | |
|---|---|
| Software | Pepwave MAX Firmware |
| WAN | Support for PPPoE, Static IP, DHCP WAN Link Health Check Bandwidth Allowance Monitor USB 3G/4G LTE Modem Support IPv6 Support Support for Dynamic DNS services |
| LAN | DHCP Server for LAN Clients Extended DHCP Option DHCP Reservation DNS Proxy for LAN Clients VLAN on LAN Support |
| Load Balancing | Intelligent Failover Session Persistence Per-Service Load Distribution Multiple Algorithms Weighted Enforced Persistence Priority Overflow Least Used Lowest Latency Fastest Response Time |
| Complete VPN Solution | Site-to-Site VPN 256-bit AES Encryption Pre-shared Key Authentication Dynamic Routing X.509 Certificate Support PPTP VPN Server RADIUS, LDAP Authentication IPsec VPN (Network-to-Network) X.509 Certificate Support |
| Networking | NAT and IP Forwarding Static Routes Port Forwarding Many to One, One to One NAT NAT Pool SIP ALG, H.323 ALG UPnP, NAT-PMP WINS Server VRRP HA support |
| Security | Stateful Firewall DoS Prevention Web Blocking |
| Advanced QoS | User Groups Bandwidth Reservation Individual Bandwidth Limit Application Prioritization By User Groups SIP, HTTPS, VPN QoS Custom Application QoS |
| AP Controller | AP Controller Support Wi-Fi Usage Statistics |
| Captive Portal Support | Support for Wired and Wireless LAN Clients Support RADIUS Authentication Time and Usage Quotas on Open Access Mode Built-in Customizable Splash Page |
| Device Management | Web Administrative Interface Command Line Interface InControl Cloud Management Email Notification Active Client and Session Lists Bandwidth Usage Statistics Syslog Service SNMP v1, v2c and v3 |
