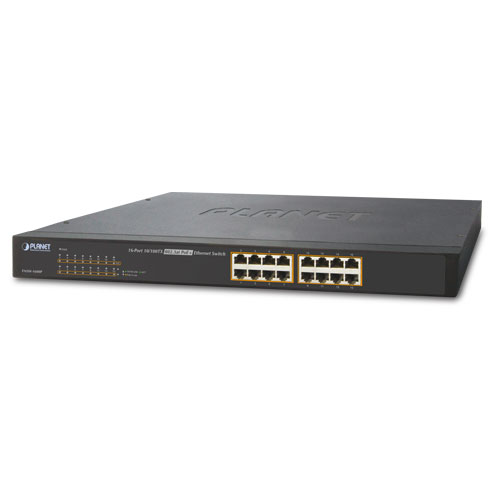

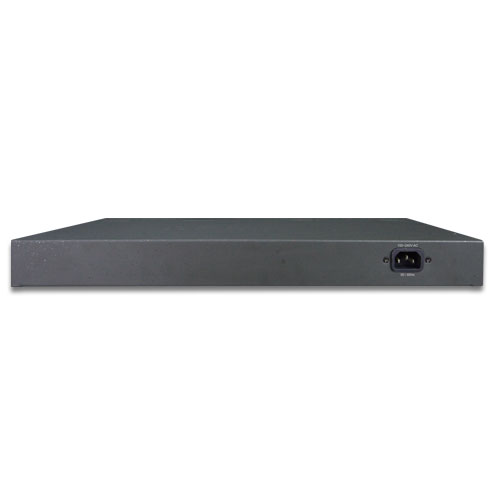

Thiết bị chuyển mạch Planet FNSW-1600P
| Product | FNSW-1600P |
| Hardware Specification | |
| Copper Ports | 16 10/100BASE-TX RJ45 auto-MDI/MDI-X ports |
| PoE Inject Port | 16 ports with 802.3at/af PoE injector function with Port-1 to Port-16 |
| Switch Architecture | Store-and-Forward |
| Address Table | 8K entries, automatic source address learning and aging |
| Switch Fabric | 3.2Gbps/non-blocking |
| Throughput (packet per second) | 2.38Mpps@64 bytes |
| Power Requirements | AC 100~240V, 50/60Hz, 2A max. |
| Power Consumption | Max. 133.3 watts/457.4 BTU |
| Dimensions (W x D x H) | 445 x 207 x 45 mm |
| Weight | 2330g |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af Power over Ethernet/PSE |
| IEEE 802.3at Power over Ethernet Plus/PSE | |
| PoE Power Supply Type | Mid-span |
| PoE Power Output | Per port 52V DC ( max.30.8 watts) |
| Power Pin Assignment | 4/5(+), 7/8(-) |
| PoE Power Budget | 125 watts |
| Standard Conformance | |
| Regulation Compliance | FCC Part 15 Class A, CE |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C |
| Relative Humidity: 5 ~ 95% (non-condensing) | |
| Storage | Temperature: -10 ~ 70 degrees C |
| Relative Humidity: 5 ~ 95% (non-condensing) | |
