Mô tả sản phẩm

PLANET GS-2210-24T2S là thiết bị chuyển mạch thông minh kết hợp với NMS giúp việc quản lý mạng trở nên dễ dàng và hiệu quả hơn. Ngoài ra, thật dễ dàng để cấu hình bất kỳ ứng dụng nào mà ngành này cần. Được trang bị các tính năng Layer 2 mạnh mẽ: LACP, IGMP, QoS, cấp PoE theo lịch... để cải thiện tính khả dụng của các ứng dụng kinh doanh quan trọng.

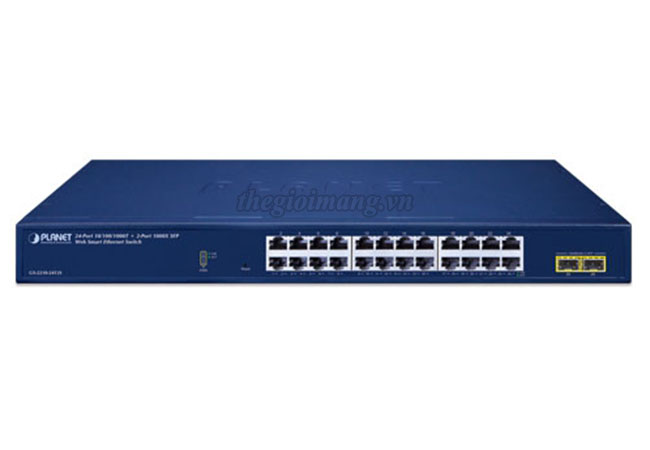

GS-2210-24T2S cung cấp 24 cổng 10/100/1000BASE-T và 2 khe cắm Gigabit SFP bổ sung, switch mang đến giải pháp chuyển mạch Ethernet thông minh qua giao diện web nhanh chóng, an toàn và tiết kiệm chi phí cho các doanh nghiệp SMB.

Thông số kỹ thuật GS-2210-24T2S

Model	GS-2210-24T2S
Hardware Specifications
Copper Ports	24 10/100/1000BASE-T RJ45 copper ports
SFP Slots	2 x 100/1000BASE-X SFP interface
Flash Memory	16Mbytes
Reset Button	< 10 sec: System reboot > 10 sec: Factory default
ESD Protection	Contact ±6KV , Air ±8KV
Surge Protection	Differential mode ±2KV , Common mode ±4KV
Dimensions (W x D x H)	440 x 207 x 44mm
Weight	2049g
Power Consumption	16.4 watts/55.9BTU
Power Requirements	AC 100~240V, 50/60Hz
Fan	--
Switching Specifications
Switch Architecture	Store-and-Forward
Switch Fabric	52Gbps/non-blocking
Switch Throughput	38.68Mpps
Address Table	8K MAC address table with auto-learning, auto-aging
Shared Data Buffer	4.1MB
Jumbo Frame	10KBytes
Flow Control	Back pressure for half duplex IEEE 802.3x pause frame for full duplex
Standards & Environment
Regulatory Compliance	FCC Part 15 Class A, CE
Operating	Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 90% (non-condensing)
Storage	Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 90% (non-condensing)

Xem thêm

Thông số kỹ thuật

Data sheet Planet GS-2210-24T2S

Software Functions	GS-2210-24T2S 24-Port 10/100/1000T + 2-Port 1000X SFP Web Smart Ethernet Switch
Layer 2 Function
Port Configuration	EEE Green energy savings disable/enable Port disable/enable/reboot Flow control disable/enable Bandwidth control on each port Port loopback protection
Port Status	Display each port’s speed duplex mode, Display link status Display flow control status Display auto negotiation status Display Green energy saving status
Port Mirroring	In / Out / All Many-to-1 monitor
VLAN	802.1Q tagged VLAN, up to 16 VLAN groups
Bandwidth Control	TX/RX/Both
Link Aggregation	Static trunk Supports 8 groups with 8 ports per trunk group
QoS	8 priority queues on all switch ports Supports strict priority and Weighted Round Robin (WRR) CoS policies Traffic classification: IEEE 802.1p CoS/ToS IPv4 DSCP Port-based WRR
Multicast	IPv4 IGMP v1/v2 snooping Up to 256
Security Functions
Security	Port isolation DHCP Snooping
Switch Management Functions
System Configuration	Telnet, Web browser
Management	Authentication for IPv4 Telnet user name and password Telnet Cable Diagnostics IP address or domain name Ping Test NTP (Network Time Protocol) PLANET Smart Discovery Utility PLANET NMS PLANET NMSViewerPro

Xem thêm thông số kỹ thuật

Bạn đang cần tư vấn về sản phẩm Planet GS-2210-24T2S

Vui lòng để lại số điện thoại hoặc lời nhắn, nhân viên sẽ liên hệ trả lời bạn sớm nhất

Đánh giá của bạn

Điểm 5/5 trên 1 đánh giá

Xem thêm các bình luận khác Ẩn bớt

Đang tải...

Sản phẩm cùng loại

Planet GS-2210-16T2S

Liên hệ

Planet GS-2210-24P2S

Liên hệ

Planet GS-4210-24T2S

Liên hệ

Software Functions	GS-2210-24T2S 24-Port 10/100/1000T + 2-Port 1000X SFP Web Smart Ethernet Switch
Layer 2 Function
Port Configuration	EEE Green energy savings disable/enable Port disable/enable/reboot Flow control disable/enable Bandwidth control on each port Port loopback protection
Port Status	Display each port’s speed duplex mode, Display link status Display flow control status Display auto negotiation status Display Green energy saving status
Port Mirroring	In / Out / All Many-to-1 monitor
VLAN	802.1Q tagged VLAN, up to 16 VLAN groups
Bandwidth Control	TX/RX/Both
Link Aggregation	Static trunk Supports 8 groups with 8 ports per trunk group
QoS	8 priority queues on all switch ports Supports strict priority and Weighted Round Robin (WRR) CoS policies Traffic classification: IEEE 802.1p CoS/ToS IPv4 DSCP Port-based WRR
Multicast	IPv4 IGMP v1/v2 snooping Up to 256
Security Functions
Security	Port isolation DHCP Snooping
Switch Management Functions
System Configuration	Telnet, Web browser
Management	Authentication for IPv4 Telnet user name and password Telnet Cable Diagnostics IP address or domain name Ping Test NTP (Network Time Protocol) PLANET Smart Discovery Utility PLANET NMS PLANET NMSViewerPro

Software Functions	GS-2210-24T2S 24-Port 10/100/1000T + 2-Port 1000X SFP Web Smart Ethernet Switch
Layer 2 Function
Port Configuration	EEE Green energy savings disable/enable Port disable/enable/reboot Flow control disable/enable Bandwidth control on each port Port loopback protection
Port Status	Display each port’s speed duplex mode, Display link status Display flow control status Display auto negotiation status Display Green energy saving status
Port Mirroring	In / Out / All Many-to-1 monitor
VLAN	802.1Q tagged VLAN, up to 16 VLAN groups
Bandwidth Control	TX/RX/Both
Link Aggregation	Static trunk Supports 8 groups with 8 ports per trunk group
QoS	8 priority queues on all switch ports Supports strict priority and Weighted Round Robin (WRR) CoS policies Traffic classification: IEEE 802.1p CoS/ToS IPv4 DSCP Port-based WRR
Multicast	IPv4 IGMP v1/v2 snooping Up to 256
Security Functions
Security	Port isolation DHCP Snooping
Switch Management Functions
System Configuration	Telnet, Web browser
Management	Authentication for IPv4 Telnet user name and password Telnet Cable Diagnostics IP address or domain name Ping Test NTP (Network Time Protocol) PLANET Smart Discovery Utility PLANET NMS PLANET NMSViewerPro

Software Functions

GS-2210-24T2S
24-Port 10/100/1000T + 2-Port 1000X SFP Web Smart Ethernet Switch

Layer 2 Function

Port Configuration

EEE Green energy savings disable/enable
Port disable/enable/reboot
Flow control disable/enable
Bandwidth control on each port
Port loopback protection

Port Status

Display each port’s speed duplex mode,
Display link status
Display flow control status
Display auto negotiation status
Display Green energy saving status

Port Mirroring

In / Out / All
Many-to-1 monitor

VLAN

802.1Q tagged VLAN, up to 16 VLAN groups

Bandwidth Control

TX/RX/Both

Link Aggregation

Static trunk
Supports 8 groups with 8 ports per trunk group

QoS

8 priority queues on all switch ports
Supports strict priority and Weighted Round Robin (WRR) CoS policies
Traffic classification:
   IEEE 802.1p CoS/ToS
   IPv4 DSCP
   Port-based WRR

Multicast

IPv4 IGMP v1/v2 snooping
Up to 256

Security Functions

Security

Port isolation
DHCP Snooping

Switch Management Functions

System Configuration

Telnet, Web browser

Management

Authentication for IPv4 Telnet user name and password
Telnet
Cable Diagnostics
IP address or domain name Ping Test
NTP (Network Time Protocol)
PLANET Smart Discovery Utility
PLANET NMS
PLANET NMSViewerPro
