Thiết bị chuyển mạch Planet GS-4210-8P2S
Product | GS-4210-8P2S |
Hardware Specifications | |
Copper Ports | 8 x 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X ports |
SFP Slots | 2 x 100/1000BASE-X SFP interfaces Supports 100/1000Mbps dual mode and DDM |
PoE Injector Port | 8 ports with 802.3at / af PoE injector function with Port-1 to Port-8 |
Console | 1 x RS-232-to-RJ45 serial port (115200, 8, N, 1) |
Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
Dimensions (W x D x H) | 280 x 180 x 44 mm, 1U height |
Weight | 1.6kg |
Enclosure | Metal |

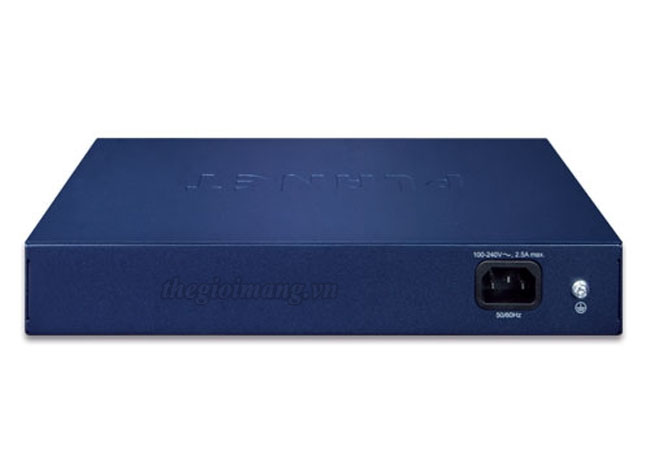

Power Requirements | AC 100~240V, 50/60Hz, 2.5A, auto-sensing |
Power Consumption / Dissipation | 170 watts (max.)/580BTU |
ESD Protection | Contact Discharge 6KV DC Air Discharge 8KV DC |
Fan | Fanless design |
Switching Specifications | |
Switch Architecture | Store-and-Forward |
Switch Fabric | 20Gbps/non-blocking |
Switch Throughput@64Bytes | 14.88Mpps |
Address Table | 8K entries |
Shared Data Buffer | 4.1 megabits |
Flow Control | IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex |
Power over Ethernet | |
PoE Standard | IEEE 802.3af / 802.3at PoE / PSE |
PoE Power Supply Type | End-span |
PoE Power Output | Per port 56V DC, 30 watts (max.) |
Power Pin Assignment | 1/2(+), 3/6(-) |
PoE Power Budget | 140 watts (max.) @ 25 degrees C 120 watts (max.) @ 50 degrees C |
Layer 2 Functions | |
Port Mirroring | TX/RX/both Many-to-1 monitor Up to 4 sessions |
VLAN | IEEE 802.1Q tagged-based VLAN IEEE 802.1ad Q-in-Q tunneling Voice VLAN Protocol VLAN Private VLAN (Protected port) GVRP Up to 256 VLAN groups, out of 4094 VLAN IDs |
Link Aggregation | IEEE 802.3ad LACP/Static Trunk Supports1 trunk groups with 2 ports per trunk |
Spanning Tree Protocol | STP, IEEE 802.1D Spanning Tree Protocol RSTP, IEEE 802.1w Rapid Spanning Tree Protocol MSTP, IEEE 802.1s Multiple Spanning Tree Protocol STP BPDU Guard, BPDU Filtering and BPDU Forwarding |
IGMP Snooping | IPv4 IGMP (v2/v3) Snooping IPv4 IGMP Querier Up to 256 multicast groups |
MLD Snooping | IPv6 MLD (v1/v2) Snooping Up to 256 multicast groups |
QoS | 8 mapping ID to 8 level priority queues - Port number - 802.1p priority - 802.1Q VLAN tag - DSCP field in IP packet Traffic classification based, strict priority and WRR |
Ring | Supports ERPS, and complies with ITU-T G.8032 |
Security Functions | |
Access Control List | IPv4/IPv6 IP-based ACL MAC-based ACL |
Security | IP-MAC port binding MAC filter Static MAC address DHCP Snooping and DHCP Option82 DoS attack prevention ARP inspection IP source guard |
AAA | Built-in RADIUS client to co-operate with RADIUS server |
Network Access Control | IEEE 802.1X – Port-based authentication RADIUS/TACACS+ user access authentication |
Management Functions | |
Basic Management Interfaces | RS232 Console Web browser Telnet SNMP v1, v2c |
Secure Management Interfaces | SSHv2, TLS v1.2, SNMP v3 |
System Management | Firmware upgrade by HTTP/TFTP protocol through Ethernet network LLDP protocol SNTP PLANET Smart Discovery Utility PLANET NMS System |
Event Management | Remote/Local Syslog System log |
Standards Conformance | |
Regulation Compliance | FCC Part 15 Class A, CE, LVD |
Environment | |
Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
Storage | Temperature: -20 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
Data sheet Planet GS-4210-8P2S
Những tính năng chính Switch Planet GS-4210-8P2S
Physical Port
Power over Ethernet
Layer 2 Features
Quality of Service
Multicast
Security
Management
