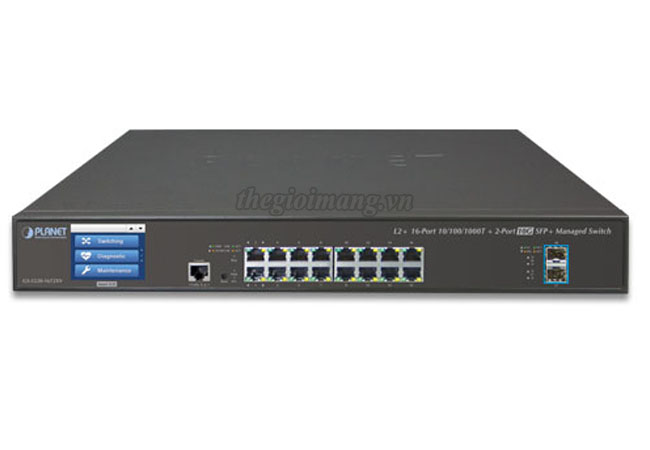

Planet GS-5220-16T2XV : L2+ 16-Port 10/100/1000T + 2-Port 10G SFP+ Managed Ethernet Switch with LCD Touch Screen
Thiết bị chuyển mạch Planet GS-5220-16T2XV
| Model | GS-5220-16T2XV |
|---|---|
| Hardware Specifications | |
| Copper Ports | 16 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| SFP+ Slots | 2 10GBASE-SR/LR SFP+ interfaces (Port-17 to Port-18) Compatible with 1000BASE-SX/LX/BX SFP transceiver |
| Console | 1 × RS232-to-RJ45 serial port (115200, 8, N, 1) |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 72Gbps/non-blocking |
| Throughput | 53.57Mpps@64Bytes |
| Address Table | 16K entries, automatic source address learning and aging |
| Shared Data Buffer | 32M bits |
| Flow Control | IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex |
| Jumbo Frame | 10K bytes |
| Reset Buton | < 5 sec: System reboot > 5 sec: Factory default |
| Dimensions (W x D x H) | 440 x 300 x 56 mm, 1.25U height |
| Weight | 3.5kg |
| Power Consumption | Max. 25.5 watts/87.01 BTU |
| Power Requirements | AC 100~240V, 50/60Hz, 2A |
| ESD Protection | 6KV DC |
| Fan | 1 |
| Standards & Environments | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Regulatory Compliance | FCC Part 15 Class A, CE |
Data sheet Planet GS-5220-16T2XV/GS-5220-16T2XVR
| Software Functions | GS-5220-16T2XV L2+ 16-Port 10/100/1000T + 2-Port 10G SFP+ Managed Ethernet Switch with LCD Touch Screen |
|---|---|
| Layer 2 Management Functions | |
| Port Configuration | Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable/enable |
| Port Status | Display each port’s speed duplex mode, link status, flow control status and auto-negotiation status, trunk status |
| Port Mirroring | TX/RX/Both Many-to-1 monitor |
| VLAN | 802.1Q tagged VLAN Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN MVR (Muticast VLAN registration) Up to 255 VLAN groups, out of 4095 VLAN IDs |
| Link Aggregation | IEEE 802.3ad LACP/static trunk 9 groups with 2 ports per trunk |
| Spanning Tree Protocol | IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) |
| QoS | Traffic classification based, strict priority and WRR 8-level priority for switching: - Port number - 802.1p priority - 802.1Q VLAN tag - DSCP/ToS field in IP packet |
| IGMP Snooping | IGMP (v1/v2/v3) snooping, up to 255 multicast groups IGMP querier mode support |
| MLD Snooping | MLD (v1/v2) snooping, up to 255 multicast groups MLD querier mode support |
| Access Control List | IP-based ACL/MAC-based ACL Up to 256 entries |
| Bandwidth Control | Per port bandwidth control - Ingress: 100Kbps~1000Mbps - Egress: 100Kbps~1000Mbps |
| Layer 3 Functions | |
| IP Interfaces | Max. 128 VLAN interfaces |
| Routing Table | Max. 128 routing entries |
| Routing Protocols | IPv4 hardware static routing IPv6 hardware static routing |
| Management | |
| Basic Management Interfaces | Console; Telnet; Web browser; SNMP v1, v2c; 2.4-inch color LCD touch screen |
| Secure Management Interfaces | SSH, SSL, SNMPv3 |
