Mô tả sản phẩm

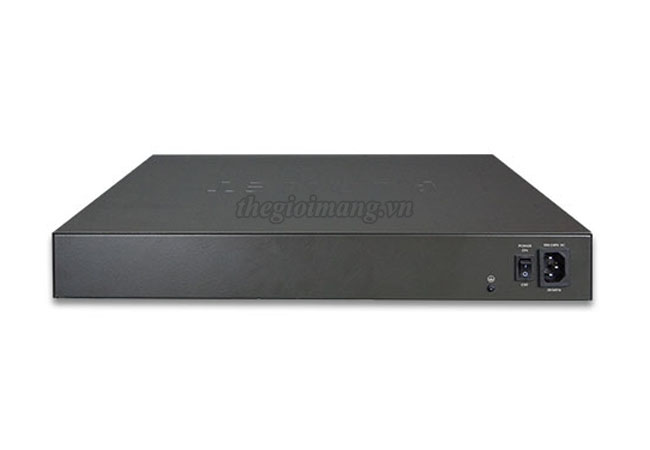

Thiết bị chuyển mạch Planet GS-5220-24T4XV

Model	GS-5220-24T4XV
Hardware Specifications
Copper Ports	24 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP+ Slots	4 10GBASE-SR/LR SFP+ interfaces (Port-25 to Port-28) Compatible with 1000BASE-SX/LX/BX SFP transceiver
Console	1 x RS232-to-RJ45 serial port (115200, 8, N, 1)
Switch Architecture	Store-and-Forward
Switch Fabric	128Gbps/non-blocking
Throughput	95.23Mpps@64Bytes
Address Table	16K entries, automatic source address learning and aging
Shared Data Buffer	32M bits
Flow Control	IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex
Jumbo Frame	10K bytes
Reset Buton	< 5 sec: System reboot > 5 sec: Factory default
Dimensions (W x D x H)	440 x 300 x 56 mm, 1.25U height
Weight	3.7kg
Power Consumption	Max. 35.1 watts/119.77 BTU
Power Requirements	AC 100~240V, 50/60Hz, 2A
ESD Protection	6KV DC
Fan	2
Environments
Operating	Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
Storage	Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
Regulatory Compliance	FCC Part 15 Class A, CE

Xem thêm

Thông số kỹ thuật

Data sheet Planet GS-5220-24T4XV/GS-5220-24T4XVR

Software Functions	Planet GS-5220-24T4XV L3 24-Port 10/100/1000T + 4-Port 10G SFP+ Managed Ethernet Switch with LCD Touch Screen
Layer 2 Management Functions
Port Configuration	Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable/enable
Port Status	Display each port’s speed duplex mode, link status, flow control status, auto-negotiation status, trunk status
Port Mirroring	TX/RX/Both Many-to-1 monitor
VLAN	802.1Q tag-based VLAN Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN MVR (Multicast VLAN registration) Up to 255 VLAN groups, out of 4095 VLAN IDs
Link Aggregation	IEEE 802.3ad LACP/static trunk 14 trunk groups with 4 ports per trunk group
Spanning Tree Protocol	IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
QoS	Traffic classification based, strict priority and WRR 8-level priority for switching: - Port number - 802.1p priority - 802.1Q VLAN tag - DSCP/ToS field in IP packet
IGMP Snooping	IGMP (v1/v2/v3) snooping, up to 255 multicast groups IGMP querier mode support
MLD Snooping	MLD (v1/v2) snooping, up to 255 multicast groups MLD querier mode support
Access Control List	IP-based ACL/MAC-based ACL Up to 256 entries
Bandwidth Control	Per port bandwidth control Ingress: 100Kbps~1000Mbps Egress: 100Kbps~1000Mbps
Security	DHCP Snooping IP Source Guard Dynamic ARP Inspection 802.1x port-based and MAC-based network access control RADIUS TACACS+ user accounts management SNMP v3 authentication
Layer 3 Functions
IP Interfaces	Max. 128 VLAN interfaces
Routing Table	Max. 128 routing entries
Routing Protocols	IPv4 OSPFv2 IPv4 hardware static routing IPv6 hardware static routing
Management
Basic Management Interfaces	Console; Telnet; Web browser; SNMP v1, v2c; 2.4-inch color LCD touch screen
Secure Management Interfaces	SSH, SSL, SNMPv3

Xem thêm thông số kỹ thuật

Bạn đang cần tư vấn về sản phẩm Planet GS-5220-24T4XV

Vui lòng để lại số điện thoại hoặc lời nhắn, nhân viên sẽ liên hệ trả lời bạn sớm nhất

Đánh giá của bạn

Điểm 5/5 trên 1 đánh giá

Xem thêm các bình luận khác Ẩn bớt

Đang tải...

Sản phẩm cùng loại

Planet GS-5220-24P4X

Liên hệ

Planet GS-4210-24T4SR

Liên hệ

Planet GS-4210-24T4S

Liên hệ

Software Functions

Planet GS-5220-24T4XV
L3 24-Port 10/100/1000T + 4-Port 10G SFP+ Managed Ethernet Switch with LCD Touch Screen

Layer 2 Management Functions

Port Configuration

Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable

Port Status

Display each port’s speed duplex mode, link status, flow control status, auto-negotiation status, trunk status

Port Mirroring

TX/RX/Both
Many-to-1 monitor

VLAN

802.1Q tag-based VLAN
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN registration)
Up to 255 VLAN groups, out of 4095 VLAN IDs

Link Aggregation

IEEE 802.3ad LACP/static trunk
14 trunk groups with 4 ports per trunk group

Spanning Tree Protocol

IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)

QoS

Traffic classification based, strict priority and WRR
8-level priority for switching:
- Port number
- 802.1p priority
- 802.1Q VLAN tag
- DSCP/ToS field in IP packet

IGMP Snooping

IGMP (v1/v2/v3) snooping, up to 255 multicast groups
IGMP querier mode support

MLD Snooping

MLD (v1/v2) snooping, up to 255 multicast groups
MLD querier mode support

Access Control List

IP-based ACL/MAC-based ACL
Up to 256 entries

Bandwidth Control

Per port bandwidth control
Ingress: 100Kbps~1000Mbps
Egress: 100Kbps~1000Mbps

Security

DHCP Snooping
IP Source Guard
Dynamic ARP Inspection
802.1x port-based and MAC-based network access control
RADIUS
TACACS+ user accounts management
SNMP v3 authentication

Layer 3 Functions

IP Interfaces

Max. 128 VLAN interfaces

Routing Table

Max. 128 routing entries

Routing Protocols

IPv4 OSPFv2
IPv4 hardware static routing
IPv6 hardware static routing

Management

Basic Management Interfaces

Console; Telnet; Web browser; SNMP v1, v2c; 2.4-inch color LCD touch screen

Secure Management Interfaces

SSH, SSL, SNMPv3
