Planet GS-6311-24P4XV là giải pháp cấp nguồn qua Ethernet lý tưởng, có khả năng lắp đặt nhanh chóng, giám sát trạng thái hoạt động PoE theo thời gian thực và khắc phục sự cố ngay lập tức thông qua màn hình LCD độc đáo để cải thiện hiệu quả và chất lượng công việc mà không cần bất kỳ máy tính hoặc phần mềm nào.

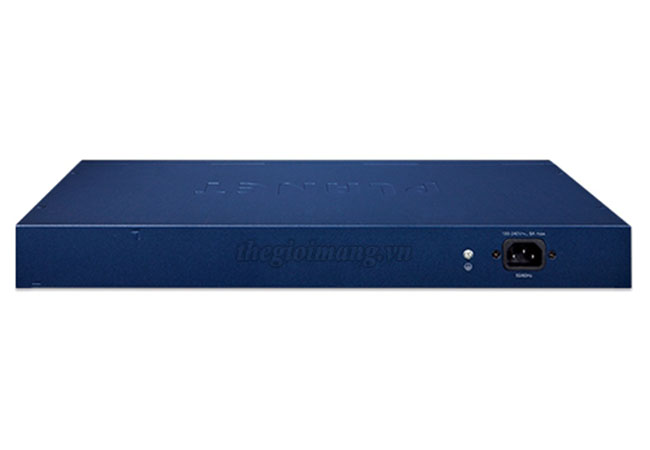

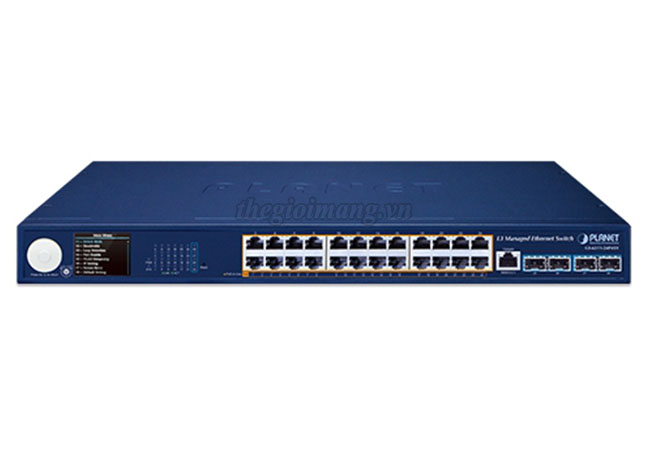

Planet GS-6311-24P4XV

GS-6311-24P4XV được trang bị 24 cổng đồng Gigabit PoE+ 802.3at, tổng công suất PoE lên tới 370 watt và 4 cổng quang 10G SFP+ bổ sung được thiết kế linh hoạt để mở rộng khoảng cách kết nối. Switch cung cấp giải pháp mạng Power over Ethernet nhanh chóng, an toàn và tiết kiệm chi phí cho hệ thống giám sát IP camera cho các doanh nghiệp và tập đoàn nhỏ.

Thông số kỹ thuật Planet GS-6311-24P4XV

Model	GS-6311-24P4XV
Hardware Specifications
10/100/1000 RJ45 Ports	24
10G SFP+ Ports	4 10GBASE-SR/LR SFP+ interface Backward compatible with 1000BASE-SX/LX/BX SFP transceiver
Console Port	1 x RJ45-to-RS232 serial port (9600, 8, N, 1)
Display	2-inch color LCD
CPU	MIPS 800MHz
RAM	512Mbytes
Flash Memory	32Mbytes
Dimensions (W x D x H)	440 x 207 x 44mm
Weight	3457g
Power Consumption	14.5 watts/ 49.4BTU (System) 425 watts/ 1449 BTU (System + PoE)
Power Requirements - AC	AC 100~240V, 50/60Hz
Fan	2
Switching Specifications
Switch Architecture	Store-and-Forward
Switch Fabric	128Gbps/non-blocking
Switch Throughput	95.23Mpps
Address Table	16K MAC address table with auto learning function
ARP Table	8K
Routing Table	6K
IP Interface	1024
ACL Table	4K
Shared Data Buffer	12MB
Jumbo Frame	12KBytes
Flow Control	Back pressure for half duplex IEEE 802.3x pause frame for full duplex
Power over Ethernet Specifications
PoE Standard	IEEE 802.3at PoE+ PSE
PoE Power Supply Type	End-span
PoE Power Output	32W (max.)
Power Pin Assignment	1/2(-), 3/6(+)
PoE Power Budget	370 watts (max.)
Standards & Environment
Regulatory Compliance	FCC Part 15 Class A, CE
Operating	Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 90% (non-condensing)
Storage	Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 90% (non-condensing)

Data sheet Planet GS-6311-24P4XV

Software Functions	GS-6311-24P4XV L3 24-Port 802.3at PoE + 4-Port 10G SFP+ Managed Ethernet Switch with Smart LCD Screen
IPv4 Layer 3 Functions
IP Routing Protocol	Static route RIPv1/v2 OSPFv2 BGP4 Hardware-based Layer 3 routing
Layer 3 Protocol	ARP ARP Proxy IGMP Proxy
IPv6 Layer 3 Functions
IP Routing Protocol	IPv6 Static Route RIPng OSPFv3 BGP6 (BGP4+) PIM6 IPv6 RA (Router Advertisement) IPv6 LPM Routing Hardware-based Layer 3 routing SNMP over IPv6 Support IPv6 IPSec Support IPv6 ACL
Other	ICMPv6,ND,DNSv6 DNS over IPv6 Support
Layer 2 Function
Port Configuration	Port disable/enable Flow control disable/enable Bandwidth control on each port Port loopback detect
Port Status	Display each port’s speed duplex mode, link status, flow control status and auto negotiation status
VLAN	802.1Q tagged VLAN, up to 4K VLAN groups 802.1ad Q-in-Q (VLAN stacking) GVRP for VLAN management Private VLAN Edge (PVE) supported Protocol-based VLAN MAC-based VLAN IP subnet VLAN
Bandwidth Control	TX/RX/Both
Link Aggregation	IEEE 802.3ad LACP/static trunk Supports 64 groups with 8 ports per trunk group
QoS	8 priority queues on all switch ports Supports strict priority and Weighted Round Robin (WRR) CoS policies Traffic classification: - IEEE 802.1p CoS/ToS - IPv4/IPv6 DSCP - Port-based WRR
Multicast	IPv4 IGMP v1/v2/v3 snooping IPv4 Querier mode support IPv6 MLD v1/v2 snooping Multicast VLAN Register (MVR) Up to 1024
Security Functions
Access Control List	Supports Standard and Expanded ACL IP-based ACL/MAC-based ACL Time-based ACL Up to 4K entries
Security	Port isolation Supports IP + MAC + port binding Identification and filtering of L2/L3/L4 based ACL Defend against DOS or TCP attacks Suppression of broadcast, multicast and unknown unicast packet DHCP Snooping, DHCP Option 82/43/60/61/67 Command line authority control based on user levels
AAA	TACACS+ and IPv4/IPv6 over RADIUS
Authentication	IEEE 802.1x port-based network access control
Switch Management Functions
System Configuration	Console, Telnet, Web browser, SNMP v1, v2c
Secure Management Interfaces	SSHv2, TLSv1.2, SNMPv3
Management	IPv4 and IPv6 dual stack management User IP security inspection for IPv4/IPv6 SNMP SNMP v1, v2c and v3 SNMP MIB and TRAP SNMP RMON 1, 2, 3, 9 four groups IPv4/IPv6 FTP/TFTP IPv4/IPv6 NTP RADIUS authentication for IPv4/IPv6 Telnet user name and password IPv4/IPv6 SSH The right configuration for users to adopt RADIUS server’s shell management CLI, console, Telnet Security IP safety net management function: avoid unlawful landing at nonrestrictive area Syslog server for IPv4 and IPv6 TACACS+ PLANET Smart Discovery Utility
