Planet IGS-4215-8T2S

Planet IGS-4215-8T2S: Industrial L2/L4 8-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Switch

  •  8-port GbE RJ45
  •  2-port 1GBASE-X SFP
  •  Dual power input
  •  PLANET UNI-NMS and Smart Discovery Utility for deployment management.
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Thiết bị chuyển mạch Công nghiệp Planet IGS-4215-8T2S

Model IGS-4215-8T2S
Hardware Specifications
Copper Ports 8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
Gigabit SFP Slots 2 100/1000BASE-SX/LX/BX SFP interfaces
Reset Button < 5 sec: System reboot
> 5 sec: Factory default

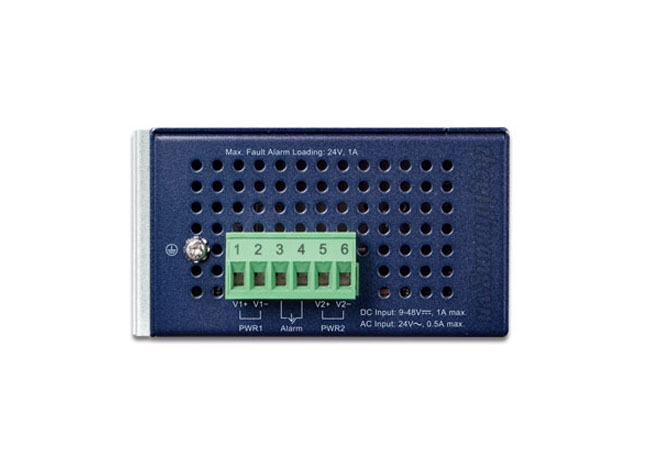

Connector Removable 6-pin terminal block for power input
  • Pin 1/2 for Power 1
  • Pin 3/4 for fault alarm
  • Pin 5/6 for Power 2
Alarm One relay output for power failure.
Alarm relay current carry ability: 1A @ 24V DC
Power Requirements Dual 9~48V DC
24V AC
Power Consumption DC input:
  • Max. 1.98 watts/6.7BTU (System on)
  • Max. 6.93 watts/23.6BTU (Full loading)
AC input:
  • Max. 1.4 watts/4.7BTU (System on)
  • Max. 5.7 watts/19.4BTU (Full loading)
Enclosure IP30 metal case
Dimensions (W x D x H) 50 x 87.8 x 135 mm
Weight 510g
Installation DIN-rail kit and wall-mount ear
ESD Protection 6KV DC
Switch Specifications
Switch Architecture Store-and-Forward
Switch Fabric 20Gbps (non-blocking)
Switch Throughput@64 bytes 14.8Mpps@ 64 bytes
MAC Address Table 8K entries
Shared Data Buffer 4.1Mbits
Flow Control IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
Jumbo Frame 9KB
Layer 2 Functions
Port Mirroring TX/RX/Both
Many-to-1 monitor
Up to 4 sessions
VLAN 802.1Q tag-based VLAN
802.1ad Q-in-Q tunneling (VLAN stacking)
Voice VLAN
Protocol VLAN
Private VLAN (Protected port)
GVRP
Up to 256 VLAN groups, out of 4094 VLAN IDs
Link Aggregation IEEE 802.3ad LACP and static trunk
Cisco ether-channel (Static Trunk)
Up to 5 trunk groups
Up to 10 ports per trunk group with 20Gbps bandwidth
Spanning Tree Protocol IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
STP BPDU Guard, BPDU Filtering and BPDU Forwarding
IGMP Snooping IPv4 IGMP snooping v1, v2, v3
IGMP querier
IGMP Snooping port filtering
Up to 256 multicast groups
MLD Snooping IPv6 MLD snooping v1, v2
Up to 256 multicast groups
QoS Ingress/Egress Rate Limit per port bandwidth control
8-level priority for switching
  • Port number
  • 802.1p priority
  • DSCP/IP precedence of IPv4/IPv6 packets
  • Typical network application
DSCP remarking
Security Functions
Access Control List IPv4/IPv6 IP-based ACL/MAC-based ACL
IPv4/IPv6 IP-based ACE/MAC-based ACE
Security IP-MAC port binding
MAC filtering
Static MAC address
DHCP Relay and DHCP Option 82
STP BPDU guard, BPDU filtering and BPDU forwarding
DoS attack prevention
ARP inspection
IP source guard
Storm control support
   Broadcast / Multicast / Unicast
AAA Built-in RADIUS client to cooperate with RADIUS server
Network Access Control IEEE 802.1X port-based authentication
RADIUS/TACACS+ user access authentication
Management Functions
Basic Management Interfaces Web browser; Telnet; SNMP v1, v2c
Secure Management Interfaces SSHv2, TLS v1.1/1.2, SNMPv3
System Management Firmware upgrade by HTTP protocol through Ethernet network
Configuration upload/download through HTTP
LLDP protocol
SNTP
PLANET Smart Discovery Utility
PLANET UNI-NMS (Universal Network Management)
PLANET CloudViewer app
Event Management Remote Syslog
System log
Environments & Standards
Operating Temperature -40 ~ 75 degrees C
Storage Temperature -40 ~ 85 degrees C
Humidity 5 ~ 95% (non-condensing)
Regulatory Compliance FCC Part 15 Class A, CE
Stability Testing IEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration)

Data sheet Planet IGS-4215-8T2S


Planet IGS-4215-8T2S
Industrial L2/L4 8-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Switch

Physical Port

  • 8-port 10/100/1000BASE-T RJ45 with auto MDI/MDI-X function
  • 2-port 100/1000BASE-X SFP transceiver type auto detection

Industrial Case and Installation

  • Dual power input, redundant power with reverse polarity protection
    • DC 9 to 48V input or AC 24V input
    • Active-active redundant power failure protection
    • Backup of catastrophic power failure on one supply
    • Fault tolerance and resilience
  • IP30 metal case
  • DIN-rail and wall-mount designs
  • Supports ESD 6KV DC Ethernet protection
  • Supports -40 to 75 degrees C operating temperature
  • Free fall, shock-proof and vibration-proof for industries

Switching

  • Features Store-and-Forward mode with wire-speed filtering and forwarding rates
  • IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
  • 8K MAC address table size
  • 9K jumbo frame
  • Automatic address learning and address aging
  • Supports CSMA/CD protocol

Layer 2 Features

  • Supports VLAN
    • IEEE 802.1Q tagged VLAN
    • Up to 256 VLAN groups, out of 4096 VLAN IDs
    • Provider bridging (VLAN Q-in-Q, IEEE 802.1ad) support
    • Private VLAN (Protected port)
    • Protocol-based VLAN
    • MAC-based VLAN
    • Voice VLAN
    • GVRP (GARP VLAN Registration Protocol)
  • Supports Spanning Tree Protocol
    • IEEE 802.1D Spanning Tree Protocol (STP)
    • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
    • IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
    • BPDU Guard
  • Supports Link Aggregation
    • IEEE 802.3ad Link Aggregation Control Protocol (LACP)
    • Cisco ether-channel (static trunk)
    • Up to 5 trunk groups
    • Up to 10 ports per trunk group with 20Gbps bandwidth
  • Provides port mirror (many-to-1)
  • IPv6 MAC/VLAN/Multicast Address Table
  • Loop protection to avoid broadcast loops
  • Supports ERPS (Ethernet Ring Protection Switching)
  • Link Layer Discovery Protocol (LLDP)

Quality of Service

  • Ingress/Egress Rate Limit per port bandwidth control
  • Supports 8 priority queues on all switch ports
  • Traffic classification
    • IEEE 802.1p CoS
    • IP TOS/DSCP/IP precedence of IPv4/IPv6 packets
    • IP TCP/UDP port number
    • Typical network application
  • Strict priority and Weighted Round Robin (WRR) CoS policies
  • Supports QoS and In/Out bandwidth control on each port
  • Traffic-policing on the switch port
  • DSCP remarking

Multicast

  • Supports IPv4 IGMP snooping v1, v2, v3
  • Supports IPv6 MLD snooping v1, v2
  • Querier mode support
  • IGMP snooping port filtering
  • MLD snooping port filtering

Security

  • Storm Control support
    • Broadcast/Multicast/Unicast
  • Authentication
    • IEEE 802.1X port-based network access authentication
    • Built-in RADIUS client to cooperate with the RADIUS servers
    • DHCP Relay and DHCP Option 82
    • RADIUS/TACACS+ users access authentication
  • Access Control List
    • IPv4/IPv6 IP-based ACL
    • IPv4/IPv6 IP-based ACE
    • MAC-based ACL
    • MAC-based ACE
  • MAC Security
    • Static MAC
    • MAC filtering
  • Port security for source MAC address entries filtering
  • DHCP snooping to filter distrusted DHCP messages
  • Dynamic ARP inspection discards ARP packets with invalid MAC address to IP address binding
  • IP source guard prevents IP spoofing attacks
  • IP address access management to prevent unauthorized intruder

Management

  • IPv4 and IPv6 dual stack management
  • Switch Management Interface
    • IPv4/IPv6 Web switch management
    • Console and telnet Command Line Interface
    • SNMP v1, v2c, v3
    • SSHv2, TLSv1.2 secure access
  • IPv6 IP address/NTP/DNS management
  • Built-in Trivial File Transfer Protocol (TFTP) client
  • Static and DHCP for IP address assignment
  • System Maintenance
    • Firmware upload/download via HTTP/TFTP
    • Hardware reset button for system reboot or reset to factory default
    • Dual images
  • User Privilege levels control
  • Network Time Protocol (NTP)
  • Link Layer Discovery Protocol (LLDP) and LLDP-MED
  • Syslog remote alarm
  • SNMP Management
    • SNMP trap for interface link up and link down notification
    • Four RMON groups (history, statistics, alarms and events)
  • PLANET Smart Discovery Utility for deployment management
  • PLANET UNI-NMS (Universal Network Management) and Smart Discovery Utility for deployment management
  • Network diagnostic
    • SFP-DDM (Digital Diagnostic Monitor)
    • Cable diagnostic technology provides the mechanism to detect and report potential cabling issues
    • ICMPv6 / ICMPv4 remote pin
