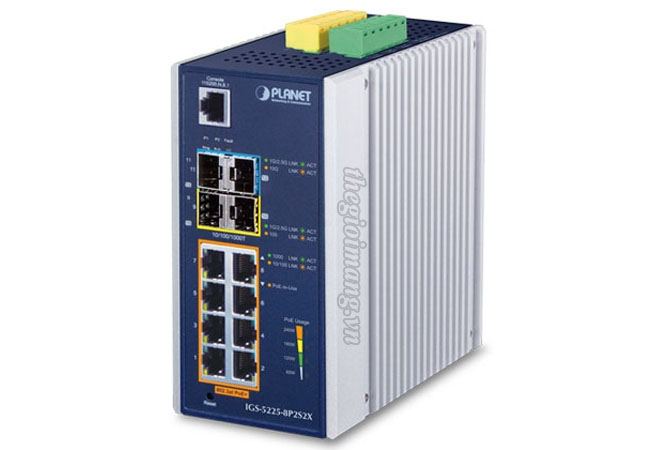

Thiết bị chuyển mạch Công nghiệp Planet IGS-5225-8P2S2X
| Model | IGS-5225-8P2S2X |
|---|---|
| Hardware Specifications | |
| Hardware Version | 3 |
| Copper Ports | 8 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| SFP/mini-GBIC Slots | 2 x 1000BASE-SX/LX/BX SFP interfaces (Port-9 and Port-10) Compatible with 100BASE-FX and 2500BASE-X SFP |
| SFP+ Slots | 2 x 10GbBASE-SR/LR SFP+ interfaces (Port-11 and Port-12) Compatible with 1000BASE-SX/LX/BX and 2500BASE-X SFP transceiver |
| PoE Injector Port | 8 ports with 802.3at/af PoE injector function with Port-1 to Port-8 |
| Console | 1 x RJ45-to-RS232 serial port (115200, 8, N, 1) |
| Reset | < 5 sec: System reboot > 5 sec: Factory default |
| ESD Protection | 6KV DC |
| Enclosure | IP30 aluminum case |
| Installation | DIN rail kit and wall-mount kit |

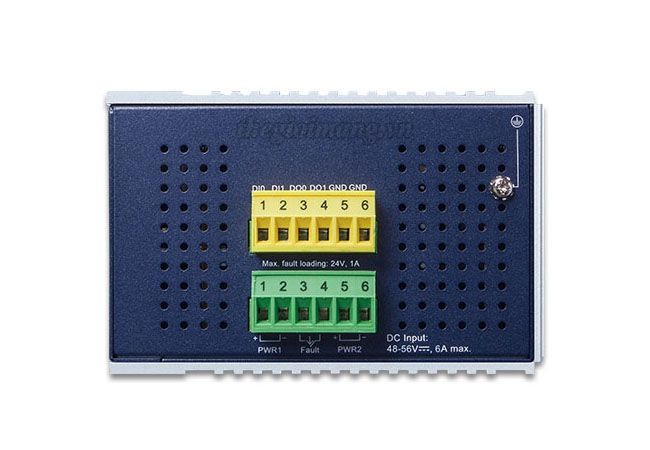

| Connector | Removable 6-pin terminal block for power input Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2 Removable 6-pin terminal block for DI/DO interface Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND |
| Alarm | One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC |
| 2 Digital Input (DI) | Level 0: -24V~2.1V (±0.1V) Level 1: 2.1V~24V (±0.1V) Input load to 24V DC, 10mA max. |
| 2 Digital Output (DO) | Open collector to 24V DC, 100mA max. |
| Dimensions (W x D x H) | 72 x 107 x 152 mm |
| Weight | 1684g |
| Power Requirements | Dual 48~56V DC (>51V DC for PoE+ output recommended) |
| Power Consumption | Max. 11.1 watts/37.87BTU (Power on without any connection) Max. 306 watts/1043.46BTU (Full loading with PoE function) |
| Switching | |
| Switch Architecture | Store-and-Foward |
| Switch Fabric | 66Gbps/non-blocking |
| Throughput (packet per second) | 49.107Mpps@ 64 bytes packet |
| Address Table | 32K entries, automatic source address learning and aging |
| Shared Data Buffer | 16Mbits |
| Jumbo Frame | 10Kbytes |
| Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Power Supply Type | End-span |
| PoE Power Output | IEEE 802.3af Standard - Per port 48V~51V DC (depending on the power supply), max. 15.4 watts IEEE 802.3at Standard - Per port 51V~56V DC (depending on the power supply), max. 36 watts |
| Power Pin Assignment | 1/2 (+), 3/6 (-) |
| PoE Power Budget | Dual power input: 240W maximum (depending on power input) |
| Environments | |
| Operating Temperature | -40 ~ 75 degrees C |
| Storage Temperature | -40 ~ 85 degrees C |
| Humidity | 5 ~ 95% (non-condensing) |
| Data sheet Planet IGS-5225-8P2S2X | ||
|---|---|---|
 |
||
| Layer 3 Functions | ||
| IP Interfaces | Max. 128 VLAN interfaces | |
| Routing Table | Max. 128 routing entries | |
| Routing Protocols | IPv4 hardware static routing IPv6 hardware static routing IPv4 OSPFv2 dynamic routing |
|
| Layer 2 Functions | ||
| Port Configuration | Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable/enable |
|
| Port Status | Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status | |
| Port Mirroring | TX / RX / both Many-to-1 monitor |
|
| VLAN | IEEE 802.1Q tag-based VLAN IEEE 802.1ad Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN MVR (Multicast VLAN Registration) GVRP (GARP VLAN Registration Protocol) Up to 4K VLAN groups, out of 4094 VLAN IDs |
|
| Link Aggregation | IEEE 802.3ad LACP/Static Trunk Supports 6 trunk group with 4 ports per trunk |
|
| QoS | Traffic classification based, strict priority and WRR 8-level priority for switching - Port number - 802.1p priority - 802.1Q VLAN tag - DSCP/TOS field in IP packet |
|
| IGMP Snooping | IPv4 IGMP (v1/v2/v3) snooping, up to 255 multicast groups IPv4 IGMP querier mode support |
|
| MLD Snooping | IPv6 MLD (v1/v2) snooping, up to 255 multicast groups IPv6 MLD querier mode support |
|
| Access Control List | IP-based ACL/MAC-based ACL Up to 512 entries |
|
| Bandwidth Control | Per port bandwidth control - Ingress: 500Kbps~13000Mbps - Egress: 500Kbps~13000Mbps |
|
| Management | ||
| Basic Management Interfaces | Console; Telnet; Web browser; SNMP v1, v2c | |
| Secure Management Interfaces | SSHv2, TLSv1.2, SSL, SNMP v3 | |
| Standards Conformance | ||
| Regulatory Compliance | FCC Part 15 Class A, CE | |
| Stability Testing | IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration |
|
