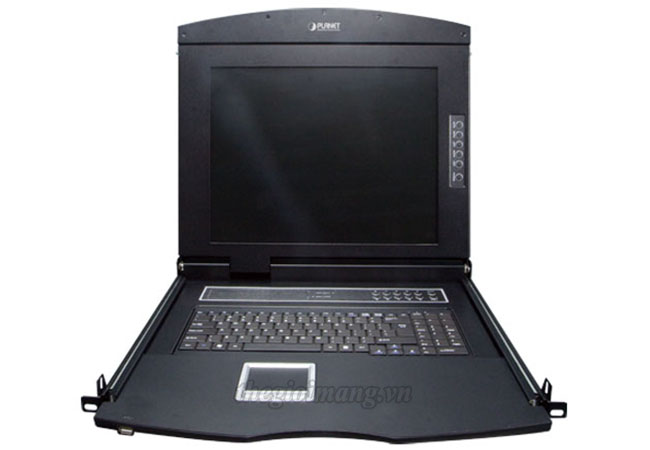

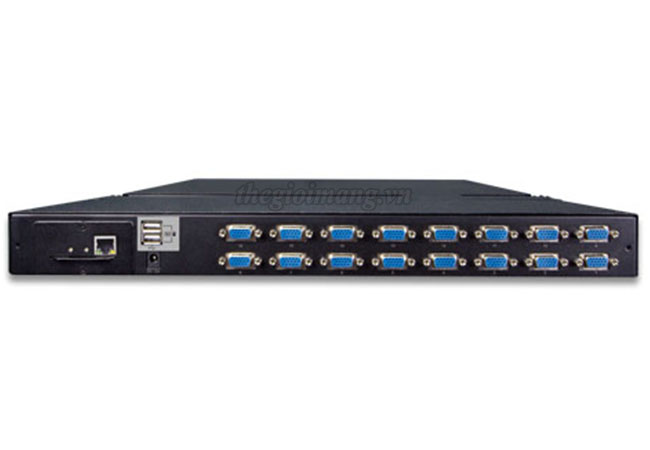

Planet IKVM-210-16M

Planet IKVM-210-16M: 17" 16-Port Combo VGA LCD IP KVM Switch

  • Integrated 17" LCD monitor and keyboard/touchpad module within 1U chassis
  • Controls up to 256 PCs (Standalone: 16 PCs)
  • Remotely control PC via TCP/IP and a built-in 10/100/1000Mbps Ethernet port
  • Multiplatform support -- Windows, Linux and Sun.
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Thiết bị Switch IP KVM Planet IKVM-210-16M

Product IKVM-210-16M
Hardware
Touch Pad 1
Number of Ports 16 D-sub ports (15-pin)
Maximum 256 by 2-tier star-type cascading (KVM-210-16 x 16)
PC Ports
Keyboard: PS/2 female + USB Type A female
Mouse: PS/2 female + USB Type A female
Video: 16 D-sub ports (15 female)
Port Select Panel
Number Key: 10
Reset: 1
Enter: 1
LED: 16 (Red)
Segment display: 1
LCD Panel
Monitor: 17" SXGA Color TFT-LCD
Video Resolution: 1280 x 1024
Pixel Pitch 0.297 x 0.297 mm
Support Color: 16.2 M / 262K colors
Contracst Ratio: 1000:1
Back light: LED
Keyboard 100
Video Resolution Local side: 1280 x 1024 (max)
Remote side: 1920 x 1080 (max)
Remote Console 1 RJ45 port for 10/100/1000BASE-T
Console USB Hub Ports 3 x USB 2.0 Type A female
LCD Button 6
Housing Metal
Dimensions (W x D x H) 445 x 611 x 44.5 mm
Weight 17.52kg
Power Requirement 12V DC, 4A
Installation 1U rack-mountable
Management
PC Selection Port select button
Hotkeys on keyboard
OSD (On screen display)
Client Software IPKVM Software
Supported Protocol TCP, IP, HTTP
Scan Interval 5~60 seconds
Security User password and super password
DES, AES and 3DES
Environment & Certification
Operating Temperature 0 ~ 50 degrees C
Operating Humidity 0 ~ 80%



Tùy chọn Phụ kiện cho IKVM-210-16M
KVM-KC1-1.8 1.8M USB KVM Cable with built-in PS2 to USB Converter
KVM-KC1-3 3M USB KVM Cable with built-in PS2 to USB Converter
KVM-KC1-5 5M USB KVM Cable with built-in PS2 to USB Converter

Data sheet Planet IKVM-210-16M

Remote Management via Network

With PLANET IKVM-210-16M, network administrators can control a server room locally or remotely through Internet. No additional software or license fee is needed; multiple users can securely access remote server by using a standard web browser to create an HTTP connection.



Cascaded Operation

Easy to install, each IKVM-210-16M can control up to 16 computers/servers. Moreover, a maximum of eight KVM switches can be cascaded to enable to control up to 256 servers.
