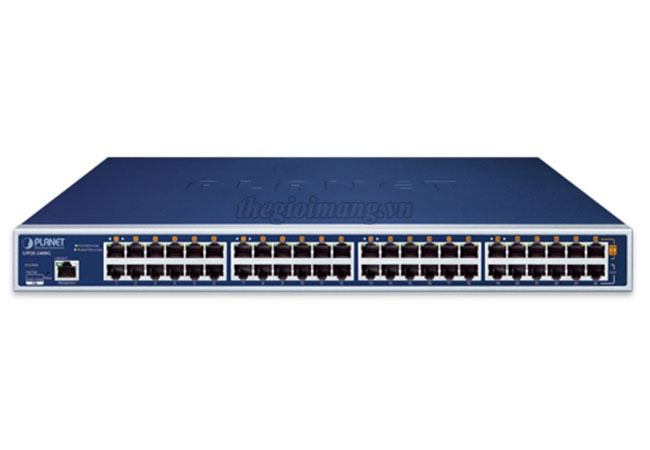

Planet UPOE-2400G : 24-Port Gigabit 802.3bt PoE++ Managed Injector Hub (800 watts)
Thiết bị chuyển mạch PoE Planet UPOE-2400G
| Model | UPOE-2400G |
|---|---|
| Hardware | |
| Interface | Management Port：1 x RJ45; 10/100/1000BASE-T, auto-negotiation, auto-MDI/MDIX “Data”Input Ports：24 x RJ45 “Data + Power” Output Ports：24 x RJ45 |
| Data Rate | 10M/100M/1000Mbps |
| Power Requirements | 100-240V AC, 50/60 Hz, 15A |
| Power Consumption | 968 watts/3302 BTU |
| Ventilation | Smart Fan x 3 |
| Dimensions (W x D x H) | 440 x 300 x 44.5 mm |
| Weight | 5.4kg |
| Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
| Network Cable | 10BASE-T: 4-pair UTP Cat5 up to 100m (328ft) 100BASE-TX: 4-pair UTP Cat5 up to 100m (328ft) 1000BASE-T: 4-pair UTP Cat5e/6 up to 100m (328ft) EIA/TIA- 568 100-ohm STP (100m) |
| Power over Ethernet | |
| PoE Standard | 802.3bt PoE++ PSE Backward compatible with IEEE 802.3at PoE PSE |
| PoE Power Supply Mode | 802.3bt End-span Mid-span |
| PoE Power Output | Per port 54V DC 802.3bt mode: maximum 95 watts End-span mode: maximum 36 watts Mid-span mode: maximum 36 watts |
| Power Pin Assignment | 802.3bt: 1/2(-), 3/6(+), 4/5(+), 7/8(-) End-span: 1/2(-), 3/6(+) Mid-span: 4/5(+), 7/8(-) |
| PoE PD Type | Standard Legacy Force |
| PoE Power Budget | 800 watts |
| PoE Management | Power limit by consumption and classification PoE function enable/disable Per port PoE function enable/disable Per port PoE power schedule Power feeding priority PD alive check PD classification detection Current per port usage and status Total power consumption |
| Security | |
| Firewall | SPI Firewall Protection |
| Filtering | MAC Filtering |
| Certificates | System CA Certificate for HTTPS |
| Management Functions | |
| Management Interface | HTTP/HTTPs Web user interface |
| Secure Management Interface | TLSv1.2, TLSv1.3 |
| Management Feature | IPv4 and IPv6 dual stack management Web interface for remote management PLANET DDNS and Easy DDNS Supports Network Time Protocol (NTP) System Maintenance Firmware upload via HTTP Configuration upload/download via HTTP Reboot button for system reboot Reset button for system reset to factory default PLANET Smart Discovery utility PLANET NMS system and CloudViewer for deployment management Scheduled System Power RebootingNetwork Diagnostic ICMPv6/ICMPv4 Remote Ping Trace Route |
| SNMP Management | SNMP v1, v2c and v3 for system status monitoring SNMP trap for alarm notification of events |
| Event Management | Local system event log Remote syslog |
| Environment & Standards | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 90% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 90% (non-condensing) |
| Regulatory Compliance | FCC Part 15 Class A, CE |
